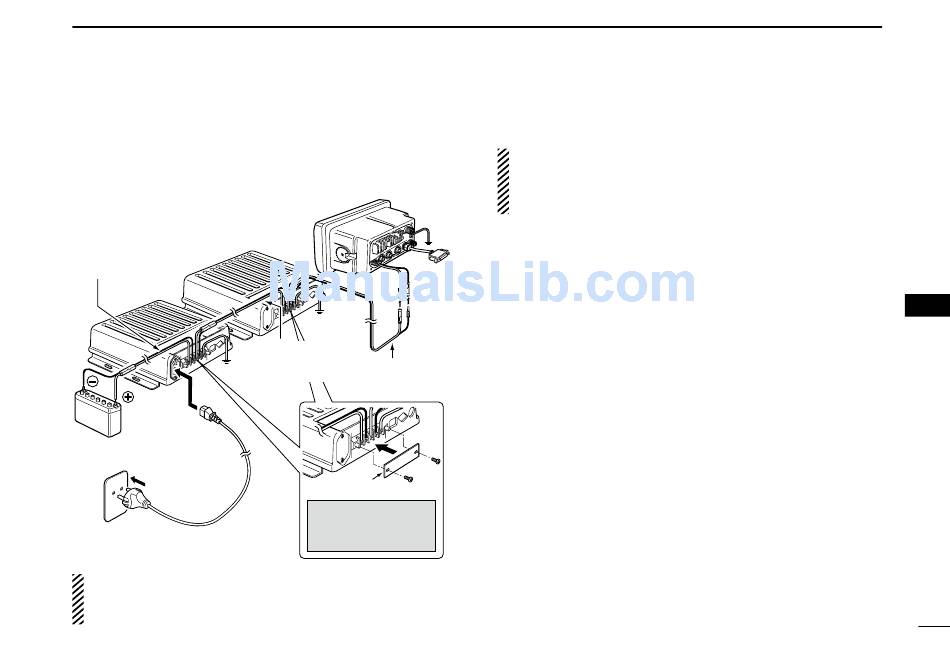

D Connecting to the AC outlet through the PS-250

and optional PS-240

DC power cable
PS-250
(Purchase
separately)
PS-240
GND
12 V or 24 V
battery
AC power cable
(Supplied with
the PS-240)
To AC outlet
When AC voltage is stopped applying, the PS-240
switches to the DC operation, then AC voltage is applied
again, it switches back to AC operation automatically.
IC-GM651
GND
GND
DC power cable
(Supplied with
DC power cable
the PS-250)
(Supplied with
the IC-GM651)
Terminal guard
Keep the terminal guard
attached after connect-
ing cables.
CONNECTIONS AND MAINTENANCE
CAUTION: NEVER short the DC power terminals of the
PS-250/PS-240 when connecting a DC power cable. Oth-
erwise there is danger of electric shock and/or equipment
damage.
