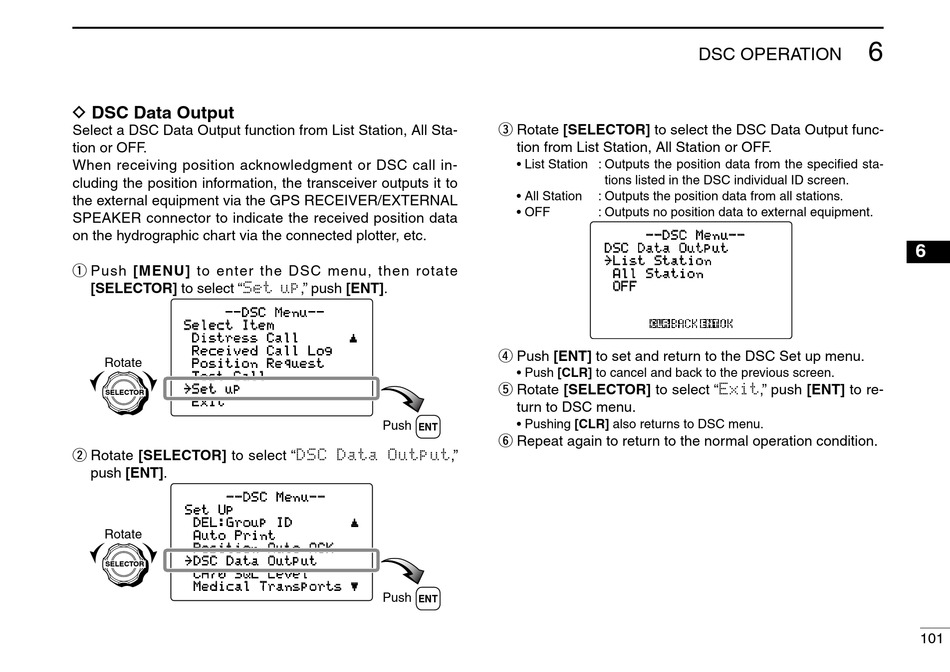

D DSC Data Output

Select a DSC Data Output function from List Station, All Sta-
tion or OFF.
When receiving position acknowledgment or DSC call in-
cluding the position information, the transceiver outputs it to
the external equipment via the GPS RECEIVER/EXTERNAL
SPEAKER connector to indicate the received position data
on the hydrographic chart via the connected plotter, etc.
q Push [MENU] to enter the DSC menu, then rotate
[SELECTOR] to select "Set up," push [ENT].
--DSC Menu--
Select Item
Distress Call
Received Call Log
Rotate
Position Request
Test Call
˘Set up
SELECTOR
Exit
w Rotate [SELECTOR] to select "DSC Data Output,"
push [ENT].
--DSC Menu--
Set Up
DEL:Group ID
Rotate
Auto Print
Position Auto ACK
˘DSC Data Output
SELECTOR
CH70 SQL Level
Medical Transports ≥
e Rotate [SELECTOR] to select the DSC Data Output func-
tion from List Station, All Station or OFF.
• List Station : Outputs the position data from the specified sta-
• All Station
• OFF
≤
r Push [ENT] to set and return to the DSC Set up menu.
• Push [CLR] to cancel and back to the previous screen.
t Rotate [SELECTOR] to select "Exit," push [ENT] to re-
turn to DSC menu.
• Pushing [CLR] also returns to DSC menu.
Push
y Repeat again to return to the normal operation condition.
≤
Push
DSC OPERATION
tions listed in the DSC individual ID screen.
: Outputs the position data from all stations.
: Outputs no position data to external equipment.
--DSC Menu--
DSC Data Output
˘List Station
All Station
OFF
