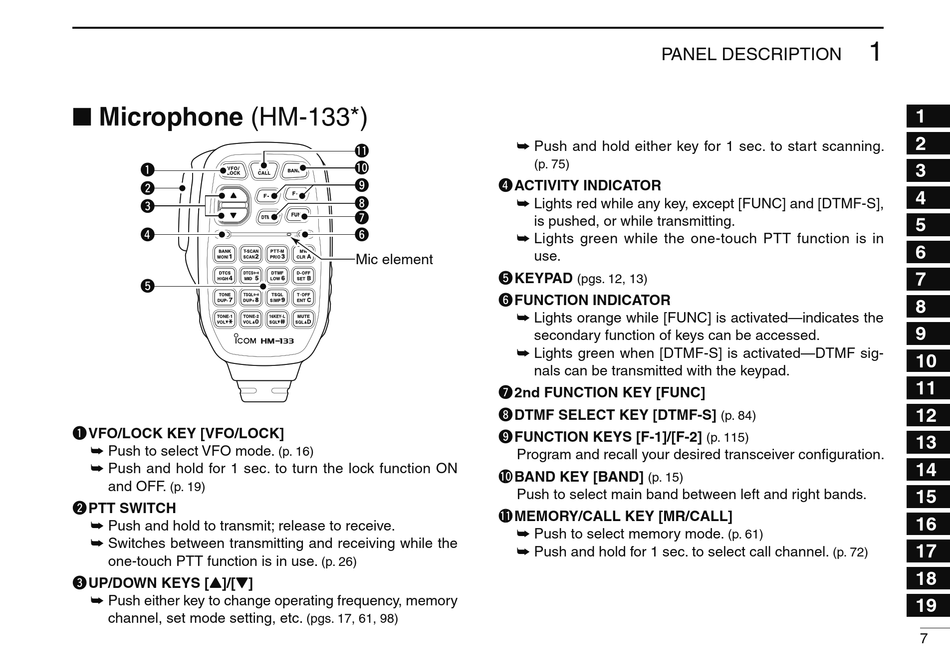

Microphone (HM-133*)

q
w
e
r
t
q VFO/LOCK KEY [VFO/LOCK]
Push to select VFO mode.
Push and hold for 1 sec. to turn the lock function ON
and OFF.
(p. 19)
w PTT SWITCH
Push and hold to transmit; release to receive.
Switches between transmitting and receiving while the
one-touch PTT function is in use.
e UP/DOWN KEYS [Y]/[Z]
Push either key to change operating frequency, memory
channel, set mode setting, etc.
!1
!0
o
i
u
y
Mic element
(p. 16)
(p. 26)
(pgs. 17, 61, 98)
PANEL DESCRIPTION
Push and hold either key for 1 sec. to start scanning.
(p. 75)
r ACTIVITY INDICATOR
Lights red while any key, except [FUNC] and [DTMF-S],
is pushed, or while transmitting.
Lights green while the one-touch PTT function is in
use.
t KEYPAD
(pgs. 12, 13)
y FUNCTION INDICATOR
Lights orange while [FUNC] is activated—indicates the
secondary function of keys can be accessed.
Lights green when [DTMF-S] is activated—DTMF sig-
nals can be transmitted with the keypad.
u 2nd FUNCTION KEY [FUNC]
i DTMF SELECT KEY [DTMF-S]
o FUNCTION KEYS [F-1]/[F-2]
Program and recall your desired transceiver configuration.
!0 BAND KEY [BAND]
(p. 15)
Push to select main band between left and right bands.
!1 MEMORY/CALL KEY [MR/CALL]
Push to select memory mode.
Push and hold for 1 sec. to select call channel.
1
(p. 84)
(p. 115)
(p. 61)
(p. 72)
