4.23.2 Specifications

Table 4-48 RPU2 Specifications
Item
Fixed interface
Processor
Boot ROM
NVRAM
DDR SDRAM
Flash
Note:
SDRAM is the memory where the communication data between the system and CPU
is stored.
NVRAM is the place where the alarm records are stored.

4.23.3 LED and button

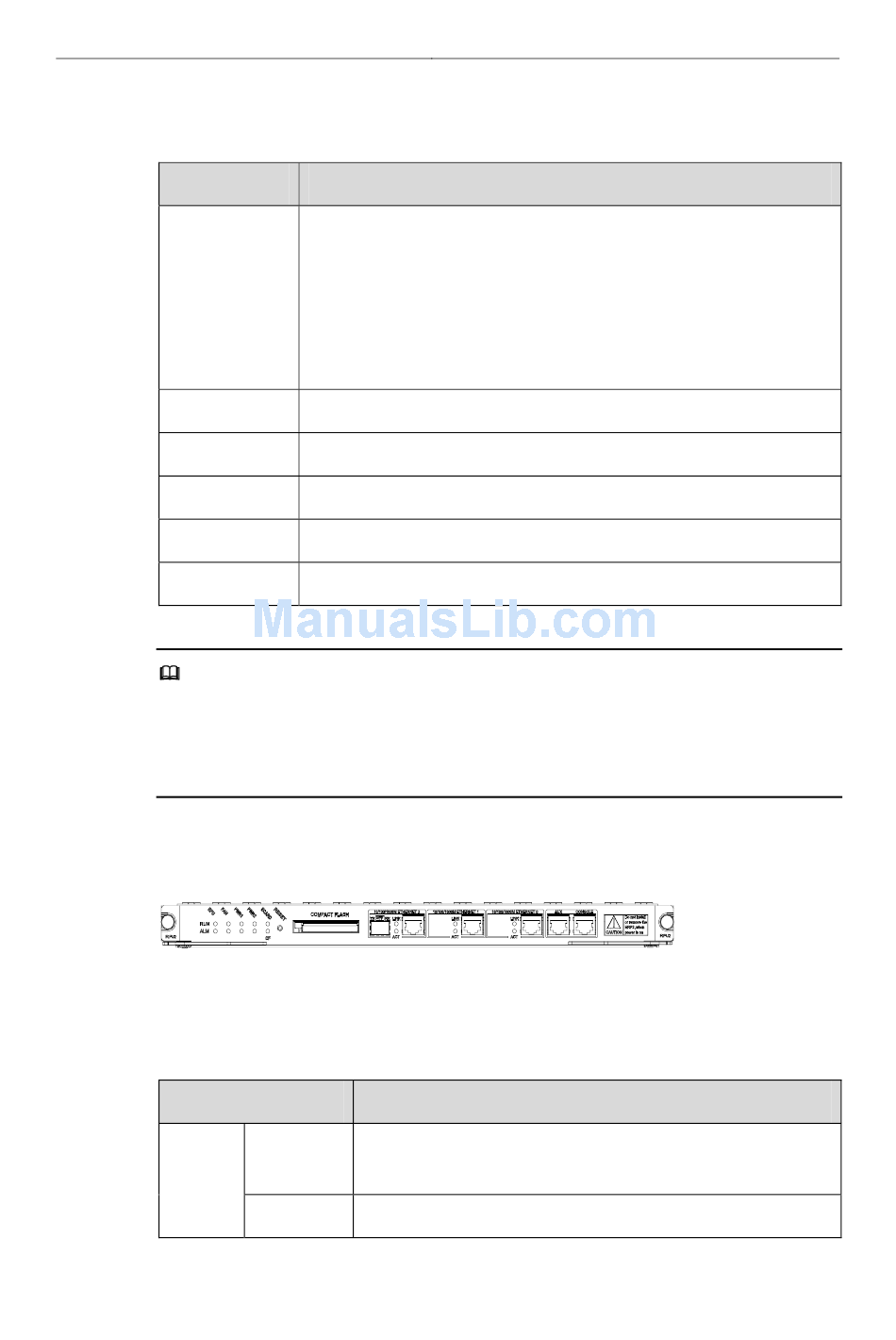

Figure 4-68 Front panel of RPU2
Table 4-49 RPU2 LEDs and the button
LED and button
RUN
(green)
2 x 10/100/1000 Mbps electrical Ethernet interfaces
1 x Combo Port (Combo port is 10/100/1000 Mbps or SFP Interface)
1 AUX port
1 console port
CF card slot (the CF card is optional)
700 MHz
512 KB
512 KB
512 MB
64 MB
System operating LED. Blinking means CPU is in normal operation;
RPU
steady ON or OFF means CPU has failed.
FAN Steady ON means the FAN module is operating normally.
