3Com Router 5000 and Router 6000 v2.41
Module Guide
ADSL card ADSL card ADSL card ADSL card

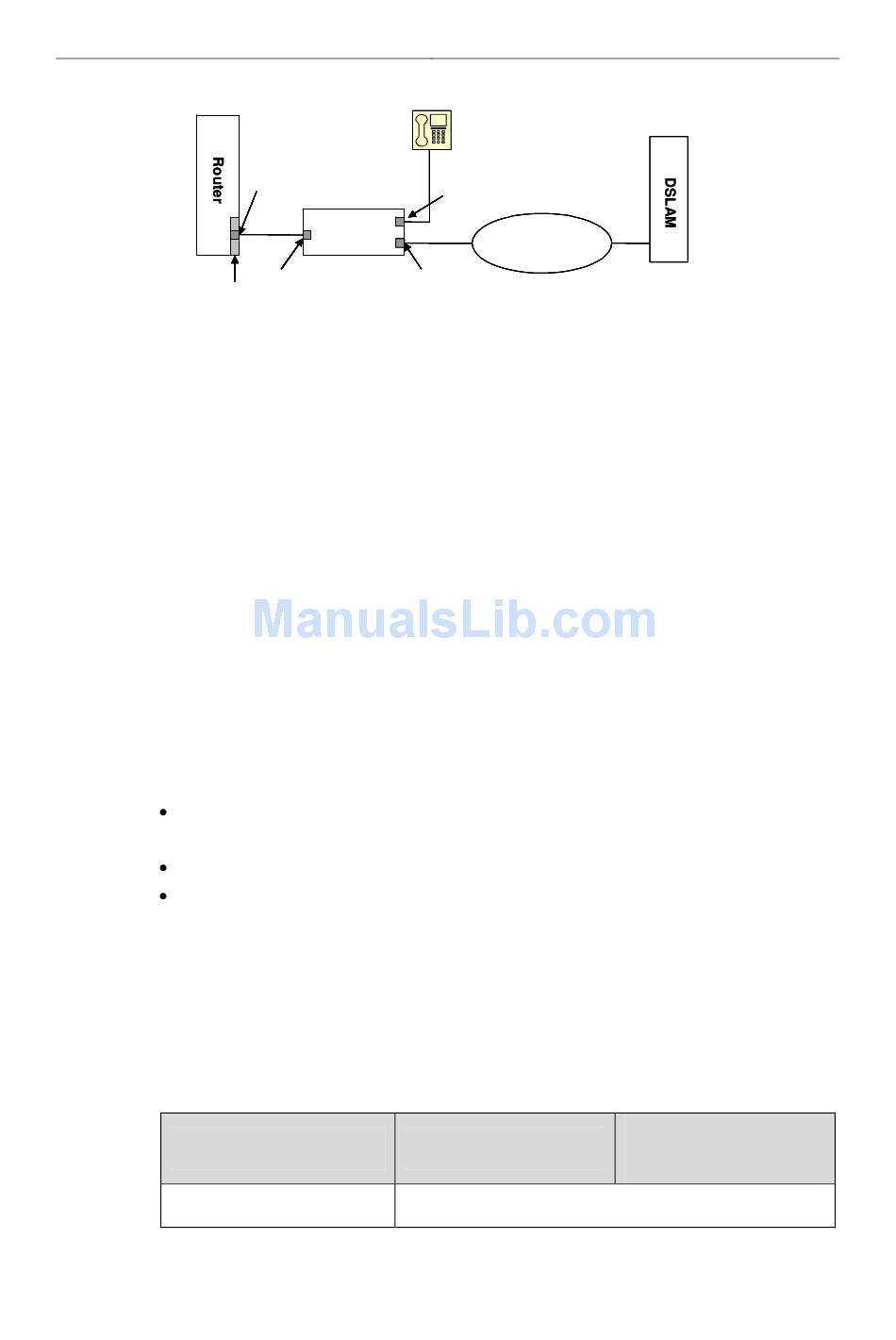

Figure 3-54 Connecting the Router 1-Port ADSL Over POTS MIM

3.12 Router 2-Port ADSL Over POTS MIM

3.12.1 Introduction

Router 2-Port ADSL Over POTS MIM, the 2-port ADSL over PSTN interface card,
allows a LAN subscriber to connect to the digital subscriber's loop access multiplexer
(DSLAM) at the central office over a regular analog subscriber line or telephone line.
Thus, the subscriber can access the ATM/IP backbone or the Internet to enjoy
services such as high-speed data communication and video on demand (VoD).
ADSL transmits data in the high frequency band above 26 kHz. Therefore, it can
provide services without interfering with the voice service being provided in the low
frequency band (0 to 4 kHz) on the same line. It provides downlink rates in the range
32 kbps to 8 Mbps and uplink rates in the range 32 kbps to 1 Mbps.
The ADSL interface cards provide these functions:
Manual ADSL line activation and deactivation, supporting SAR loopback for
convenient fault isolation.
Interface standards of G. DMT, G. Lite, and T1.413, auto-sensing.
Trellis coding (except for G. Lite) on ADSL interfaces, enhancing stability of ADSL
connections.

3.12.2 Interface Attributes

The following table describes the interface attributes of the Router 2-Port ADSL Over
POTS MIM.
Table 3-30 Interface attributes of the Router 2-Port ADSL Over POTS MIM
Connector
RJ11 interface RJ11 interface RJ11 interface RJ11 interface
Splitter Splitter
Modem interface Modem interface Modem interface Modem interface
Attribute
RJ-11
Multifunctional Interface Modules (Router 5000)
Phone port Phone port Phone port Phone port
PSTN PSTN
Line port Line port Line port Line port
3-50
Chapter 3
Router 2-Port ADSL Over
POTS MIM
