Interface Leds - 3Com 3C13701 Module Manual

3Com Router 5000 and Router 6000 v2.41
Module Guide
Attribute
operating mode
Minimum baud rate
(bps)
Maximum baud rate
(bps)
Cable
Services supported

2.8.3 Interface LEDs

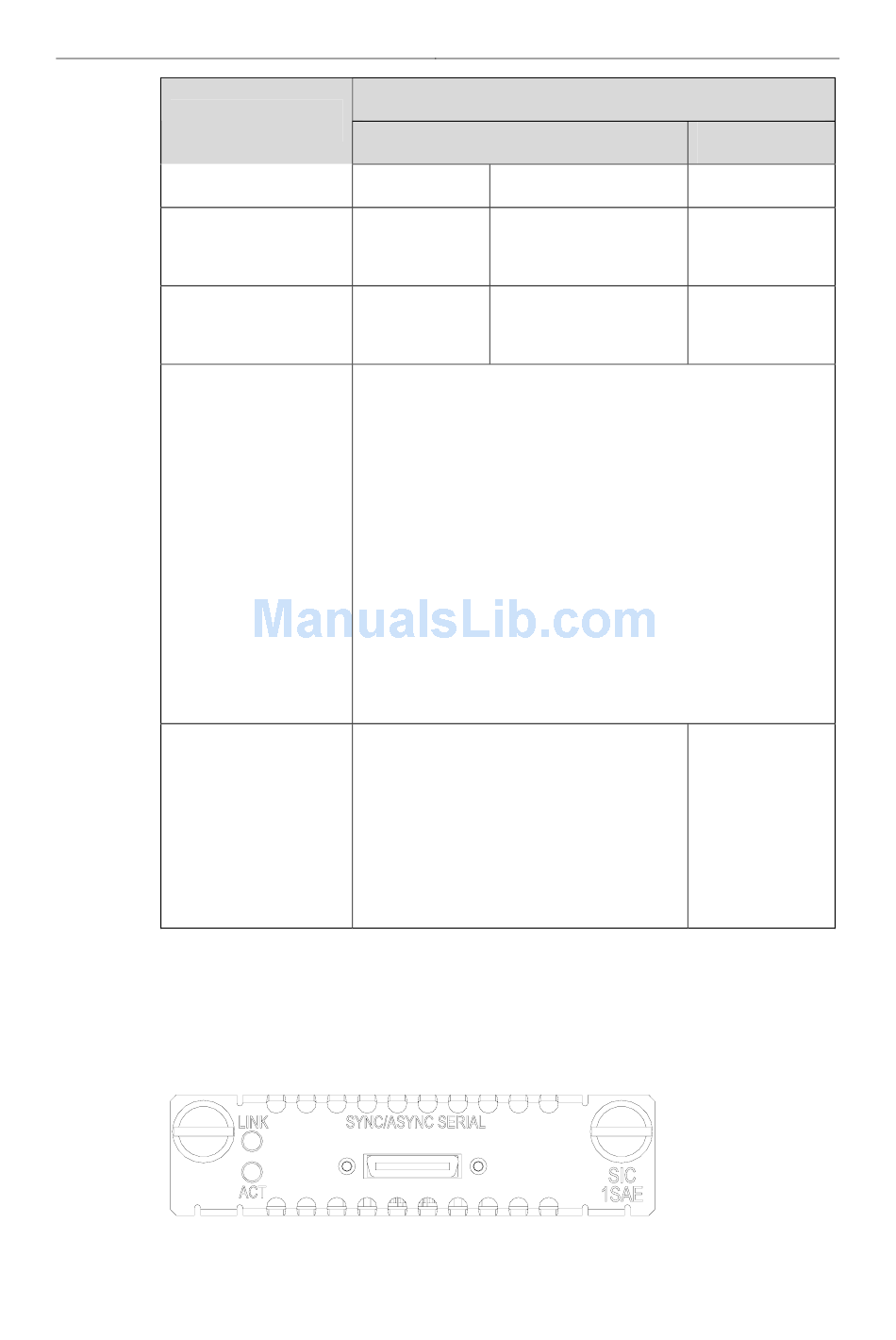

Router 1-Port SAE SIC panel is shown in the following figure:
Figure 2-31 Router 1-Port SAE SIC panel
Synchronous
DTE, DCE DTE, DCE
1200 1200
64 k 2.048 M
V.24 (RS232) DTE cable
V.24 (RS232) DCE cable
V.35 DTE cable
V.35 DCE cable
X.21 DTE cable
X.21 DCE cable
RS449 DTE cable
RS449 DCE cable
RS530 DTE cable
RS530 DCE cable
1) DDN leased line
2) Terminal access service
2-30
Chapter 2 Smart Interface Cards
Description
Asynchronous
300
115.2
1) Dialup through
modems
2) Backup
3) Async leased
line
4) Terminal access
