3Com Router 5000 and Router 6000 v2.41
Module Guide
The following figures show the Router 1-Port 10/100/1000 MIM panels.

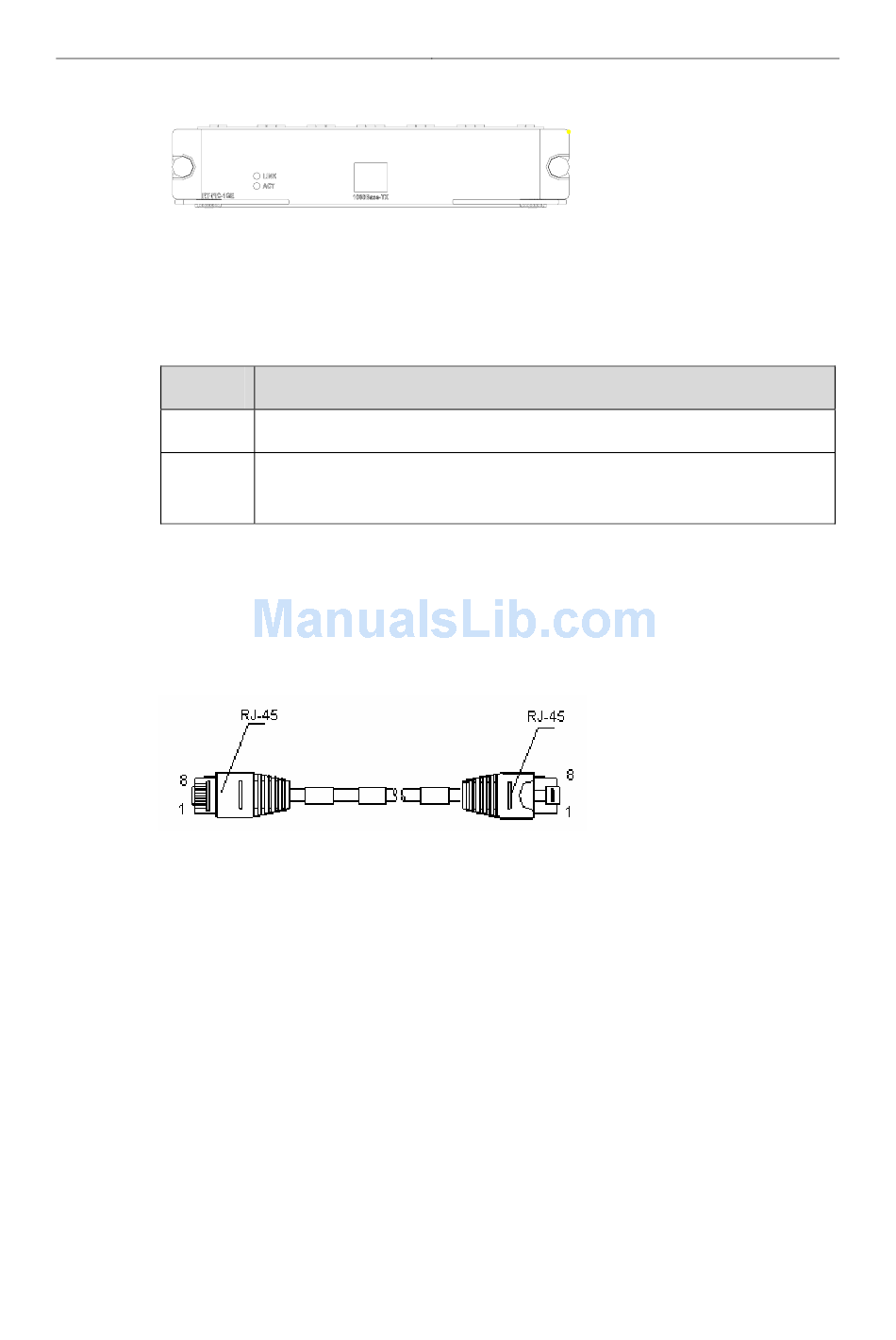

Figure 3-67 Router 1-Port 10/100/1000 MIM panel
The following table describes the LEDs on the Router 1-Port 10/100/1000 MIM panel.
Table 3-43 LEDs on the Router 1-Port 10/100/1000 MIM panel
LED
LINK
ACT

3.18.3 Interface Cable

Router 1-Port 10/100/1000 MIM uses both crossover and straight-through cables for
connection.
Figure 3-68 Ethernet cable

3.18.4 Connecting the Interface Cable

Step 1: Connect one end of the cable to the Ethernet interface on the router and the
other end to another device.
Step 2: Power on the router and check the behavior of the LINK LED on the panel. ON
means a link is present and OFF means no link is present. In the latter case, check the
line status.
OFF means no link is present; ON means a link is present.
OFF means no data is being transmitted or received. Blinking means data is being
transmitted and/or received.
3-65
Multifunctional Interface Modules (Router 5000)
Description
Chapter 3
