Table 4-21 Router 1-Port CT3 FIC interface attributes
Connector
Number of connectors
Interface standard
Interface rate
Cable
Operating mode
Supported service

4.10.3 Panel and Interface LEDs

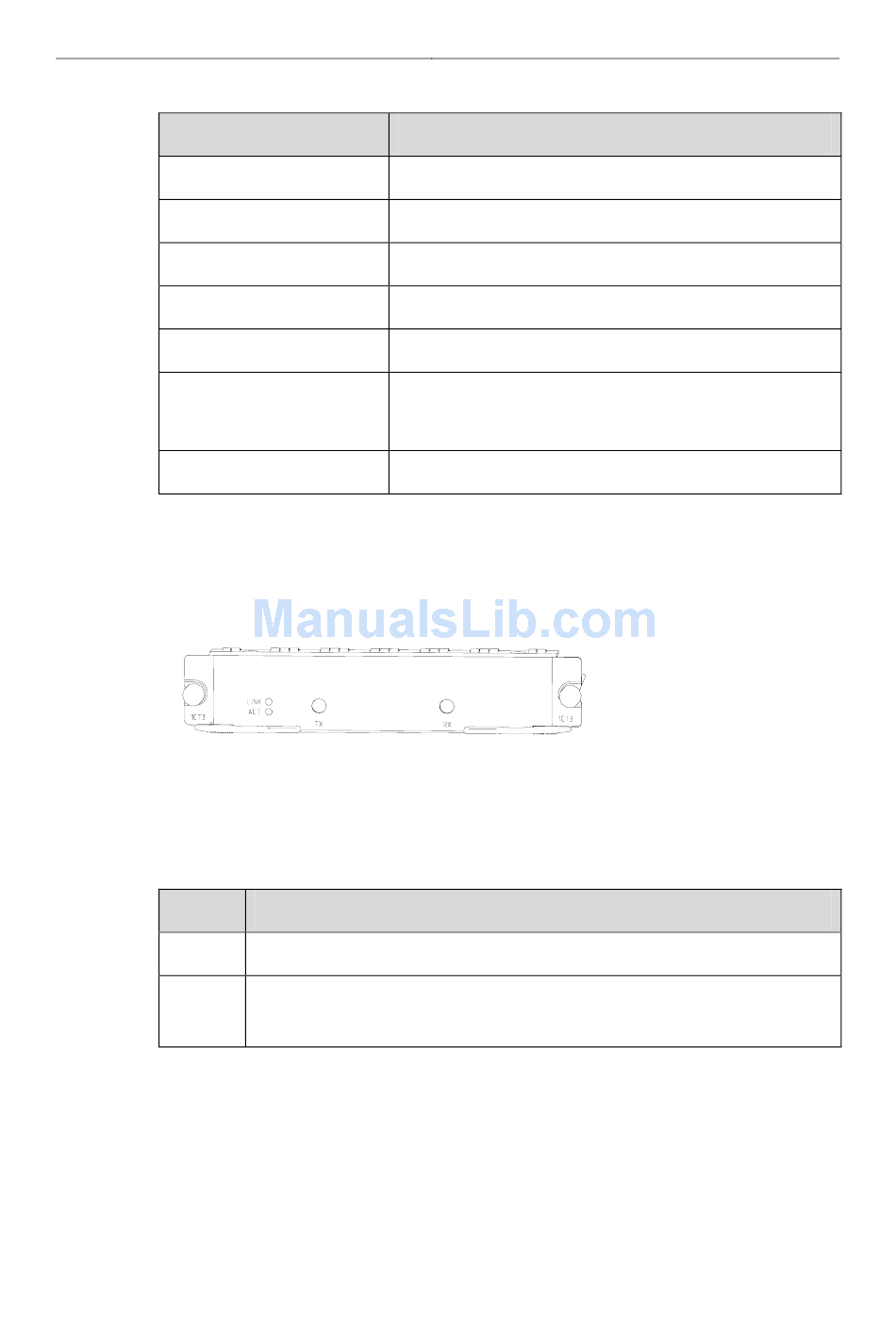

The following figure illustrates an Router 1-Port CT3 FIC panel.
Figure 4-36 Router 1-Port CT3 FIC panel
The following table describes the LEDs on the card panel.
Table 4-22 LEDs on the Router 1-Port CT3 FIC panel
LED
LINK
ACT

4.10.4 Interface Cable

Refer to the section Error! Reference source not found."Error! Reference source
not found.".
The interface cable for the Router 1-Port CT3 FIC is the same as that for the Router
1-Port CE3 FIC and is connected in the same way.
Attribute
SMB
2
G.703, G.704, G.752
44.736 Mbps
T3 cable (75-ohm coaxial cable)
T3
CT3
T3 leased line
OFF means no link is present; ON means a link is present.
OFF means no data is being transmitted or received on the interface; blinking means
data is being transmitted and/or received.
Chapter 4 Flexible Interface Cards (Router 6000)
Description
Description
4-34
