Step 5: Check the status of LINK LED on the Router 1-Port Fractional E1 SIC panel:
ON means the link is connected and OFF means the link is not connected. In the latter
case, check the line.

2.5 Router 1-Port Fractional T1 SIC

2.5.1 Introduction

1-port channelized T1/cT1/PRI compatible interface card supports:
Transmission/Receiving and handling of T1 data streams;
cT1 (channel T1) access;
ISDN PRI function;
Remote loopback and local loopback, facilitating the effective and flexible
debugging.
It is possible to use the card for multiple purposes through different configurations.
Following are the differences between and 1-port Fractional T1 interface card (Router
1-Port Fractional T1 SIC):
FT1 mode of Router 1-Port Fractional T1 SIC can support only one channel
bundle (the rate is n x 56 kbps, n=1-24), while the 24 channels can be grouped
into multiple arbitrary bundles by SIC-TPRI.
Router 1-Port Fractional T1 SIC does not support PRI mode.

2.5.2 Appearance

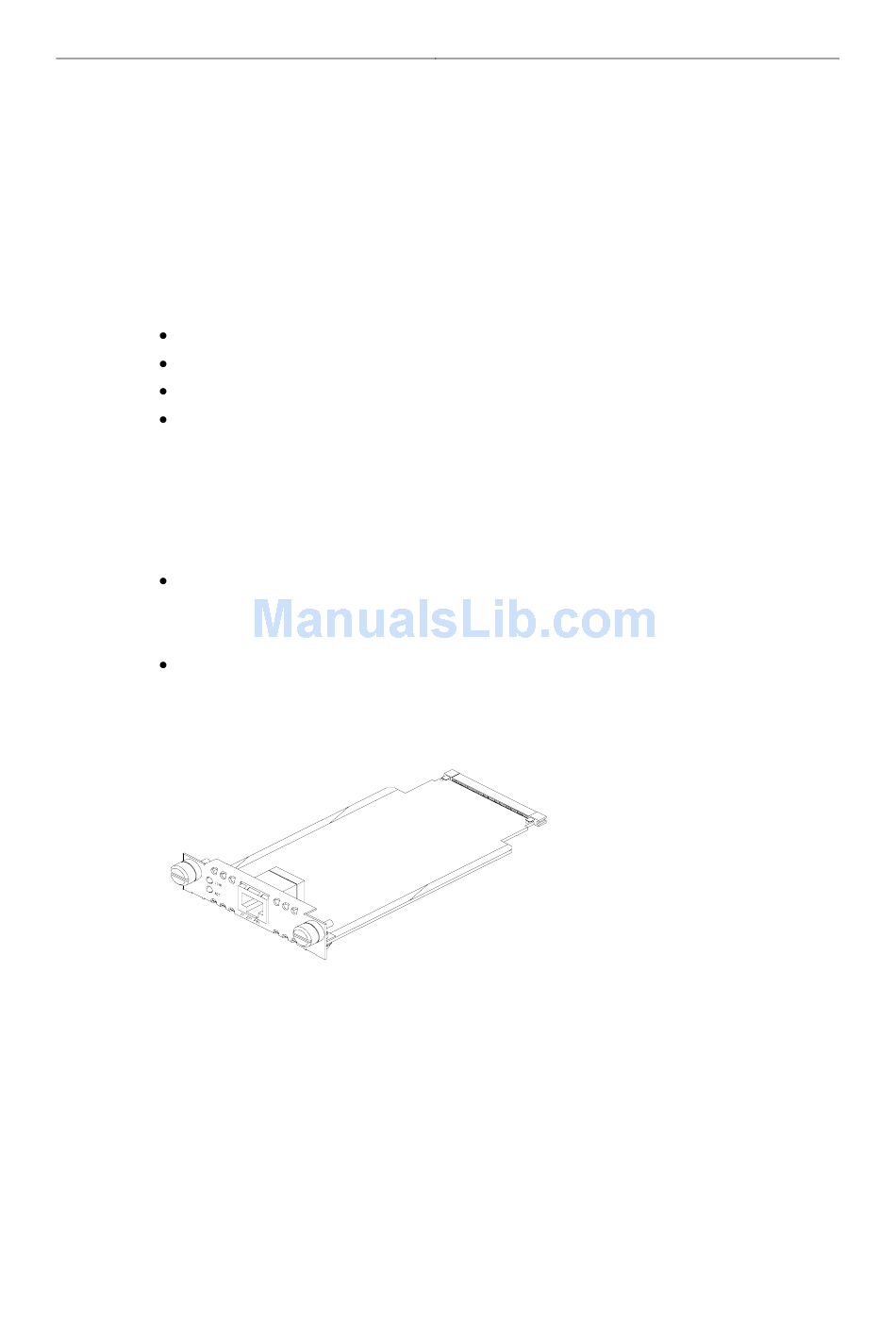

Figure 2-20 Router 1-Port Fractional T1 SIC

2.5.3 Interface Attributes

The interface attributes of Router 1-Port Fractional T1 SIC are given in the following
table:
