3.11.2 Interface Attributes

The following table describes the interface attributes of the Router 1-Port ADSL Over
POTS MIM.
Table 3-28 Interface attributes of the Router 1-Port ADSL Over POTS MIM
Connector
Number of connectors
Interface standard
Interface rate
Cable and the Max. transmission
segment
Supported service

3.11.3 Panel and Interface LED

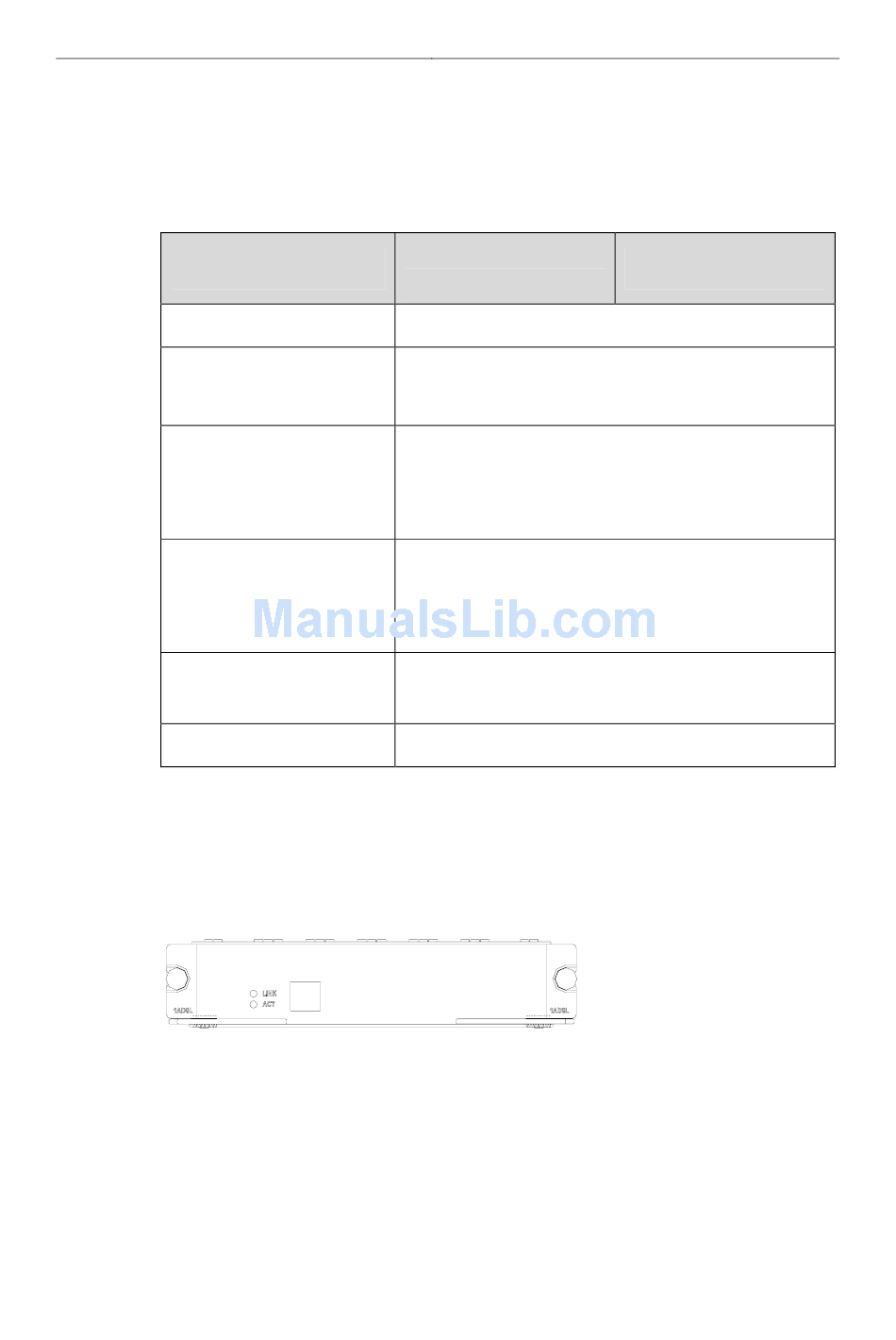

The following figure illustrates the Router 1-Port ADSL Over POTS MIM panel.
Figure 3-53 Router 1-Port ADSL Over POTS MIM panel
The following table describes the LEDs on the card panels.
Attribute
RJ-11
1 (Router 1-Port ADSL Over POTS MIM)
2 ()
ITU-T 992.1 G.DMT
ITU-T 992.2 G.Lite
ANSI T1.413 Issue 2
In ADSL full rate mode (ITU-T 992.1 G.DMT/ANSI T1.413):
8160 kbps (downlink rate)
896 kbps (uplink rate).
In full rate mode, 1.8 km (1.1 mi.) over the telephone cable
( depending on the line quality).
ADSL over the regular telephone line
