3Com Router 5000 and Router 6000 v2.41
Module Guide
Number of connectors
Cable type
Maximum speed
Supported standard
Supported service

2.6.4 Interface LEDs

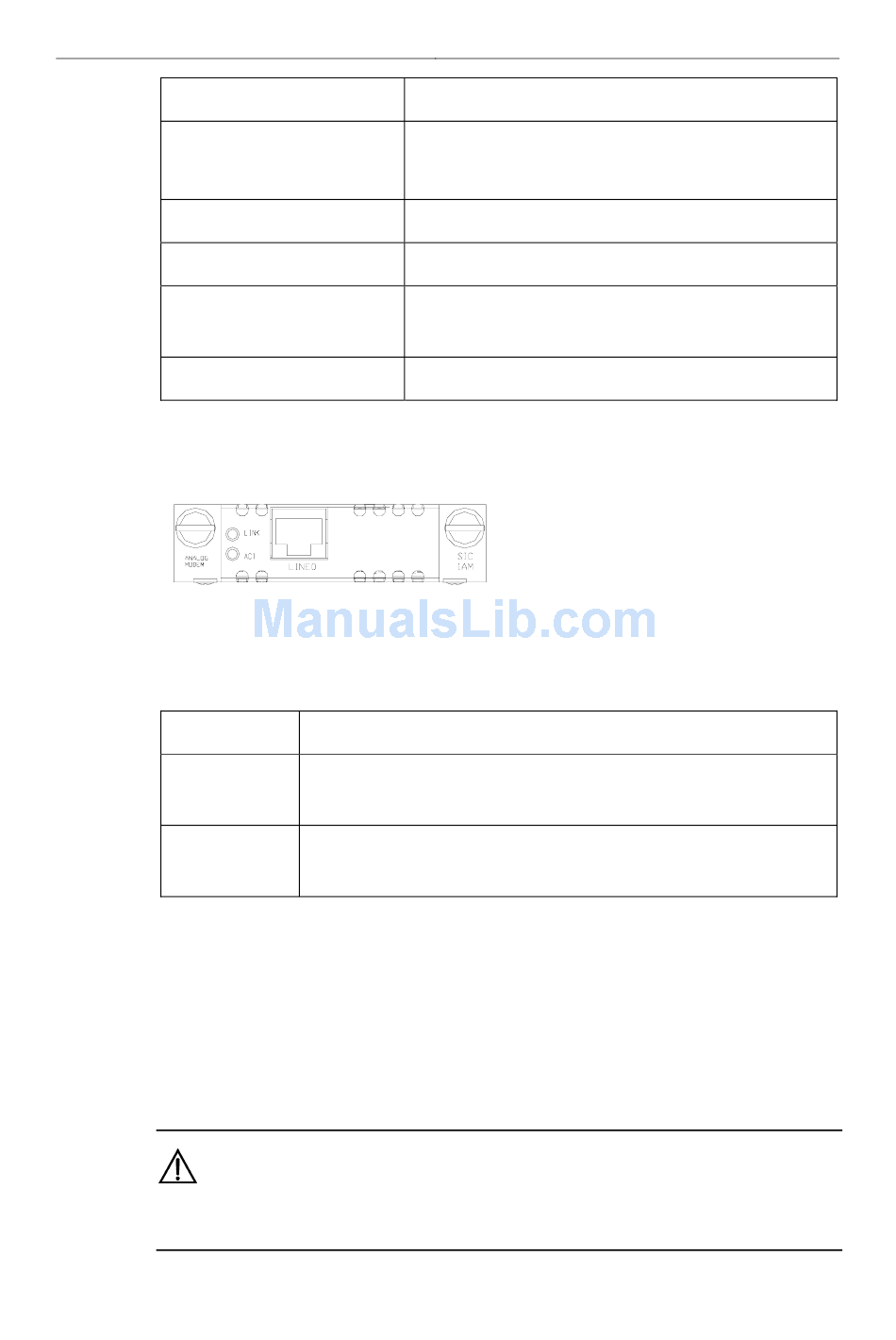

Figure 2-24 Router 1-Port Analog Modem SIC panel
Table 2-15 Description of the LEDs on Router 1-Port Analog Modem SIC panel
LED
LINK
ACT

2.6.5 Interface Cable

The connection cables for Router 1-Port Analog Modem SIC are telephone cables with
ferrite core. Both ends of the cables are RJ11 connectors. For cable pinouts, refer to
Low-End and Mid-Range Series Routers Cable Manual.
Caution:
Relevant cables are included in the standard shipment package of Router 1-Port Analog Modem SIC.
Attribute
1 (Router 1-Port Analog Modem SIC)
2 ()
Telephone cable with ferrite core
56kbps
ITU-T V.90, V.34 (33.6 kbps), V.FC, V.32 bis, V.32, V.22 bis,
V.22A/B, V.23, V.21, Bell 212A a, Bell 103.
Modem dial-up
OFF means the link is idle. ON means the connection has been established.
Blinking means the connection is being set up.
OFF means the link is idle. Blinking means data is being transmitted or
received.
Chapter 2 Smart Interface Cards
Description
Description
2-24
