4.2.3 Panel and Interface LEDs

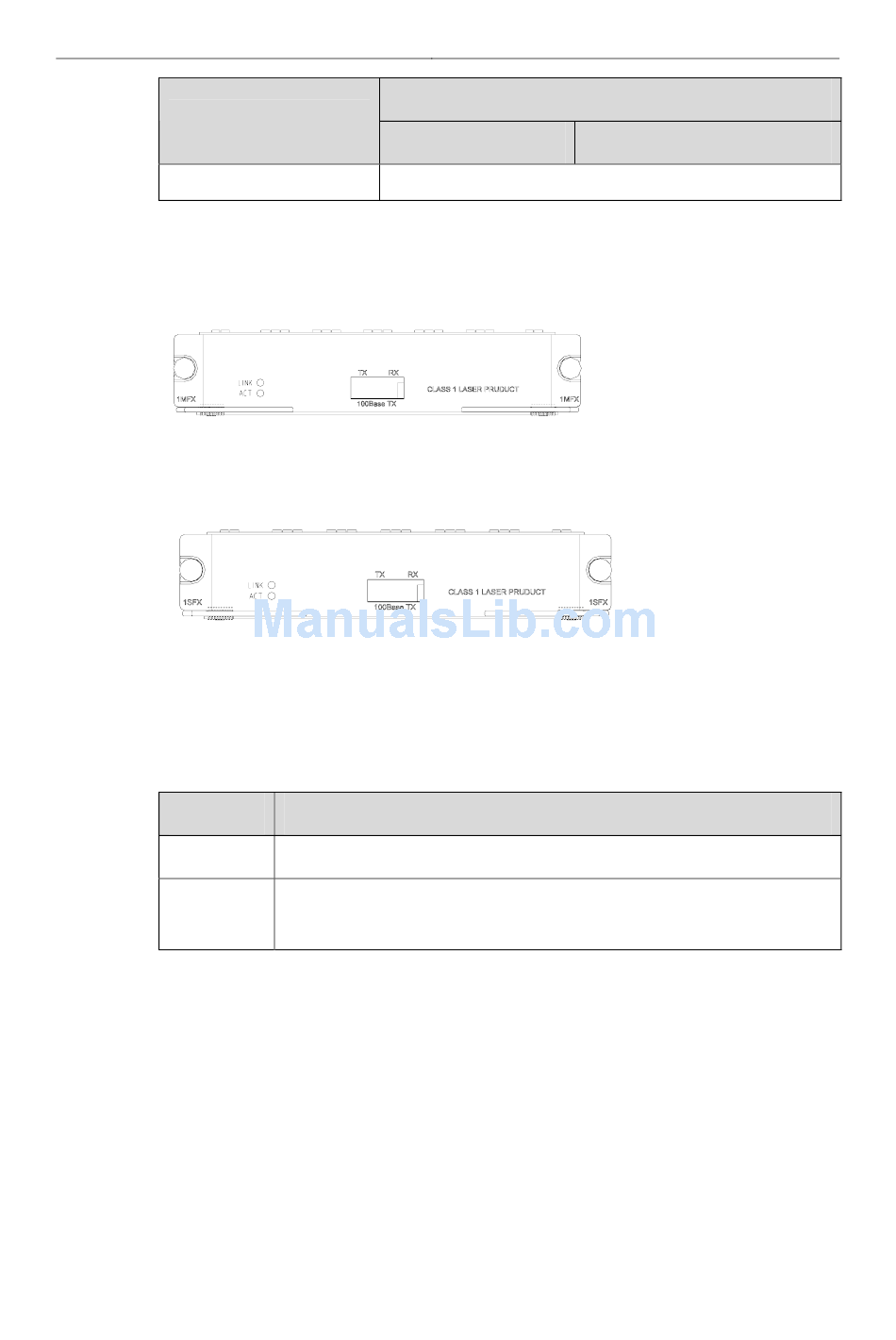

Figure 4-3 100FX MM panel
Figure 4-4 100FX SM panel
The following table describes the LEDs on the card panel.
Table 4-4 LEDs on the Router 1-Port 100FX MM FIC/100FX SM FIC panel
LED
LINK
ACTIVE

4.2.4 Interface Optical Fiber

The 100FX MM should be connected to multi-mode optical fiber and the 100FX SM to
single-mode optical fiber. Because the optical interfaces on both cards are SC-type
optical receptacles, you must use the optical fibers with SC-type connectors to
connect them.
Attribute
Ethernet_SNAP
OFF means no Rx link is present, and ON means an Rx link is present.
OFF means no data is being transmitted or received on the interface and blinking
means data is being transmitted and/or received.
Chapter 4 Flexible Interface Cards (Router 6000)
Description
100FX SM
Description
4-5
100FX MM
