3Com Router 5000 and Router 6000 v2.41
Module Guide

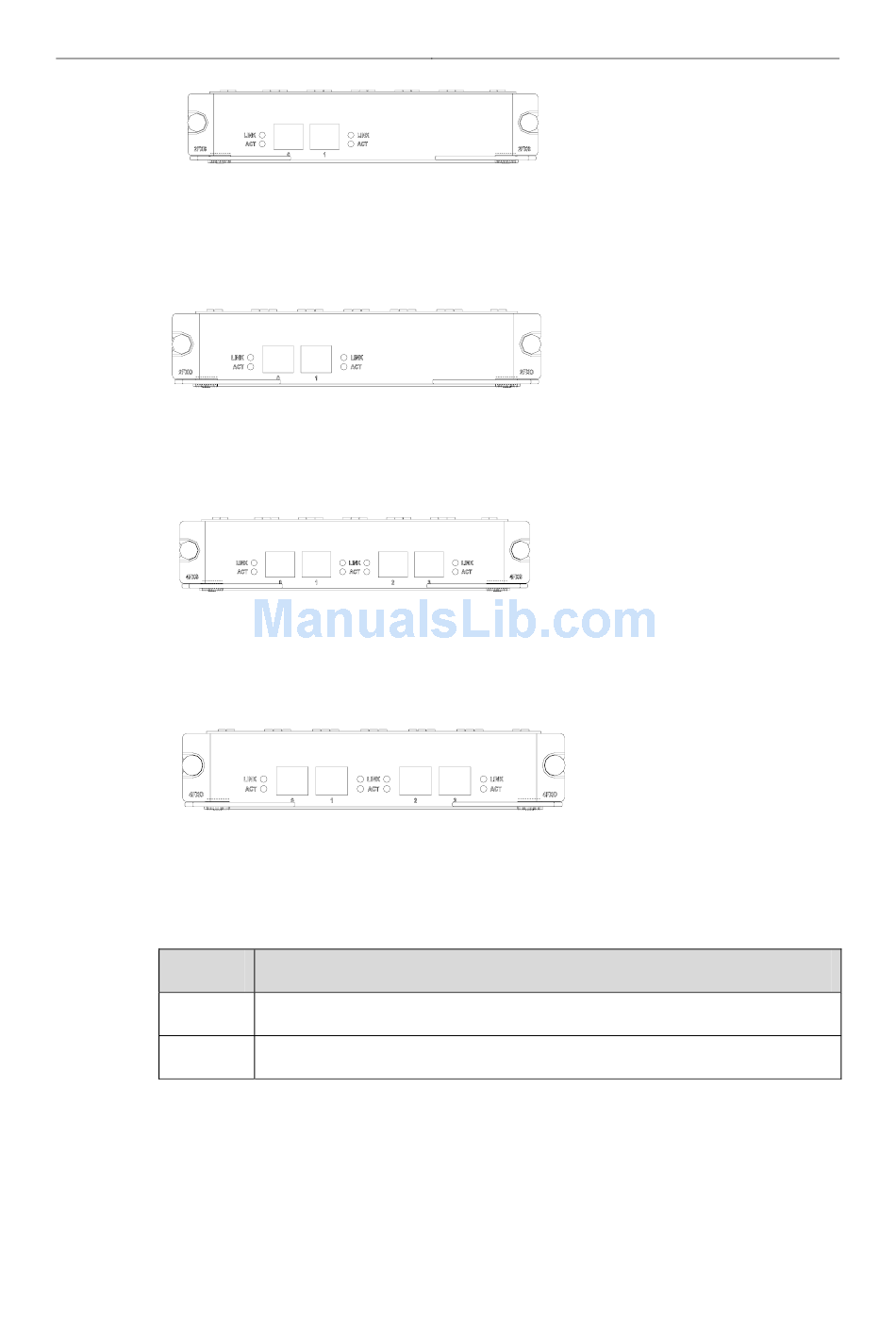

Figure 4-55 2-Port FXS FIC panel
The following figure illustrates the 2-Port FXO panel:
Figure 4-56 2-Port FXO panel
The following figure illustrates the 4-Port FXS FIC panel:
Figure 4-57 4-Port FXS FIC panel
The following figure illustrates the 4-Port FXO FIC panel:
Figure 4-58 4-Port FXO FIC panel
Table 4-40 LEDs on the Router 2-Port FXS FIC/Router 4-Port FXS FIC
LED
LINK
ACT

4.19.4 Interface Cable

The external interfaces of the Router 2-Port FXS/2-Port FXO FIC and the Router
4-Port FXS/4-Port FXO FIC are standard RJ-45 connectors.
OFF means that no link is present; ON means a link is present.
OFF means the channel is idle and ON means there is call activity.
4-59
Chapter 4 Flexible Interface Cards (Router 6000)
Description
