provided on the same line. It provides downlink rates in the range 32 kbps to 8 Mbps
and uplink rates in the range 32 kbps to 1 Mbps.
The FIC-ADSL-I interface cards provide these functions:
Manual ADSL line activation and deactivation, supporting SAR loopback for
convenient fault isolation.
G.992.1-compliant interface(s), auto-sensing.
Trellis coding on ADSL interfaces, enhancing stability of ADSL connections.

4.15.2 Interface Attributes

The following table describes the interface attributes of the Router 1-Port ADSL
FIC-I/Router 2-Port ADSL FIC.
Table 4-31 Interface attributes of the Router 1-Port ADSL FIC/Router 2-Port ADSL FIC
Attribute
Connector
Number of connectors
Interface standard
Interface rate
Interface cable
Supported services

4.15.3 Panel and Interface LEDs

The following figures illustrate the Router 1-Port ADSL FIC panel:

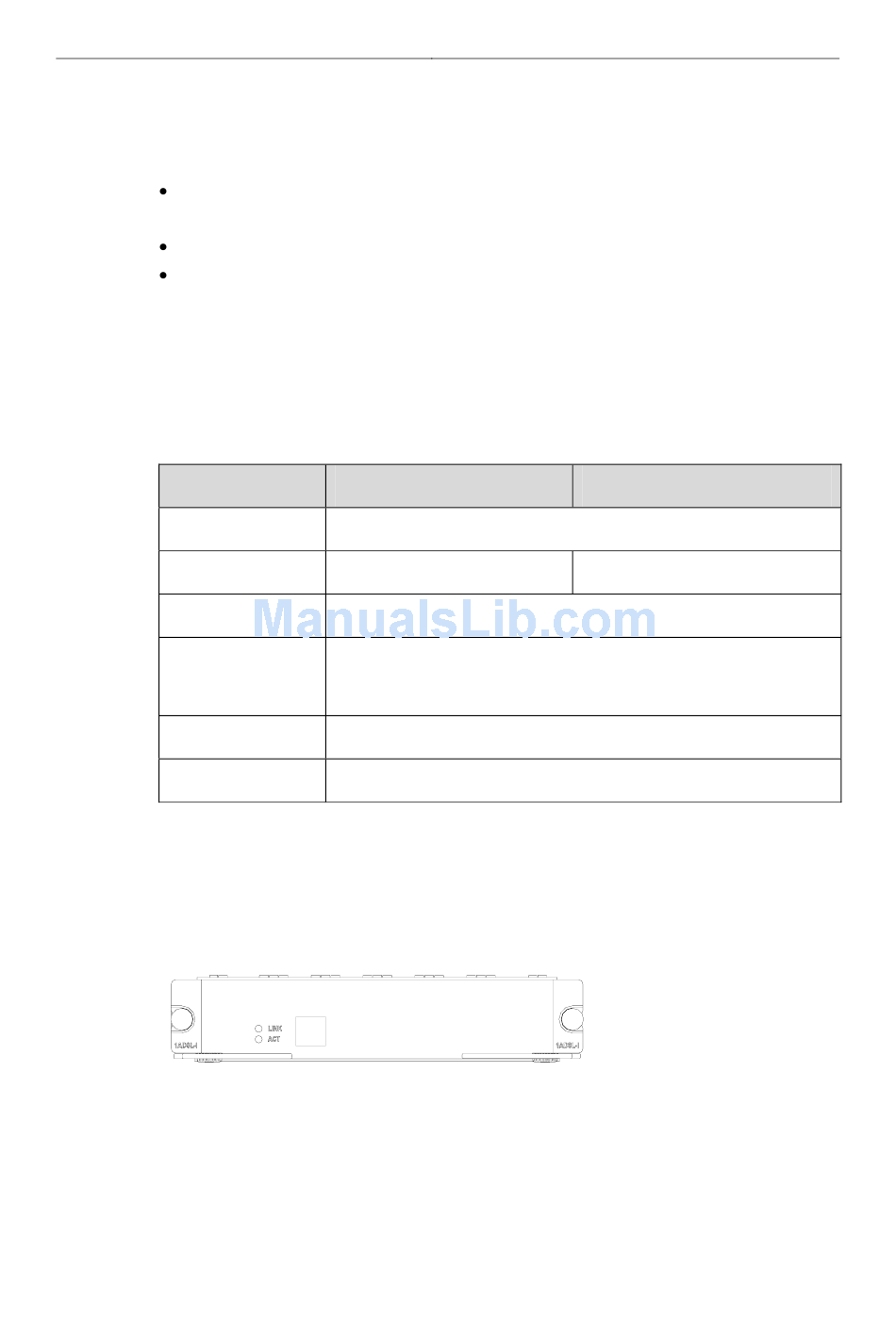

Figure 4-46 Router 1-Port ADSL FIC panel
The following figures illustrate the Router 2-Port ADSL FIC panel:
Chapter 4 Flexible Interface Cards (Router 6000)
Router 1-Port ADSL FIC
RJ-11
1
G. 992.1
Downlink: 8 Mbps
Uplink: 1024 kbps
Regular telephone cable
ADSL over ISDN
4-48
Router 2-Port ADSL FIC
2
