3Com Router 5000 and Router 6000 v2.41
Module Guide
Table 4-45 Interface attributes of the Router NDEC2 Encryption Accelerator FIC
Protocol supported
Hardware algorithm

4.22.3 Panel and LEDs

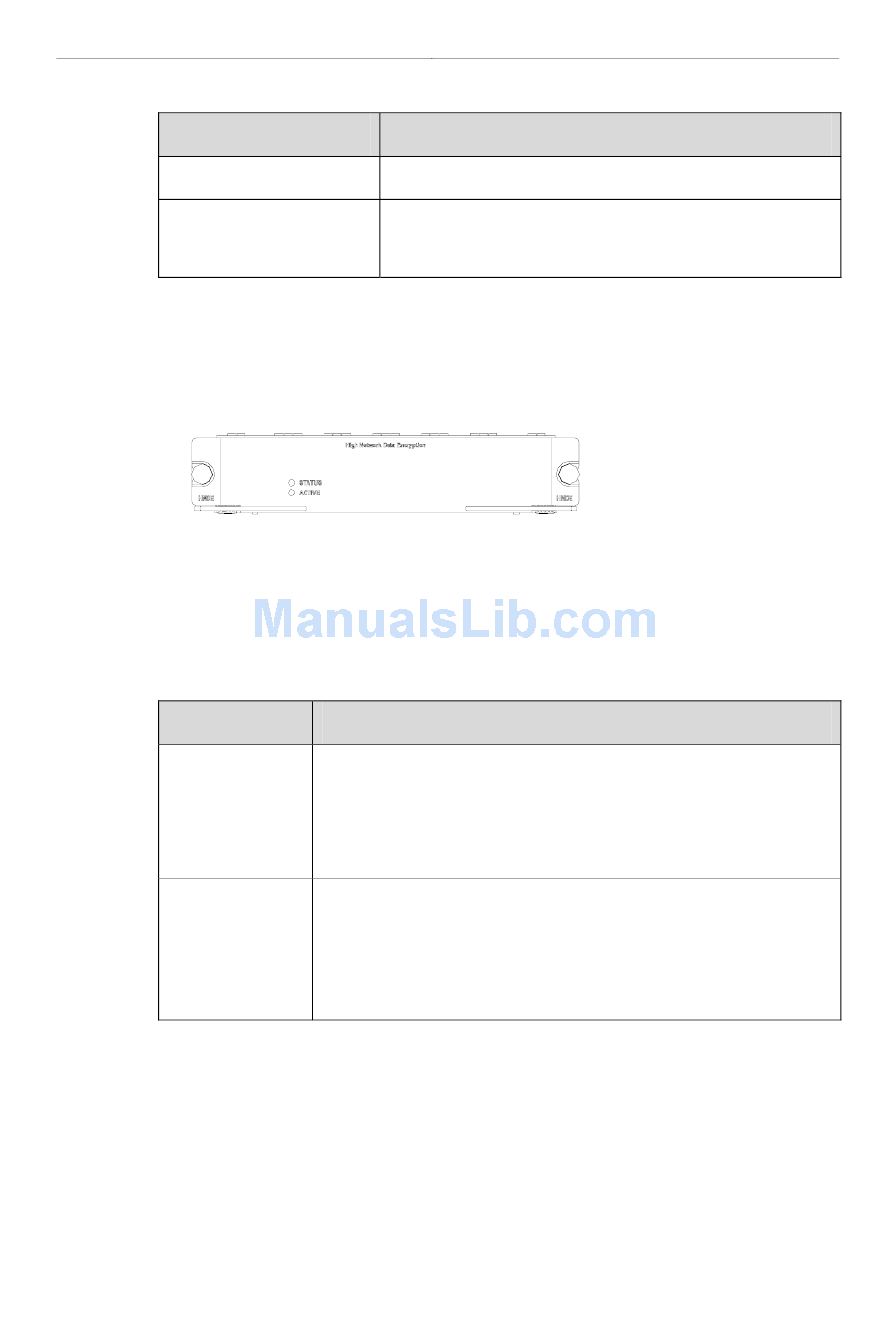

The following figure illustrates the Router NDEC2 Encryption Accelerator FIC panel:
Figure 4-66 Router NDEC2 Encryption Accelerator FIC panel
The following table describes the LEDs on the Router NDEC2 Encryption Accelerator
FIC panel.
Table 4-46 LEDs on the Router NDEC2 Encryption Accelerator FIC
LED
STATUS
ACTIVE

4.22.4 Troubleshooting

You may learn how well the encryption card is operating by reading the LEDs on it.
For the correct LED behaviors, refer to Table 4-46.
Attribute
IPsec
key algorithm (DES, 3DES, AES)
Authentication algorithm (HMAC-MD5-96, HMAC-SHA-1-96)
Solid green: Power is being supplied to the Router NDEC2 Encryption
Accelerator FIC normally.
OFF: The card is not powered, the power supply of the card has failed or a
serious hardware fault occurs.
OFF after two-second flashing (yellow): The card finishes initialization.
Blinking: The card operates normally and data is being transmitted or
received.
OFF: The card is operating normally but not sending or receiving data.
Chapter 4 Flexible Interface Cards (Router 6000)
Description
Description
4-67
