CDM-800 Gateway Router
Ethernet Management

5.4.3 Web Server Menu Tree

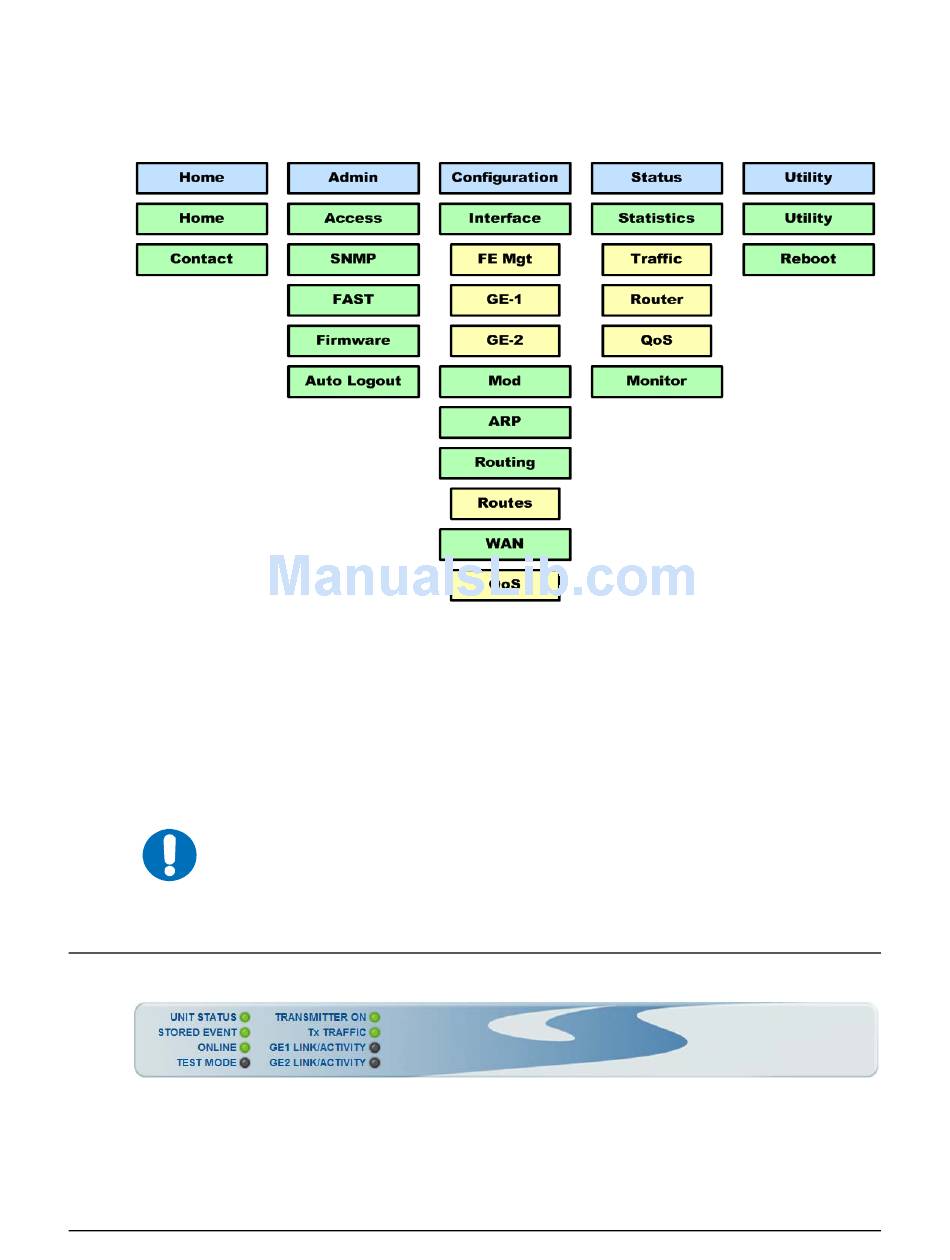

The operations available through this interface are illustrated by this menu tree:
The CDM-800 Web Server Interface provides access to five (5) navigation tabs (shown in blue):
• Home
Beyond this top-level row of navigation tabs, the diagram illustrates the available primary (green)
and nested (yellow) page tabs that afford the user more specific functionality.
Click any tab to continue.
5.4.4

Web Server Page Descriptions

Access to and availability of certain CDM-800 Web Server Interface pages are
dependent upon the FAST options purchased for operation as well as the
detected presence of auxiliary equipment (e.g., Redundancy Switches) installed
IMPORTANT
and configured for use with the CDM-800. Such operational restrictions will be
noted in the subsections that follow through the end of this chapter.
5.4.4.1

About the Virtual Front Panel

Each page in the CDM-800 Web Server Interface features a 'Virtual Front Panel'. This read-only
display emulates the operational state of the CDM-800 front panel LEDs, affording the user with
true 'heads-up' operational status indicators that react dynamically to the configuration changes
made via the Web Server Interface pages.
• Admin • Configuration
5–4
• Status • Utility
Revision 0
MN-CDM800
