CDM-800 Gateway Router
Rear Panel Connector Pinouts
3.5

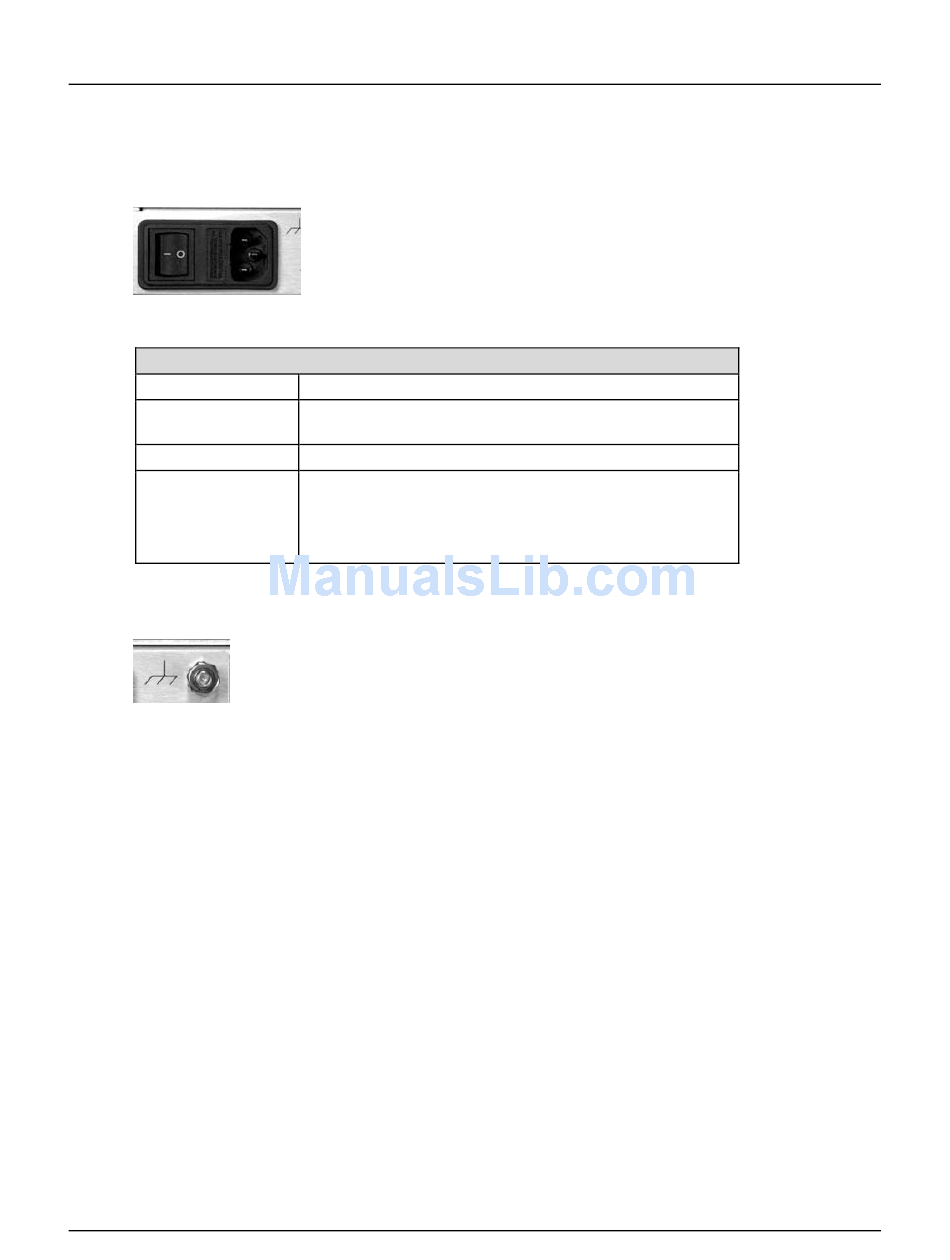

Power / Ground Connections

3.5.1

Alternating Current (AC) Power Connector

Note the following:
Input Power
Input Voltage
Connector Type
Fuse Protection
3.5.2

Chassis Ground Connector

A #10-32 stud adjacent to the power connector is used for connecting a common
chassis ground among equipment.
Note: The AC power connector provides the safety ground.
A standard, detachable, non-locking, 3-prong power cord (IEC plug)
supplies the Alternating Current (AC) power to the router via this
connector.
AC Power Specifications
40W maximum, 20W typical
100 - 240 volts AC, +6%/-10% - autosensing
(total absolute max. range is 90 - 254 volts AC)
IEC
2.0A Slow-blow (115 volt AC operation)
2.0A Slow-blow (230 volt AC operation)
Line and neutral fusing
(2) 20 mm type fuses
3–5
Revision 0
MN-CDM800
