Connector Overview; Table 3-1. Cdm-800 Rear Panel Connectors; Figure 3-1. Cdm-800 - Rear Panel View - Comtech EF Data CDM-800 Installation And Operation Manual

CONNECTORS
3.1

Connector Overview

The rear panel connectors for the CDM-800 Gateway Router, shown here in Figure 3-1,
provide all necessary external connections between the router and other equipment. Table 3-1
on the next page summarizes the connectors provided on the rear panel interface, grouped
according to service function.
Interface Type /
Chapter Sect.
IF
Sect. 3.2
Terrestrial Data
Sect. 3.3
Utility
Sect. 3.4
Power/Ground
Sect 3.5
Chapter 3. REAR PANEL

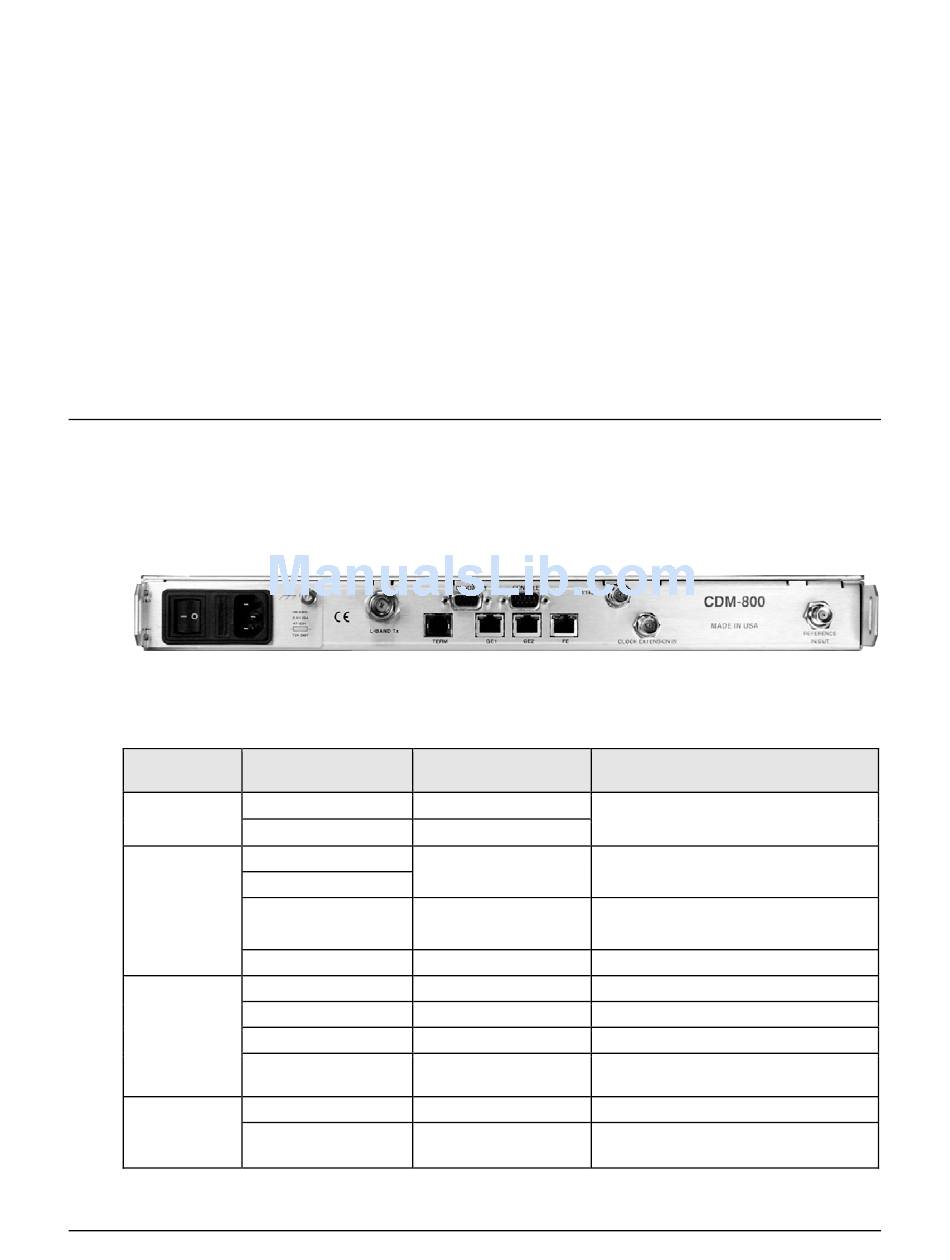

Figure 3-1. CDM-800 – Rear Panel View

Table 3-1. CDM-800 Rear Panel Connectors

Name (Ref Des) Connector Type
L-BAND Tx Type 'N' female (L-Band)
70/140 Tx BNC female (70/140 MHz)
GE1
RJ-45 female
GE2
FE (Fast Ethernet) RJ-45 female
CLOCK EXTENSION IN BNC female
TERM RJ-12 Female
REDUNDANCY 9-pin Type 'D' female
CONSOLE 9-pin Type 'D' male
REFERENCE IN/OUT BNC female
AC See Sect. 3.5.1
See Sect. 3.5.2
Ground
#10-32 stud
AND
Function
IF Tx Output
10/100/1000 BaseT Gigabit Ethernet Traffic
Interface
10/100 BaseT Fast Ethernet management and
data
Clock Extension Input
Terminal (EIA-232) Interface
Connection to External 1:1 Controller
Serial Remote Interface (EIA-232)
10 MHz External/Internal Reference
Input/Output
Chassis power
Common Chassis Ground
3–1
