CDM-800 Gateway Router
Ethernet Management
5.4.4.5.1.3 Status | Statistics | QoS

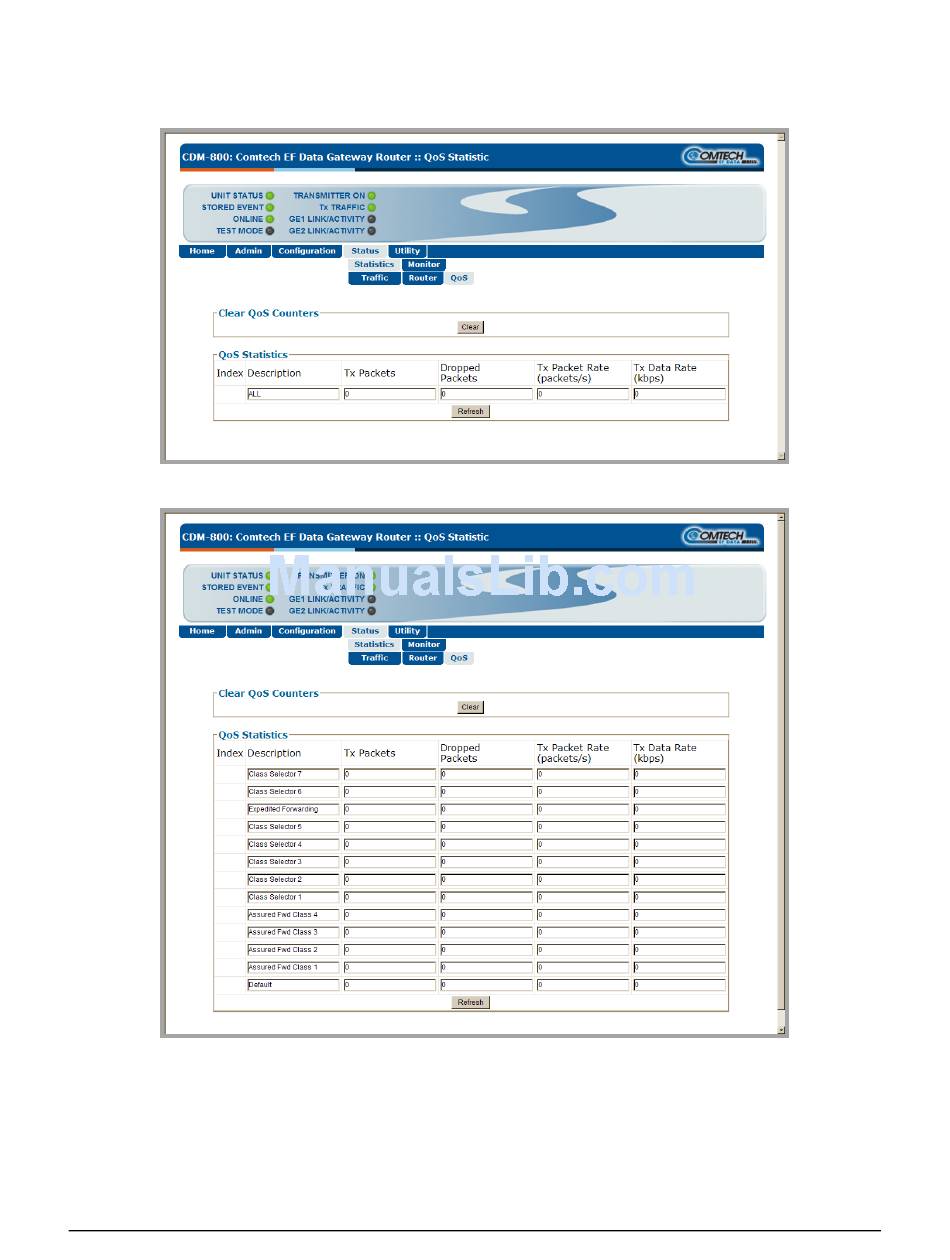

Figure 5-16 displays the 'Status | Statistics | QoS' page when QoS Control Mode is set (via the
'Configuration | WAN | QoS' page – see Section 5.4.4.4.5) either to Off or Diffserv.
Page with QoS Control Mode = Off
Page with QoS Control Mode = Diffserv

Figure 5-16. Status | Statistics | QoS page

5–24
Revision 0
MN-CDM800
