5.1

Introduction

The CDM-800 Gateway Router is equipped with an RJ-45 10/100 BaseT Fast Ethernet
management interface, labeled MANAGEMENT FE, that is used for monitor and control
purposes.
This chapter provides a high-level overview of the functionality provided by this interface, and
references other chapters in this manual for further details.
5.2

Ethernet Management Interface Protocols

The router's 10/100 BaseT Fast Ethernet (FE) Management Interface supports two management
protocols:
•
SNMP with public and private MIB
•
Web Server (HTTP) Interface for complete product management

5.2.1 Ethernet Management Interface Access

Access to
Management Interface requires the user to
specify the unit's Management IP Address.
This address may be obtained via use of a
terminal emulator connected to the 9-pin

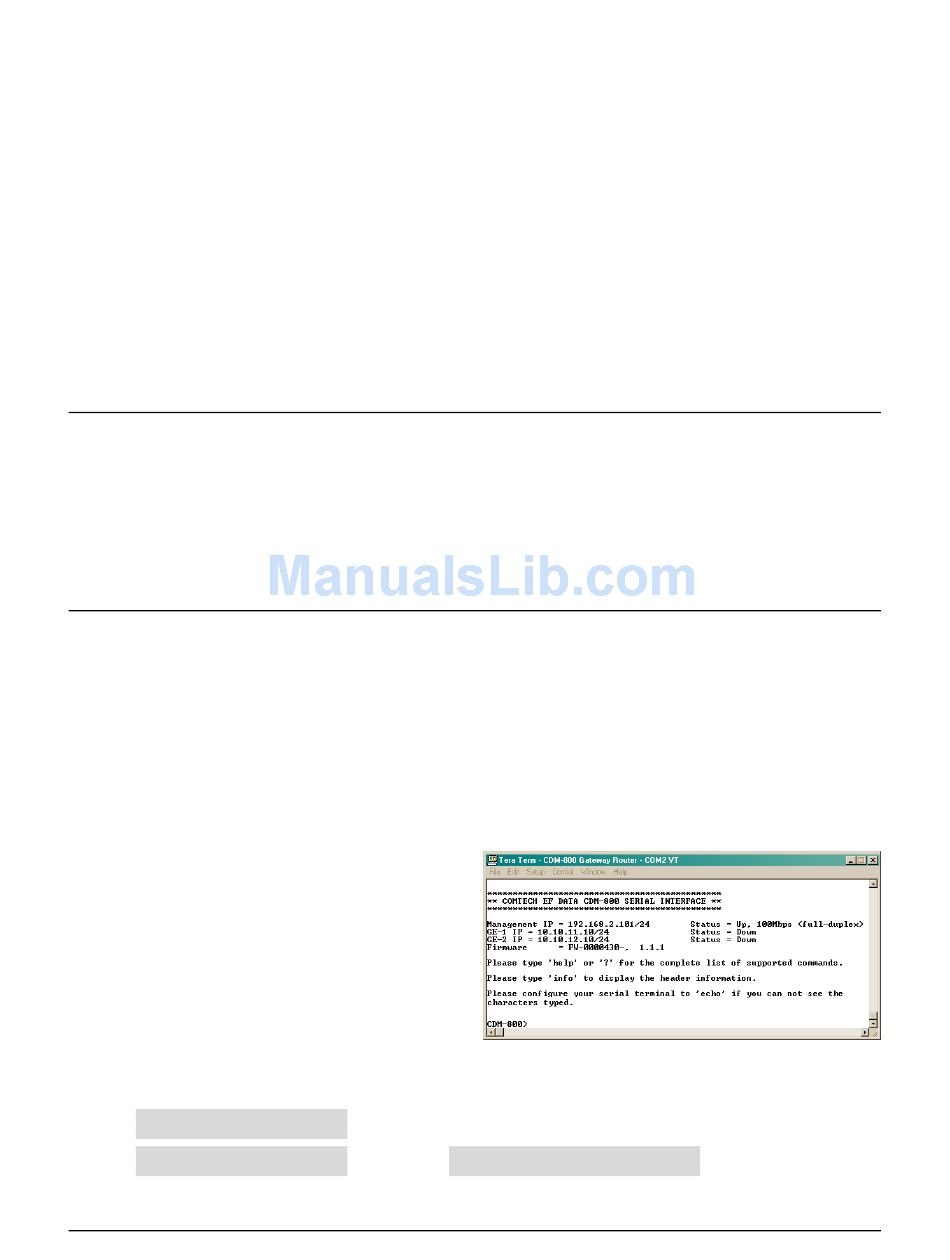

serial CONSOLE port. As per the example
shown to the right, a number of operational
parameters (including the unit's factory-
default IP addresses) are displayed upon
power-up of the unit.
The default (factory-assigned) IP addresses are as follows:
Management IP Address
Traffic (GigE) IP1 Address
Chapter 5. ETHERNET
the CDM-800 Ethernet
192.1.1.10
10.10.1.10
MANAGEMENT
Traffic (GigE) IP2 Address
5–1
10.10.2.10
