Appendix A
A.2

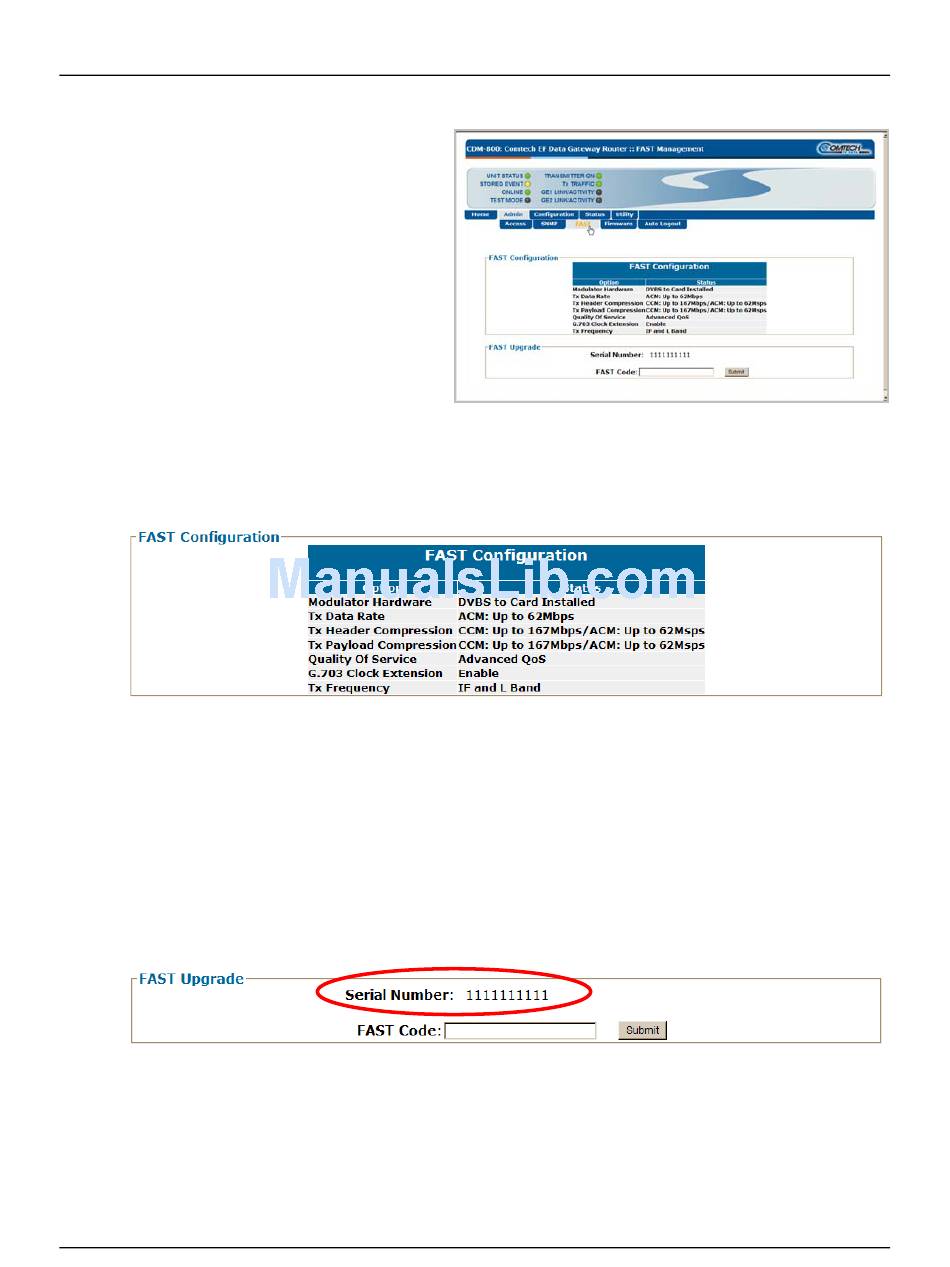

Activation Procedure via Web Server Interface

The CDM-800 available FAST options
are listed – and the FAST Access Code
entry/option activation controls are
provided – via the Web Server Interface
on the 'Admin | FAST' page.
Refer to Chapter 5.5. WEB SERVER
(HTTP) INTERFACE for a complete
overview on CDM-800 operations via
this interface.
A.2.1 View Currently Installed Features
To view currently installed features, the user may refer to the FAST Configuration section of the
'Admin | FAST' page:
This read-only section displays the CDM-800's available FAST Features and the operational status
for each available option. Each available feature is listed in the Option column. When an option is
enabled, the Status column identifies the option as such along with its operational parameter(s); if an
option is not enabled, the column will display this information accordingly.
A.2.2 Record Serial Number
When contacting a Comtech EF Data sales representative during normal business hours to order
features, the user will be asked to provide the CDM-800's serial number. This serial number is
provided in the FAST Upgrade section of the 'Admin | FAST' page:
The user should write this number down prior to contacting Comtech EF Data:
Unit Serial Number: _________________________
