CDM-800 Gateway Router
Ethernet Management
5.4.4.3.2 Admin | SNMP
The 'Admin | SNMP' page (Figure 5-4) sets and returns administration information for the
CDM-800 Simple Network Management Protocol (SNMP) feature. For further information about
SNMP, see Section 5.3 SNMP INTERFACE.
SNMP Configuration
Note that the SNMP Trap Destination IP Address feature is a
and is therefore non-functional in this section. Otherwise, use the provided text boxes to assign
the desired SNMP configuration string. Note the following:
•
An SNMP Read Community String can be assigned. This string can be any combination of
characters and a length of 4 - 15 characters. The factory default for this parameter is public.
•
An SNMP Write Community String. This string can be any combination of characters and
a length of 4 - 15 characters. The factory default for this parameter is private.
For each string created, click [Submit] as needed to save the change(s).

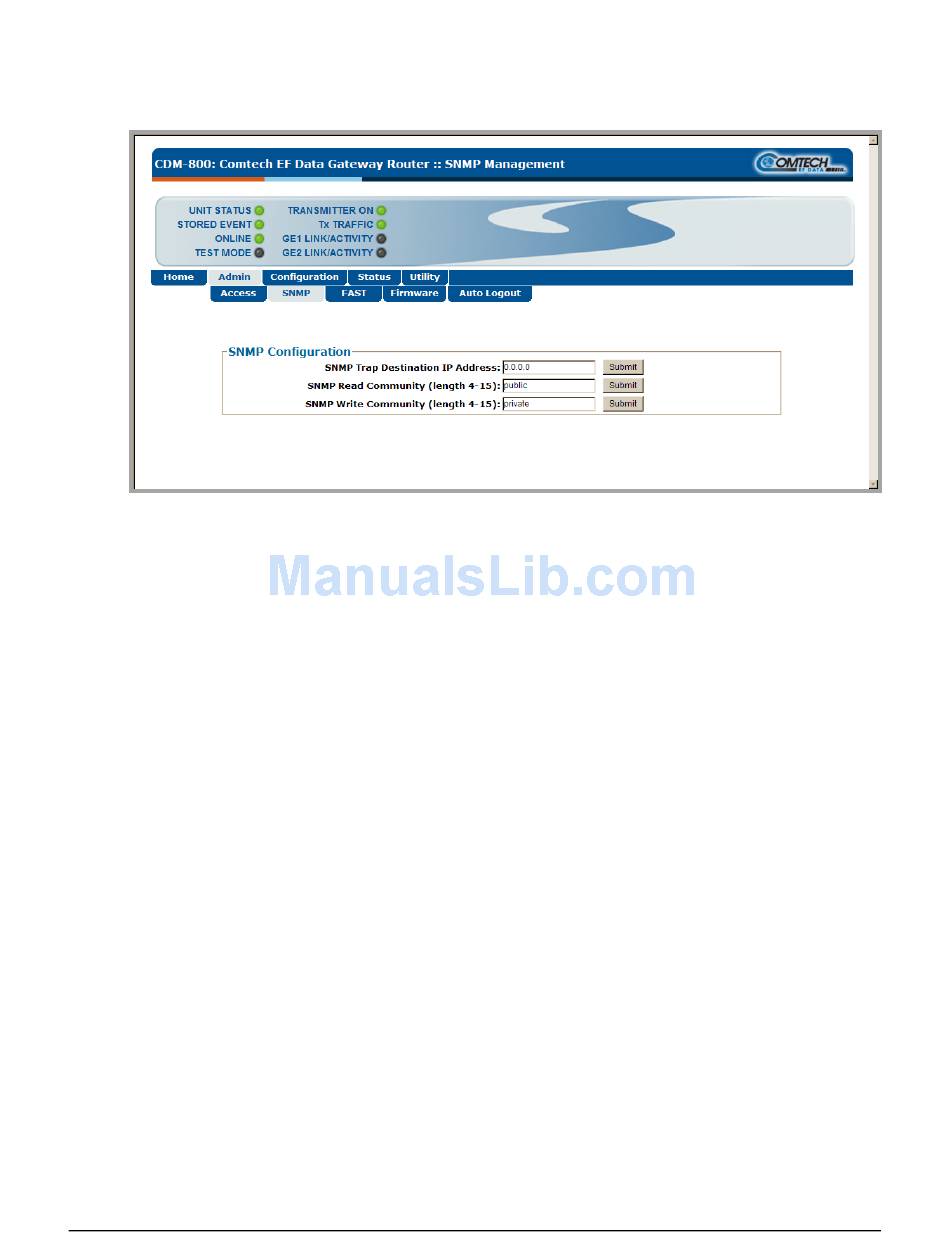

Figure 5-4. Admin | SNMP page

5–8
Revision 0
MN-CDM800
FUTURE offering at this time
