CDM-800 Gateway Router
Ethernet Management
Once the desired configuration settings have been made on this page, click [Submit] as needed to
save these changes.
5.4.4.4.1.2 Configuration | Interface | GE-1 or GE-2
The 'Configuration | Interface | GE-1' and 'GE-2' pages (Figure 5-9) permit the user to
configure the GE1 or GE2 (10/100/1000 BaseT Gigabit Ethernet) ports.
GE-1 or GE-2 Interface
MAC Address – This parameter is read-only and cannot be changed.
IP Address / CIDR Mask – Enter the IP Address and CIDR (Classless Inter-Domain Routing)
Subnet Mask using this box (the valid range for the Subnet Mask is 8-30).
Link Configuration – Use the drop-down menu to select the line speed and duplex setting for the
CDM-800's GE1 or GE2 interface. The available options are:
• Auto
• 1000 Base-T / Full Duplex
Note: Auto is the recommended configuration selection.
Negotiated Link Mode – The read-only actual negotiated line speed and duplex setting for the
GE1 or GE2 interface is displayed here. The viewable settings are:
• 1000 BaseT / Half Duplex

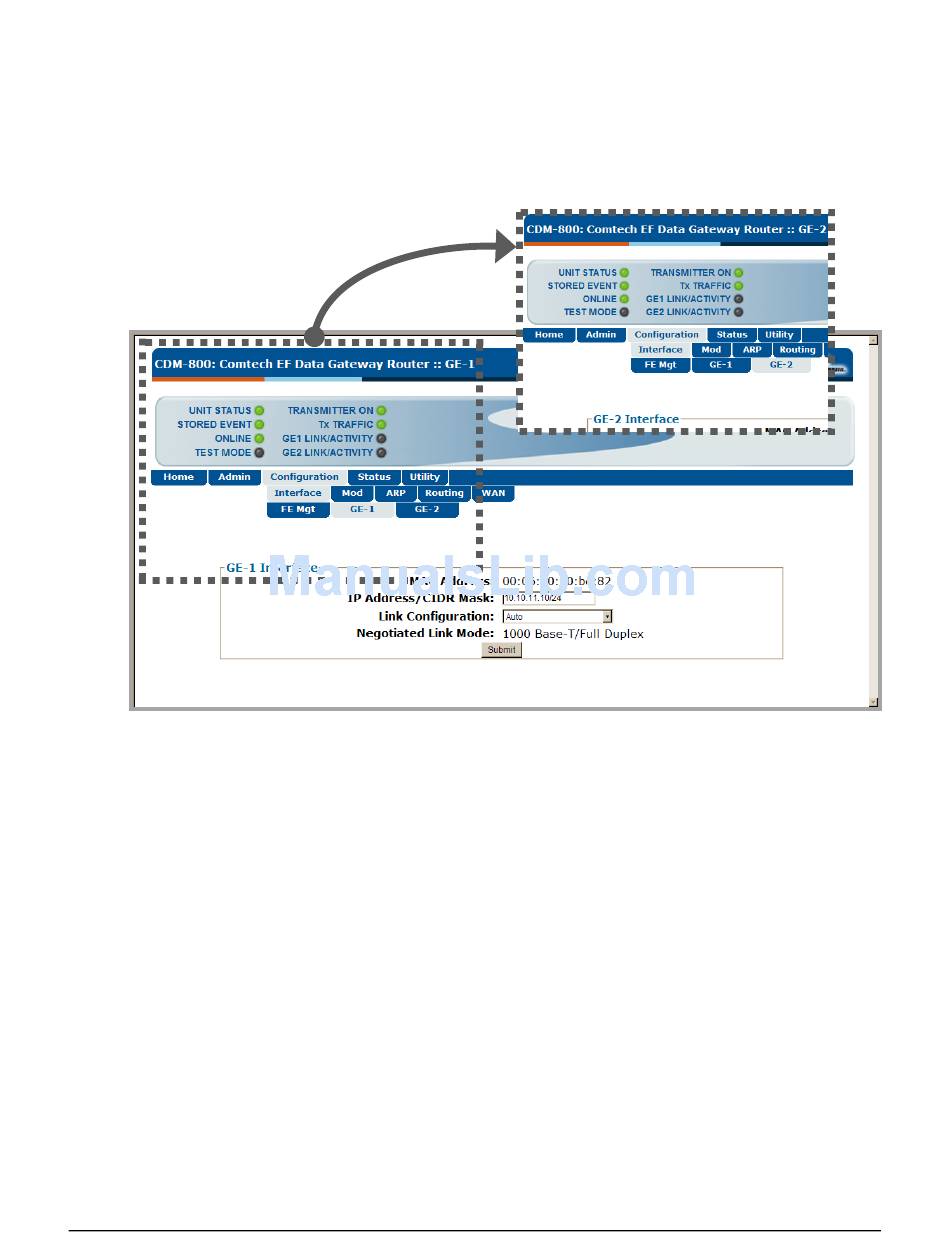

Figure 5-9. Configuration | Interface | GE-1 or GE-2 Page

• 100 BaseT / Full Duplex
• 100 BaseT / Half Duplex
• 100 BaseT / Half Duplex
• 100 BaseT / Full Duplex
5–13
Revision 0
MN-CDM800
• 10 BaseT / Full Duplex
• 10 BaseT / Half Duplex
• 10 BaseT / Half Duplex
• 10 BaseT / Full Duplex
