CDM-840 Remote Router
Ethernet Management
The CDM-840 Web Server Interface provides access to five (5) navigation tabs (shown in blue):
• Home
Beyond this top-level row of navigation tabs, the diagram illustrates the available primary (green)
and nested (yellow) page tabs that afford the user in-depth functionality.
The CDM-840 Web Server Interface pages in this diagram that are marked with
double asterisks (**) are functional only when the specified items (e.g., BUCs or
LNBs) are installed. Interface pages shaded RED and noted '(N/A)', while
IMPORTANT
selectable, are non-functional in this initial release.
Click any tab to continue.
5.4.4 Web Server Page Descriptions
Access to and availability of certain CDM-840 Web Server Interface pages are
dependent upon the FAST options purchased for operation as well as the
detected presence of auxiliary equipment (e.g., Block Up Converters, Low
IMPORTANT
Noise Block Down Converters, Redundancy Switches, etc.) installed and
configured for use with the CDM-840. Such operational restrictions will be
noted in the subsections that follow through the end of this chapter.
5.4.4.1

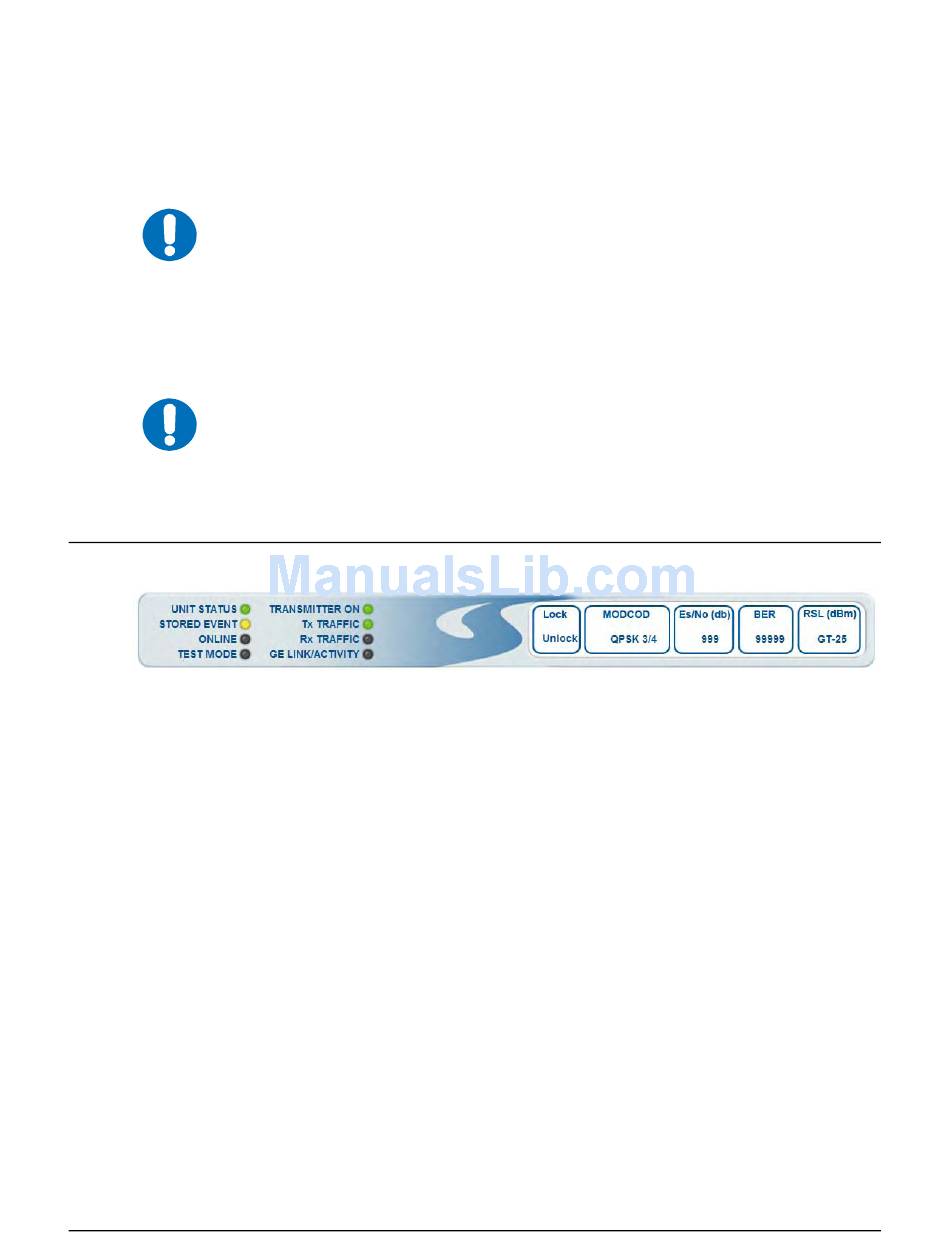

About the Virtual Front Panel
Each page in the CDM-840 Web Server Interface features a 'Virtual Front Panel'. This read-only
display emulates the operational state of the CDM-840 front panel LEDs, affording the user with
true 'heads-up' operational status indicators that react dynamically to the configuration changes
made via the Web Server Interface pages. In addition, status windows provide the current Lock,
MODCOD, EsNo (dB), BER and RSL (dBm) configuration and operating parameters.
• Admin
• Configuration
5–5
• Status
• Utility
Revision 0
MN-CDM840
