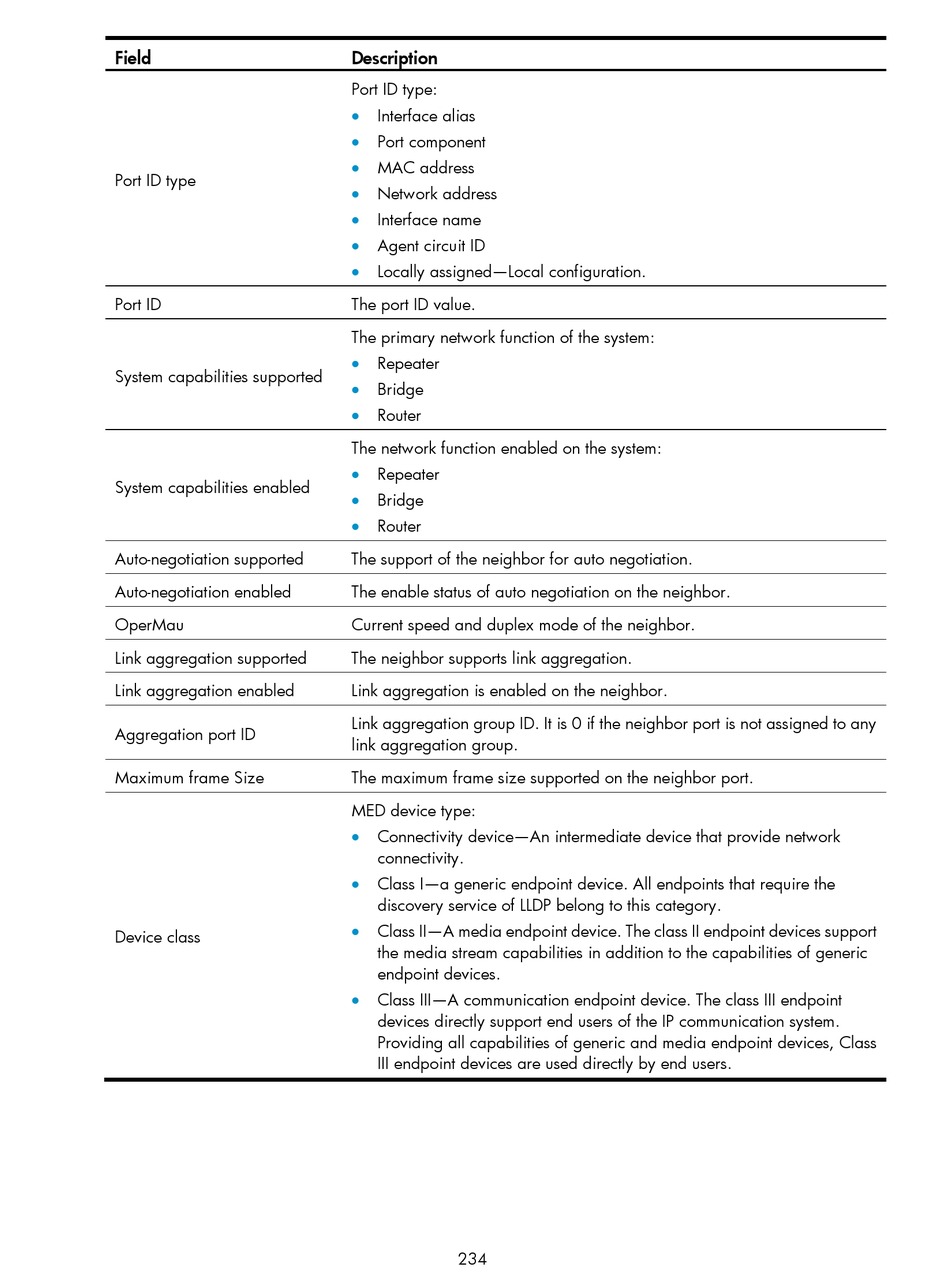

HP V1910 User Manual page 246

Field
Port ID type
Port ID
System capabilities supported
System capabilities enabled
Auto-negotiation supported
Auto-negotiation enabled
OperMau
Link aggregation supported
Link aggregation enabled
Aggregation port ID
Maximum frame Size
Device class
Description
Port ID type:

Interface alias

Port component

MAC address

Network address

Interface name

Agent circuit ID

Locally assigned—Local configuration.
The port ID value.
The primary network function of the system:

Repeater

Bridge

Router
The network function enabled on the system:

Repeater

Bridge

Router
The support of the neighbor for auto negotiation.
The enable status of auto negotiation on the neighbor.
Current speed and duplex mode of the neighbor.
The neighbor supports link aggregation.
Link aggregation is enabled on the neighbor.
Link aggregation group ID. It is 0 if the neighbor port is not assigned to any
link aggregation group.
The maximum frame size supported on the neighbor port.
MED device type:

Connectivity device—An intermediate device that provide network
connectivity.

Class I—a generic endpoint device. All endpoints that require the
discovery service of LLDP belong to this category.

Class II—A media endpoint device. The class II endpoint devices support
the media stream capabilities in addition to the capabilities of generic
endpoint devices.

Class III—A communication endpoint device. The class III endpoint
devices directly support end users of the IP communication system.
Providing all capabilities of generic and media endpoint devices, Class
III endpoint devices are used directly by end users.
234
