Disassembly

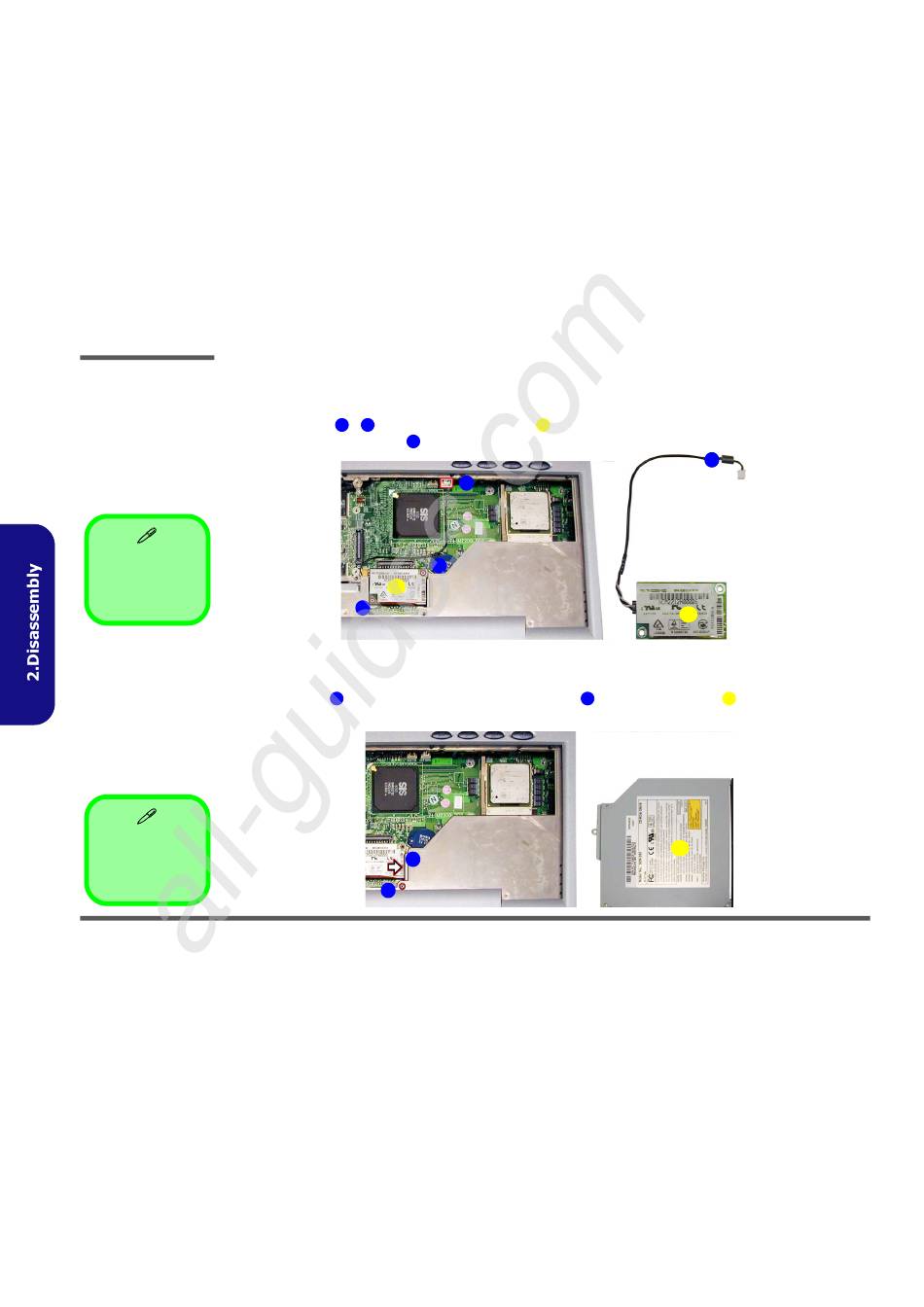

Removing the Modem

Figure 2 - 7
Modem Removal
1. Turn the computer OFF, remove the battery
Sequence
2. Remove screws
3. Disconnect the modem cable
Remove the screws,
lift the modem off the
mainboard, and dis-
connect the cable.
3. Modem
4. Modem cable
• 2 Screws

Removing the CD Device

Figure 2 - 8
CD Device
1. Turn the computer OFF, remove the battery
Removal
2. Remove screw
Sequence
(Figure 2 -
Remove the screw,
and slide the CD de-
vice out of the com-
puter.
3. CD device
• 1 Screw
2 - 12 Removing the Modem
All manuals and user guides at all-guides.com
- and carefully lift the modem
1 2
from the modem module.
4
4
2
3
1
and apply gentle but firm pressure at point
1
8).
2
1
(page 2 - 6) and keyboard (page 2 -
up off the mainboard
3
(page 2 - 6) and keyboard (page 2 -
to slide the CD device
2
8).
(Figure 2 - 7).
4
3
8).
out of the computer
3
3
