Setting the Jumpers

The system board jumpers let you change several system functions.
Jumpers are set to the default positions at the factory. You may need to
change the jumper settings to perform the following functions:
•
Clear CMOS memory
•
Clear the passwords from CMOS memory
•
Recover from a failed BIOS update
One 11-pin connector provides three 3-pin jumper blocks that control the
functions identified above. Figure 29 shows the location and orientation of
the jumpers. Items in bold in Table 6 on page 73 show the default
placement for each configurable option.

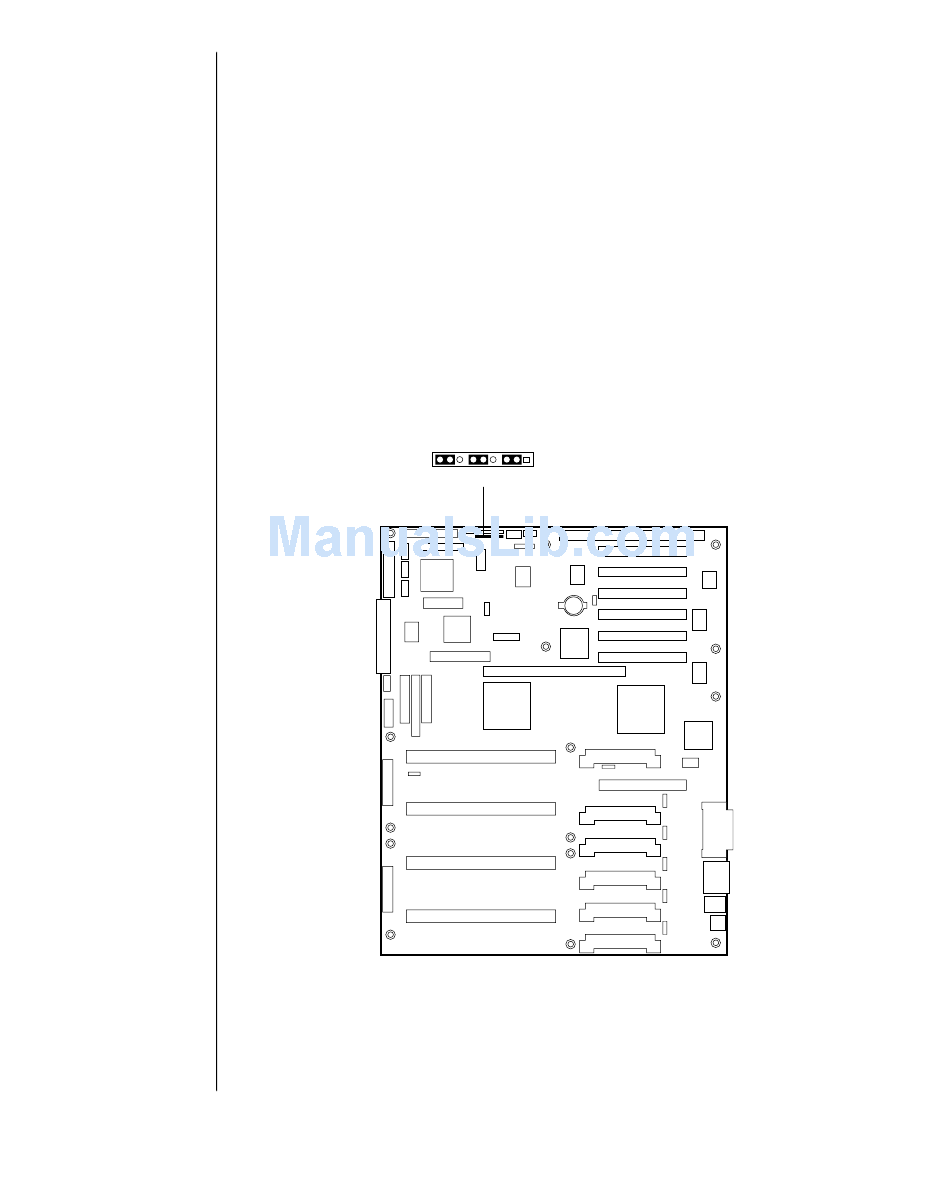

Figure 29: System Board Jumpers
J6J1
11 9 7 5 3 1
