60 Maintaining and Troubleshooting the Gateway ALR 9200 Server
3.
Remove the foam cover from the front subchassis by pulling it straight
out (see Figure 24). Be careful not to break the foam.

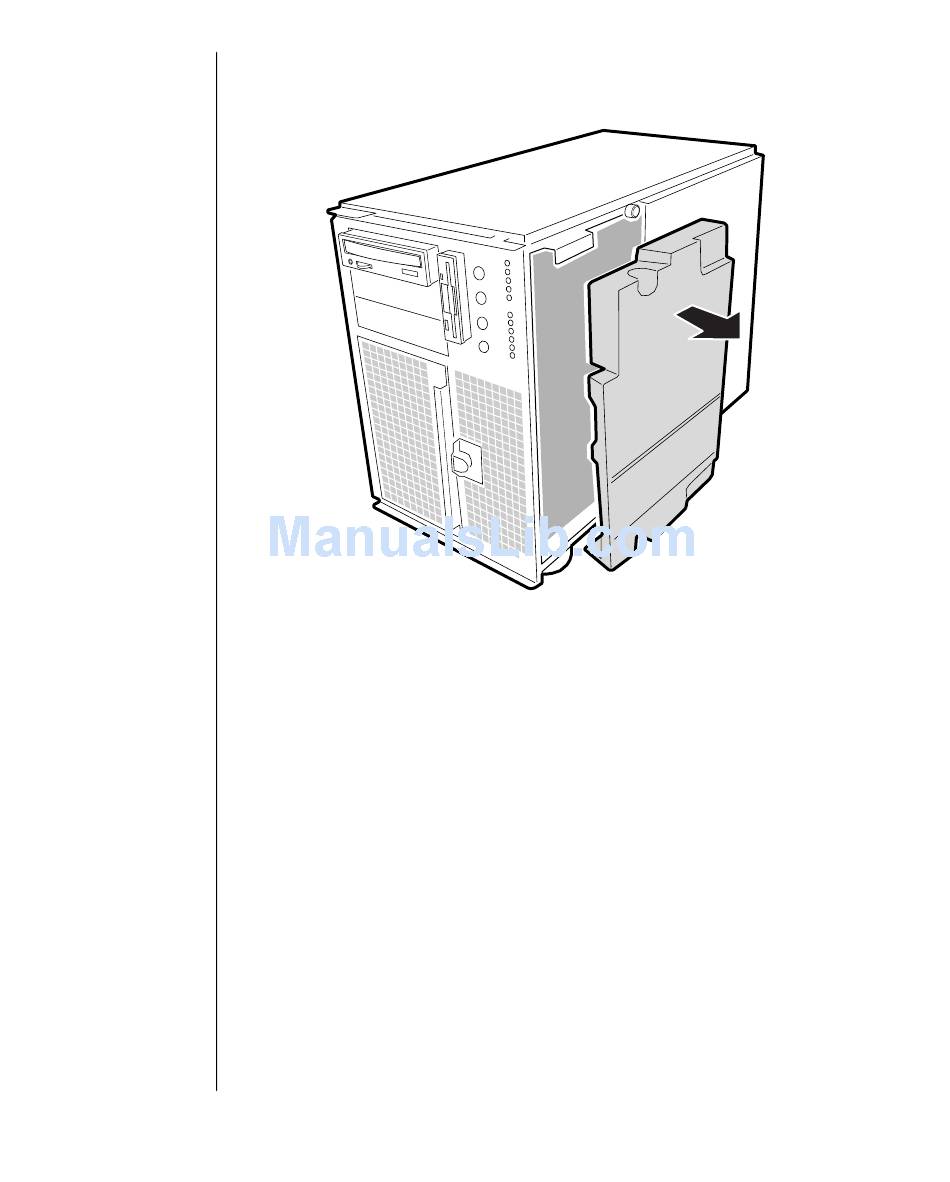

Figure 24: Removing the System Fan Assembly
4.
For better access to the individual fan cables on the front panel board,
carefully rotate the right edge of the foam fan assembly outward into
the opening where the foam cover was.
