Gateway ALR 9200 Maintaining And Troubleshooting page 23

A
LL
KK
JJ
II
HH
GG
FF
EE
DD
CC
BB
AA
Z
Y
X
W
V

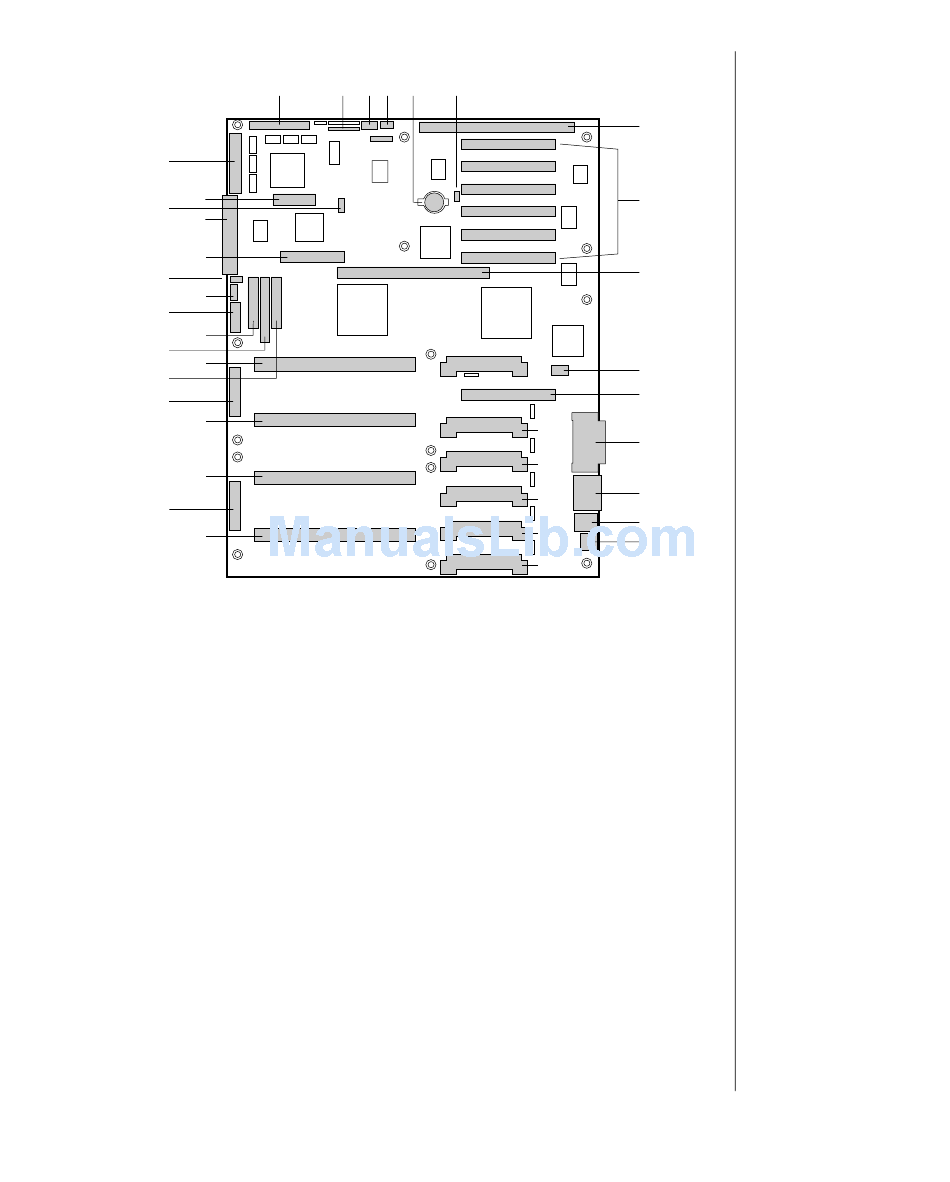

Figure 3: System Board Components and Connectors
A Wide SCSI B connector (J9J1)
B System jumpers (J6J1)
C Hard drive input LED connector (J6J3)
D System speaker connector (J6J2)
E Lithium battery (B4H1)
F Wake-on-LAN technology connector (J4H1)
G ISA slot (J1J1)
H PCI slots B4 (top), B3, B2, B1, A3, and A2
I Memory module connector (J3G1)
J ICMB connector (J1E1)
K PCI slot A1 (J2D1)
L Video and parallel port connectors (J1C1)
M Serial port connectors (J1B2)
N Keyboard and mouse connectors (J1B1)
O USB external connector (J1A1)
P VRM connector for processor 4 (J4E1)
Q VRM connector for processors 4 & 3 (J4C2)
R VRM connector for processor 3 (J4C1)
S VRM connector for processor 2 (J4B1)
B C D E F
T VRM connector for processors 2 & 1 (J4A2)
U VRM connector for processor 1 (J4A1)
V Processor 1 Slot 2 connector (J9A1)
W Main power connector, primary (J9B1)
X Processor 2 Slot 2 connector (J9B2)
Y Processor 3 Slot 2 connector (J9D1)
Z Main power connector, secondary (J9D2)
AA Front panel connector (J8E1)
BB Processor 4 Slot 2 connector (J9E1)
CC IDE connector (J9E2)
DD Diskette drive connector (J9E3)
EE Auxiliary power connector (J9E4)
FF USB internal header (JC9F14)
GG SMBus connector (J9F2)
HH F16 expansion connector (J7G1)
II Narrow SCSI connector (J9H1)
JJ External IPMB connector (J7H1)
KK SMM connector (J8H1)
LL Wide SCSI A connector (J9H2)
G
H
I
P J
K
Q
L
R
M
S
N
T
O
U
System Board Connectors 11
