58 Maintaining and Troubleshooting the Gateway ALR 9200 Server
Installing a Fan in the Power Supply Bay
This procedure describes installation of a fan in the third power supply
module bay. This procedure is only valid for configurations using two
power supply modules.
To Install a Fan In the Power Supply Bay
Remove four screws, the grill plate, and fan from your kit.
1.
Remove the plate (Figure 23) that covers the power supply bay closest
2.
to the PCI slots. It is the uppermost bay when the server is standing
upright in pedestal mode.

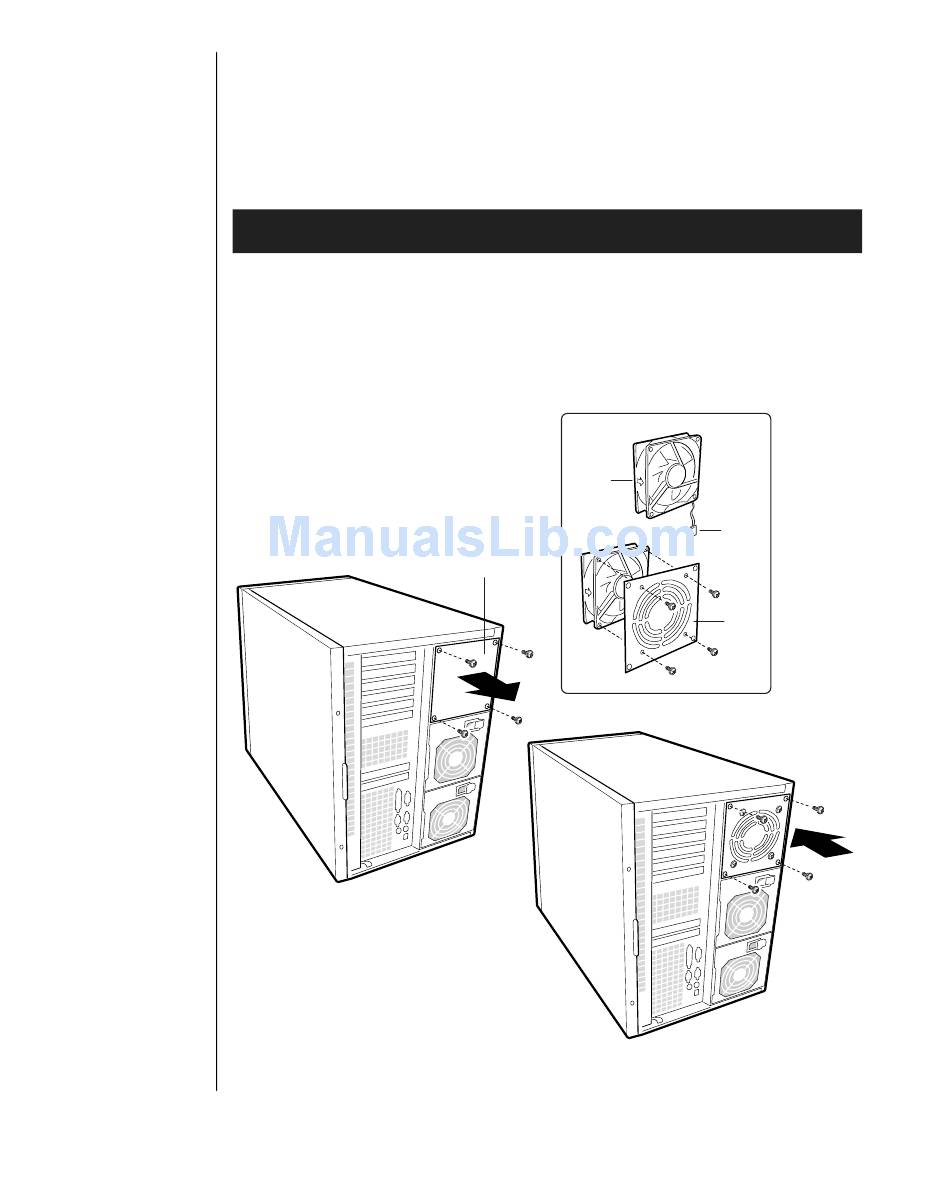

Figure 23: Installing a Fan in the Power Supply Bay
Fan
Plate covering
power supply bay
Cable
Grill
plate
