Note:
System EMI integrity and
cooling are both protected
by having drives installed in
the bays or filler panels and
EMI shields covering the
bays. When you install a
drive, save the panel and
shield to reinstall in case you
should later remove the
drive and not reinstall one in
the same bay.
50 Maintaining and Troubleshooting the Gateway ALR 9200 Server
Either type of device (IDE or SCSI) can be installed in the 5.25-inch
peripheral bays. The system board only provides a single IDE cable and
therefore only supports two IDE devices. The single narrow SCSI
connector on the system board supports up to seven devices. The last device
on the SCSI bus must be terminated.
Observe the safety and ESD precautions in"Static Electricity
1.
Precautions" on page 2. Also see the cabling considerations in "Drive
Cabling Considerations" on page 48.
2. Open the front door by rotating its right side out and to the left.
Remove the access cover, see "Opening the System" on page 3.
3.

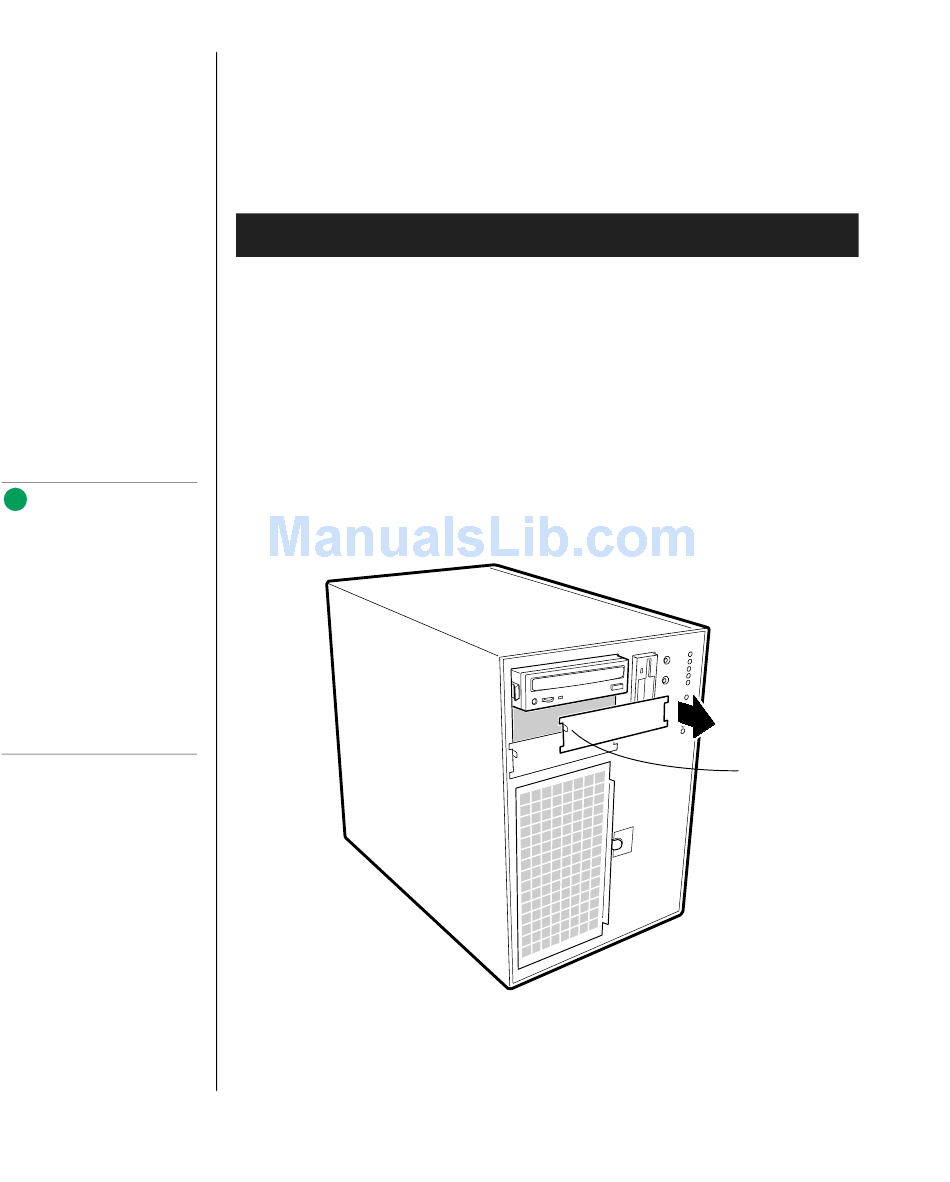

Push the tab (A in Figure 16) on the left side of the EMI metal shield
4.
to the right to disengage it from the chassis. Removeand save the
shield.
Figure 16: Removing the EMI Shield
To Install a 5.25-inch Device
Tab on EMI
metal shield
