Figure 126
ICONS menu
Figure 127
FONTS menu
Note
You can use the TPDesign3
software program to import
variable fonts into the panel.
Warning
You should only use the
FACTORY RESET button to
erase all stored data in the
touch panel. The data cannot
be recovered after it is
erased.

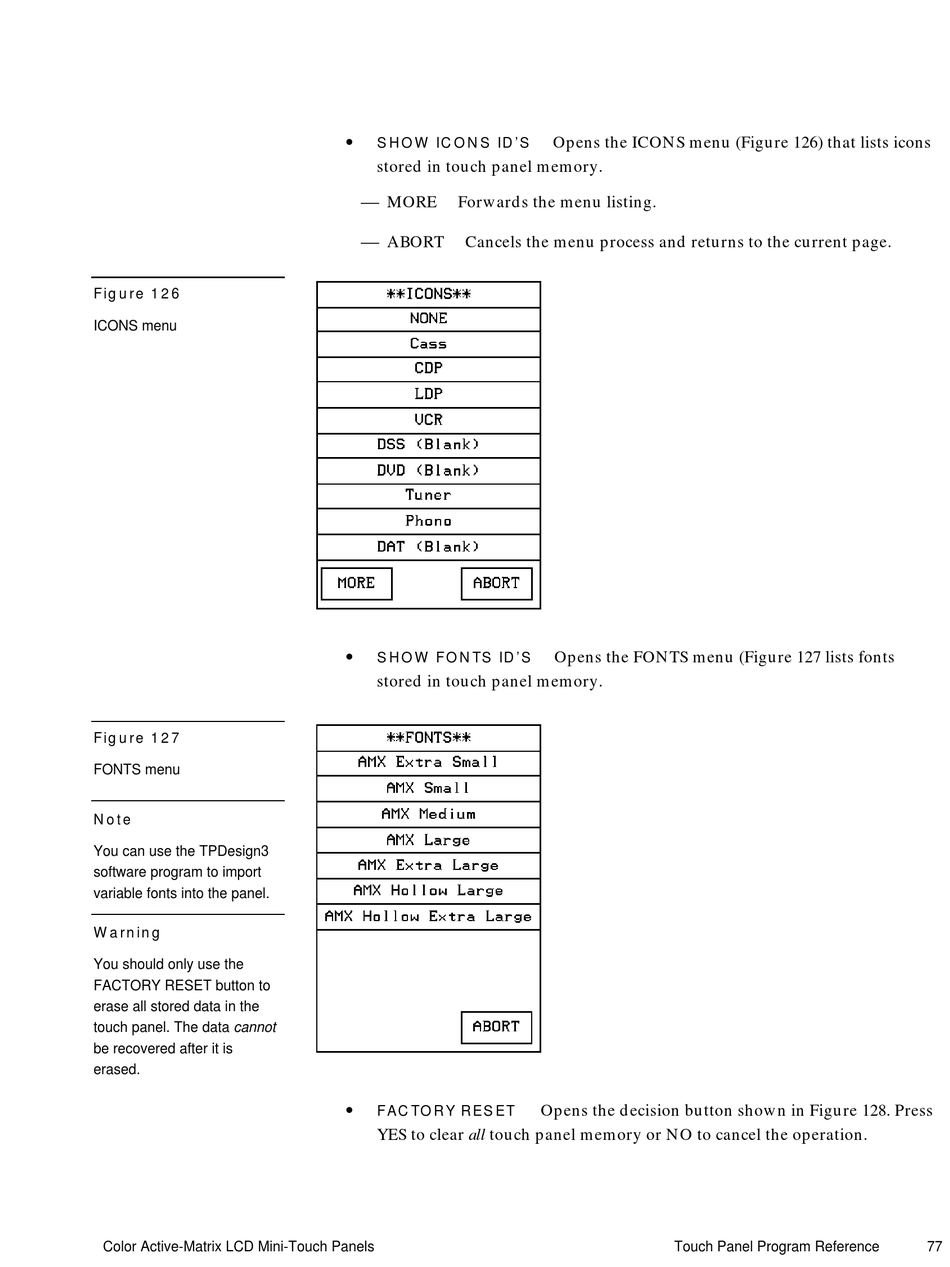

Color Active-Matrix LCD Mini-Touch Panels
SHOW ICONS ID'S
Opens the ICONS menu (Figure 126) that lists icons
stored in touch panel memory.
MORE
Forwards the menu listing.
ABORT
Cancels the menu process and returns to the current page.
SHOW FONTS ID'S
Opens the FONTS menu (Figure 127 lists fonts
stored in touch panel memory.
FACTORY RESET
Opens the decision button shown in Figure 128. Press
YES to clear all touch panel memory or NO to cancel the operation.
Touch Panel Program Reference
77
