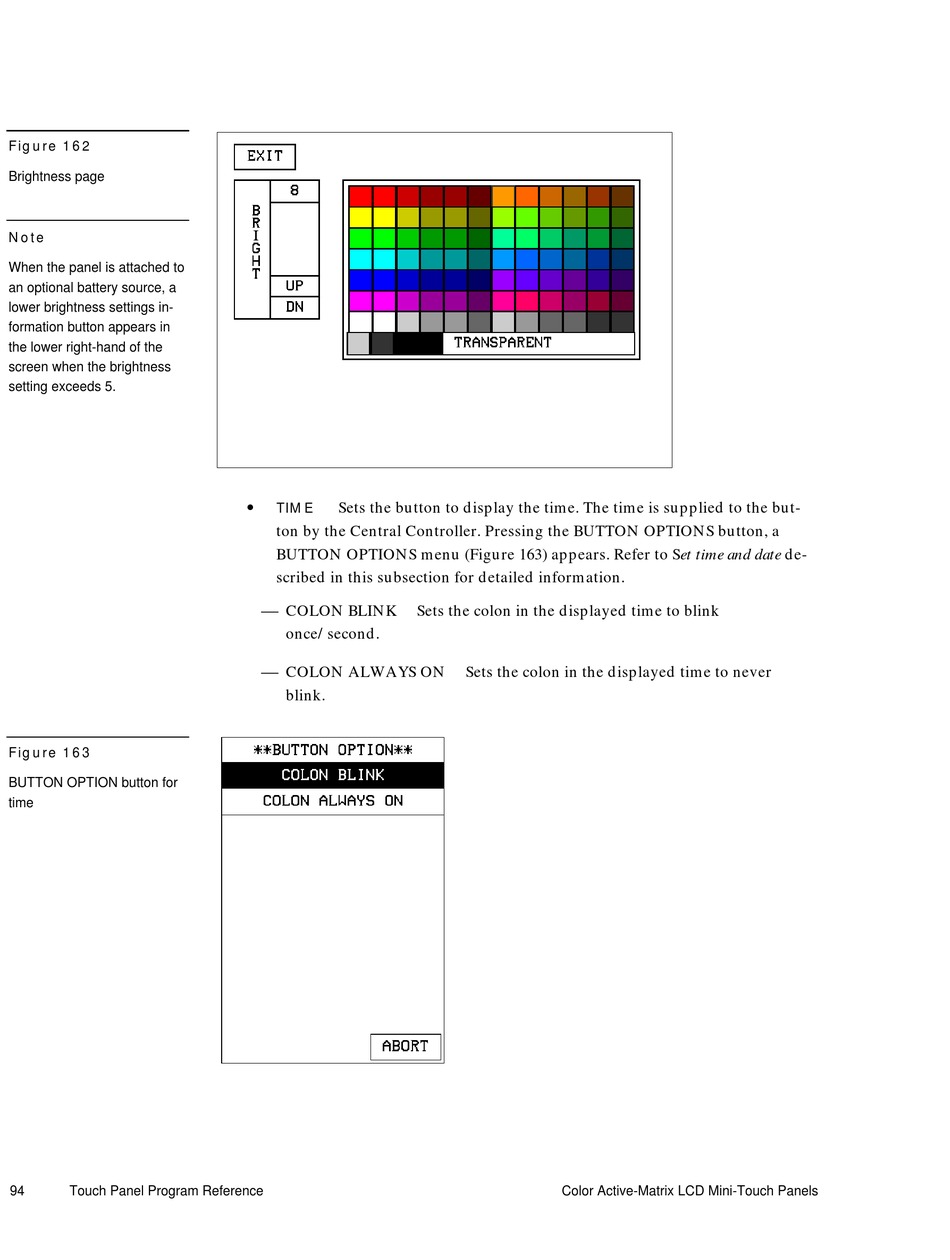

Figure 162
Brightness page
Note
When the panel is attached to
an optional battery source, a
lower brightness settings in-
formation button appears in
the lower right-hand of the
screen when the brightness
setting exceeds 5.
Figure 163
BUTTON OPTION button for
time
94
Touch Panel Program Reference
TIME
Sets the button to display the time. The time is supplied to the but-
ton by the Central Controller. Pressing the BUTTON OPTIONS button, a
BUTTON OPTIONS menu (Figure 163) appears. Refer to Set time and date de-
scribed in this subsection for detailed information.
COLON BLINK
Sets the colon in the displayed time to blink
once/second.
COLON ALWAYS ON
blink.
Sets the colon in the displayed time to never
Color Active-Matrix LCD Mini-Touch Panels
