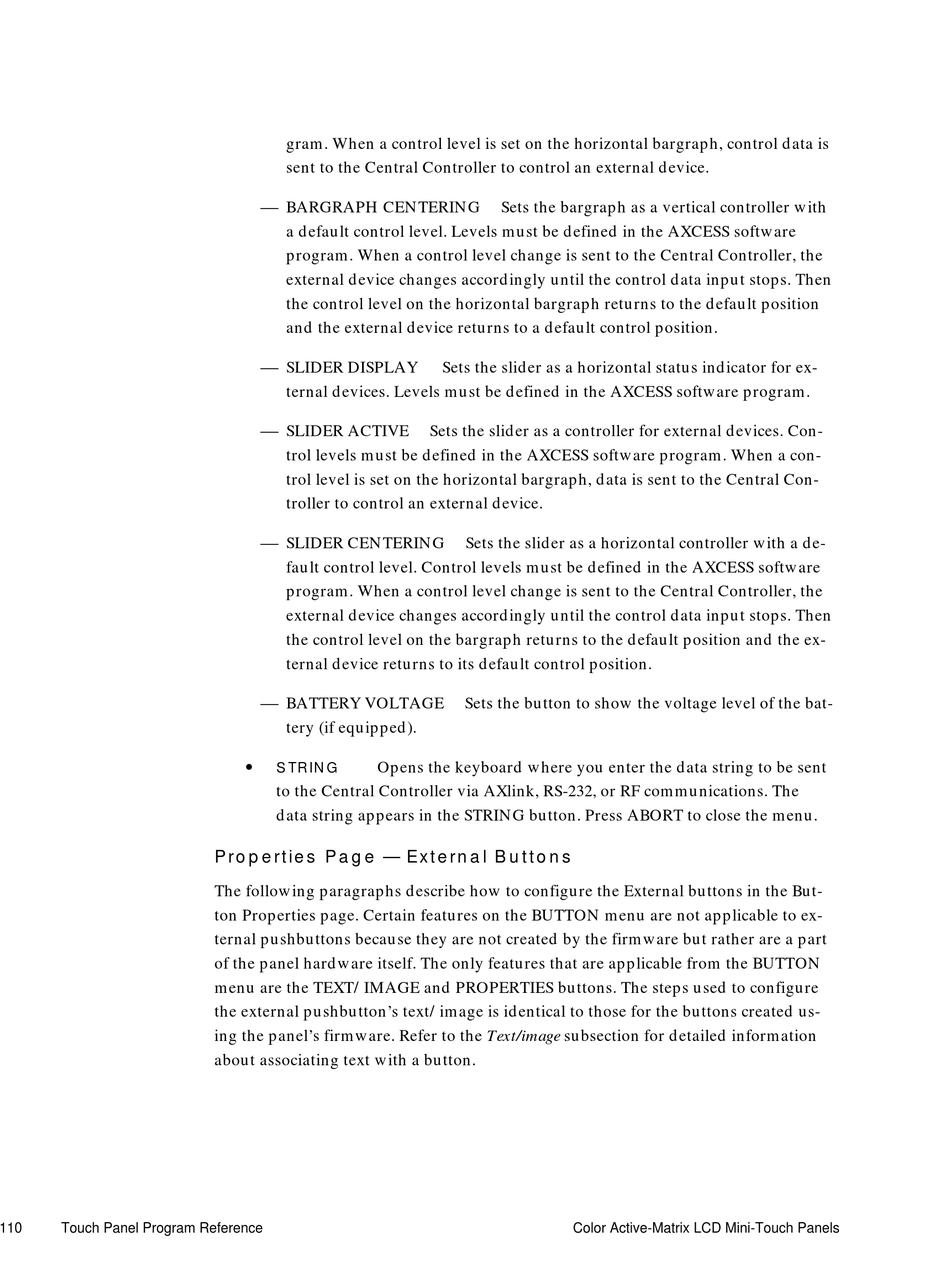

110 Touch Panel Program Reference
gram. When a control level is set on the horizontal bargraph, control data is
sent to the Central Controller to control an external device.
BARGRAPH CENTERING
a default control level. Levels must be defined in the AXCESS software
program. When a control level change is sent to the Central Controller, the
external device changes accordingly until the control data input stops. Then
the control level on the horizontal bargraph returns to the default position
and the external device returns to a default control position.
SLIDER DISPLAY
ternal devices. Levels must be defined in the AXCESS software program.
SLIDER ACTIVE
trol levels must be defined in the AXCESS software program. When a con-
trol level is set on the horizontal bargraph, data is sent to the Central Con-
troller to control an external device.
SLIDER CENTERING
fault control level. Control levels must be defined in the AXCESS software
program. When a control level change is sent to the Central Controller, the
external device changes accordingly until the control data input stops. Then
the control level on the bargraph returns to the default position and the ex-
ternal device returns to its default control position.
BATTERY VOLTAGE
tery (if equipped).
STRING
Opens the keyboard where you enter the data string to be sent
to the Central Controller via AXlink, RS-232, or RF communications. The
data string appears in the STRING button. Press ABORT to close the menu.
Properties Page — External Buttons
The following paragraphs describe how to configure the External buttons in the But-
ton Properties page. Certain features on the BUTTON menu are not applicable to ex-
ternal pushbuttons because they are not created by the firmware but rather are a part
of the panel hardware itself. The only features that are applicable from the BUTTON
menu are the TEXT/IMAGE and PROPERTIES buttons. The steps used to configure
the external pushbutton's text/image is identical to those for the buttons created us-
ing the panel's firmware. Refer to the Text/image subsection for detailed information
about associating text with a button.
Sets the bargraph as a vertical controller with
Sets the slider as a horizontal status indicator for ex-
Sets the slider as a controller for external devices. Con-
Sets the slider as a horizontal controller with a de-
Sets the button to show the voltage level of the bat-
Color Active-Matrix LCD Mini-Touch Panels
