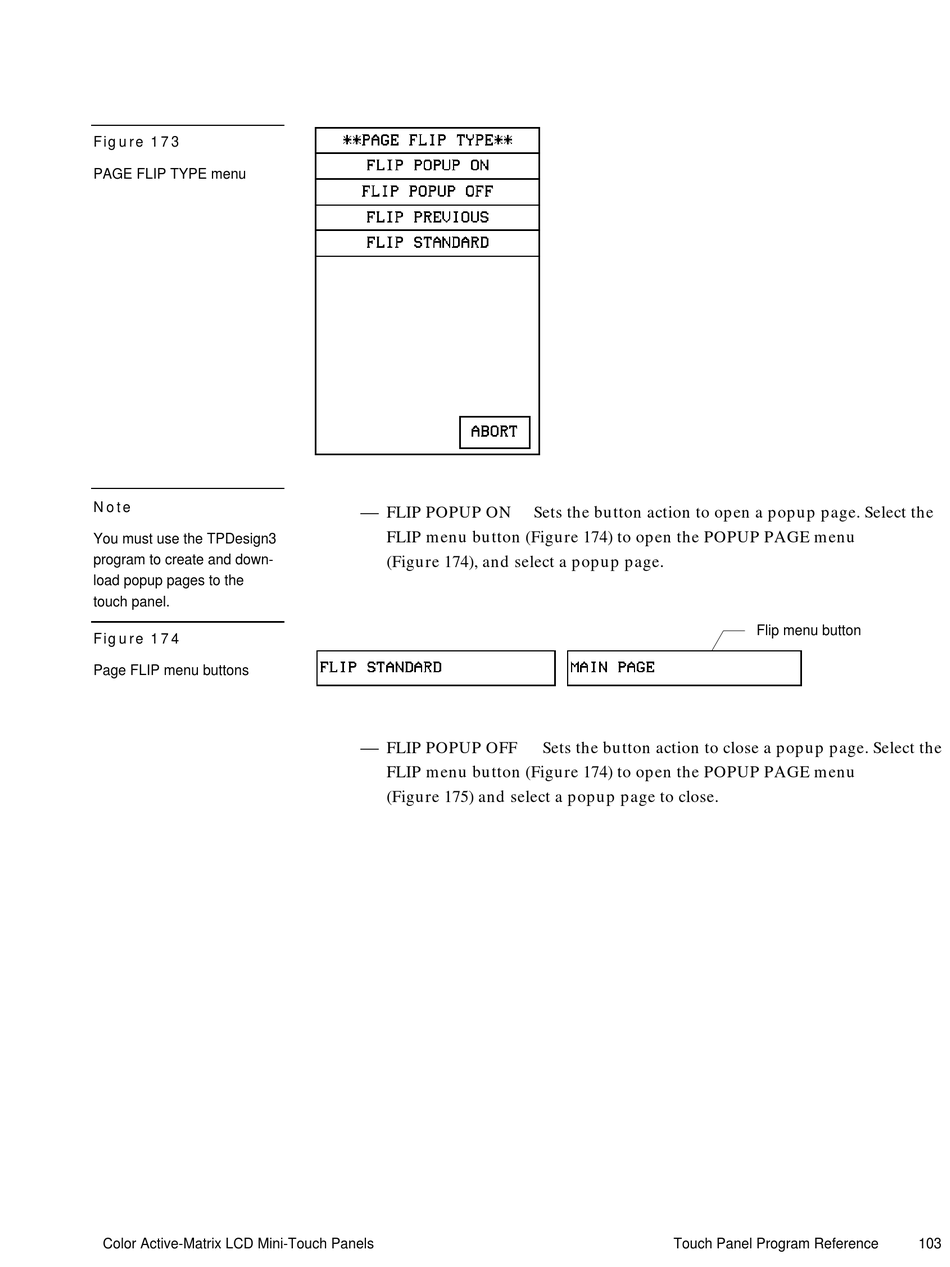

Figure 173
PAGE FLIP TYPE menu
Note
You must use the TPDesign3
program to create and down-
load popup pages to the
touch panel.
Figure 174
Page FLIP menu buttons
Color Active-Matrix LCD Mini-Touch Panels
FLIP POPUP ON
Sets the button action to open a popup page. Select the
FLIP menu button (Figure 174) to open the POPUP PAGE menu
(Figure 174), and select a popup page.
FLIP POPUP OFF
Sets the button action to close a popup page. Select the
FLIP menu button (Figure 174) to open the POPUP PAGE menu
(Figure 175) and select a popup page to close.
Flip menu button
Touch Panel Program Reference
103
