Memory

Main memory resides on an add-in board, called a memory module, designed specifically for the
InterServe 9000. The memory module contains slots for 16 dual in-line memory modules
(DIMMs), each of which must be at least 32 MB, and is attached to the baseboard through a 242-
pin connector. Memory amounts from 128 MB to 4 GB of DIMM are supported, with a 72-bit
four-way-interleaved pathway to main memory, which is also located on the module. The 16 slots
are divided into four banks of four slots each, labeled A through D. These banks support 4:1
interleaving. The memory controller supports EDO DRAMs. The ECC used for the memory
module is capable of correcting single-bit errors (SBEs) and detecting 100 percent of double-bit
errors over one code word. Nibble error detection is also provided.
J16
J15
J12
J11
J8
J7
J4
J3
22

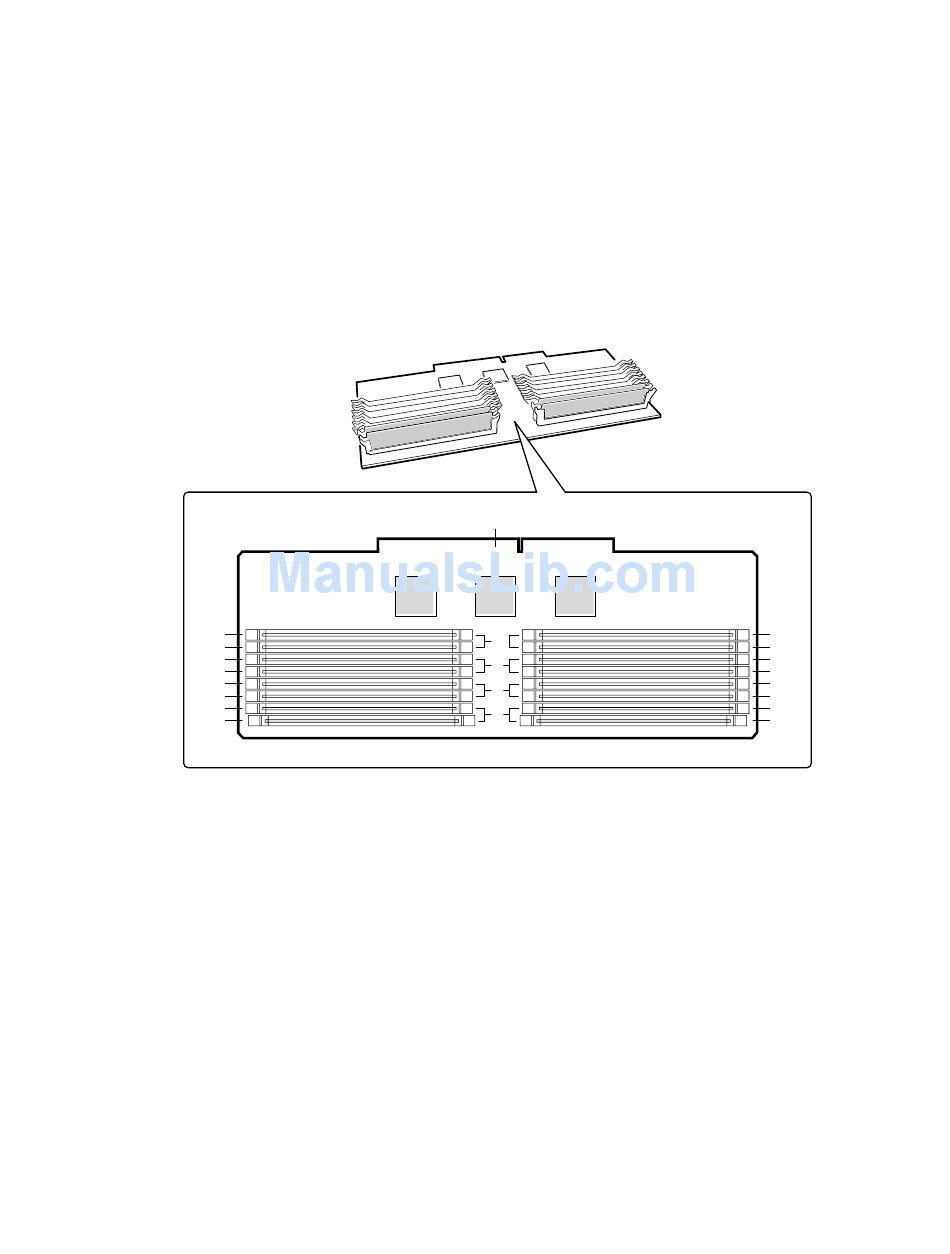

Figure 7. Memory Module DIMM Installation Sequence
A. Memory bank A (install first)
B. Memory bank B (install second)
C. Memory bank C (install third)
D. Memory bank D (install last)
E. Memory module connector
E
D
C
B
A
J14
J13
J10
J9
J6
J5
J2
J1
OM08009
