Chassis Front Controls and Indicators

A. External drive bay (5¼-inch); CD-ROM drive
B. Diskette drive
C. Power On/Off button (holding down this button for more than four seconds causes a
power-button override to the PIIX4E when you release the button)
D. Sleep/Service button (holding down this button for LESS THAN four seconds enters sleep
mode, which requires an advanced configuration and power interface (ACPI)-compliant
operating system; holding it down for MORE THAN four seconds enters service mode, which
powers down the electronics bay but leaves hot-swap and peripheral bays running)
E. Reset button
F. Front panel LEDs (top to bottom). Top five are power on, disk bay power on, disk drive
activity, power supply failure, fan failure. Bottom six are disk drive status (labeled 0-5)
G. System security lock
H. EMI shield lock
I. Internal drive bays (3½-inch). Five are shown installed, but maximum capacity is six.
J. Metal EMI shield
K. Expansion drive bay (5¼-inch)
L
K
K
J

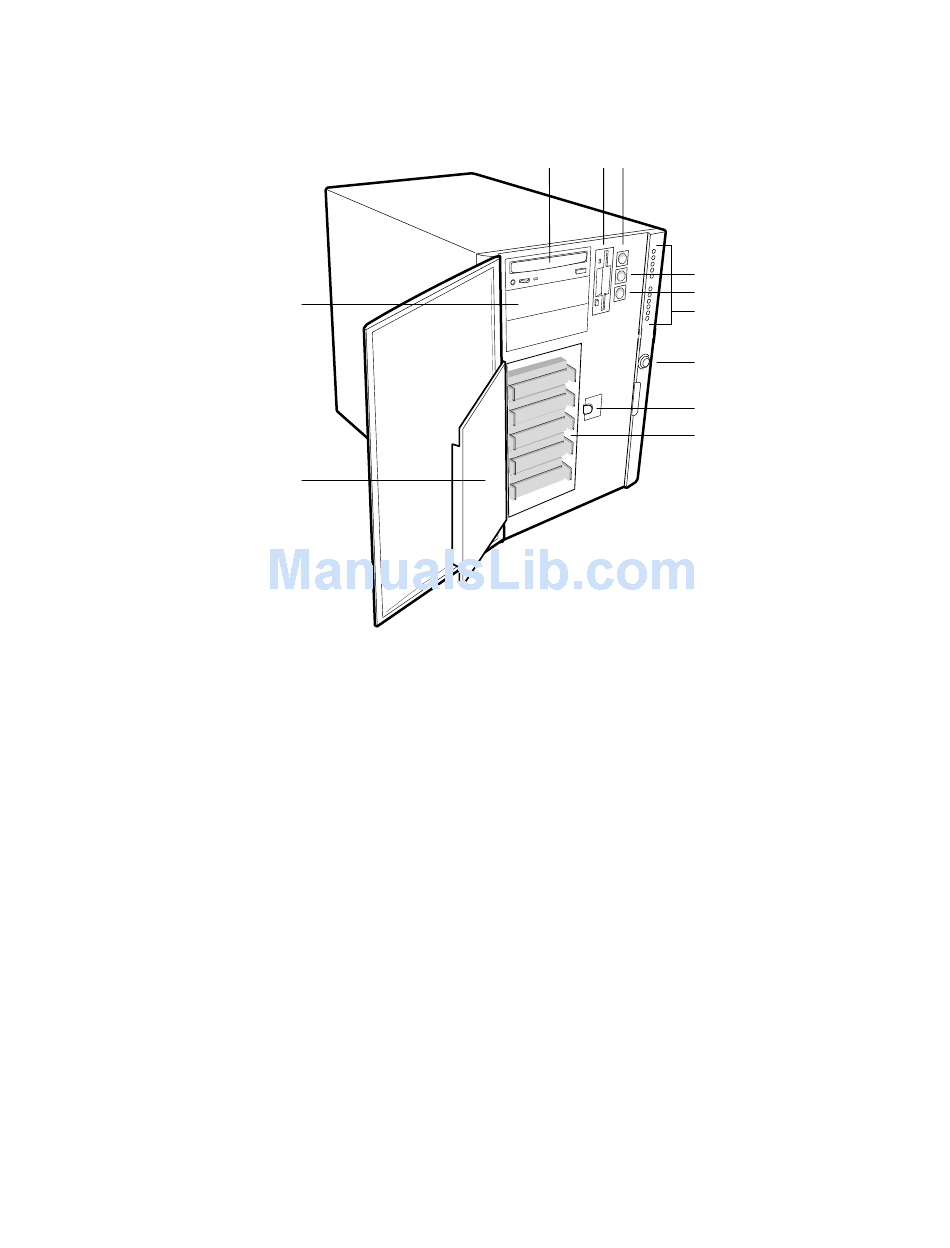

Figure 3. Front Controls and Indicators
A B C
D
E
F
G
H
G
I
H
J I
OM08001
13
