Chassis Back Controls and Features
A
C
E
A. Parallel port
B. Video Graphics Array (VGA)
C. Serial port A, COM1
D. Serial port B, COM2
E. Mouse connector
F.
Keyboard connector
G. Universal serial bus connector
H. Expansion slot covers (six slot connectors provided on baseboard)
I.
Power supply bay
J.
AC input power connector
K. Power supply fan
L.
Power supply LED
M. Power supply failure LED (LED not lit means failure)
N. External low voltage differential (LVD) SCSI port, wide connector
14
B
D
F
G

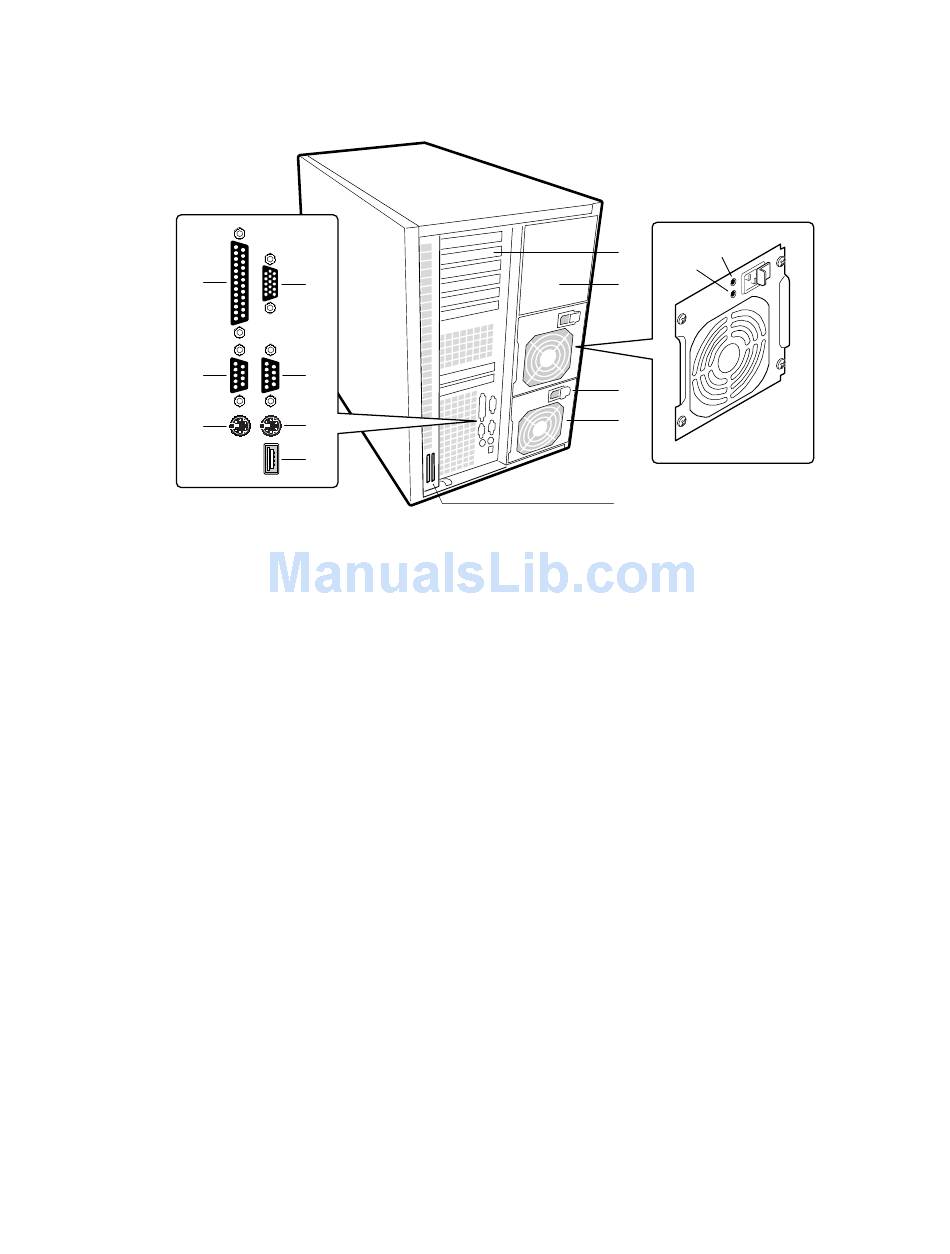

Figure 4. Back Controls and Indicators
†
monitor connector
M
H
L
I
J
K
N
OM08002
