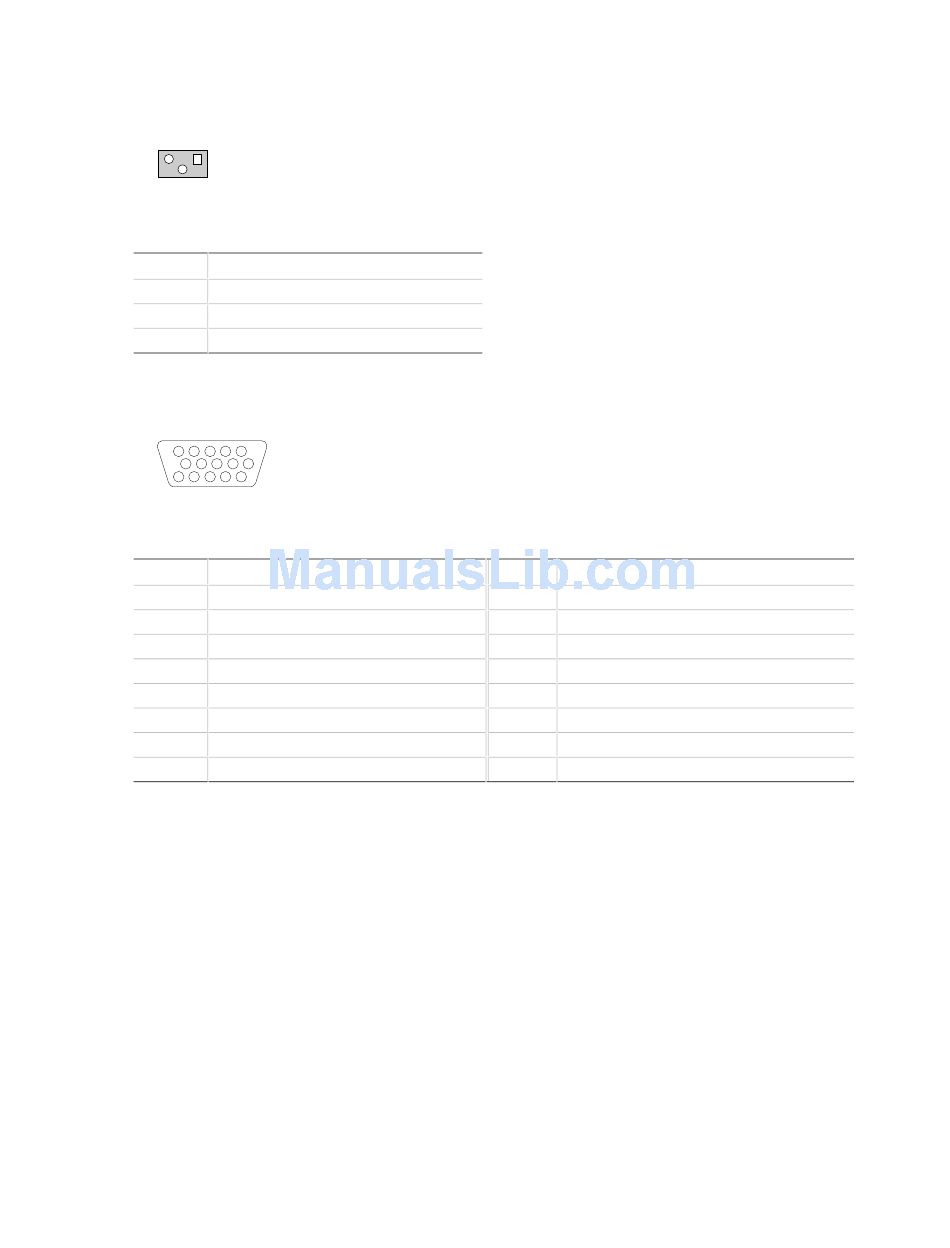

IPMB Connector
3
1
2
OM08035
Table 39.
IPMB Connector Pinout
Pin
Signal
1
LOCAL_I2C_SCL
2
GND
3
LOCAL_I2C_SDA
VGA Video Port
5
1
10
15
11
Table 40.
Video Port Connector Pinout
Pin
Signal
1
Red
2
Green
3
Blue
4
N/C
5
GND
6
GND
7
GND
8
GND
6
OM04417
Pin
Signal
9
N/C
10
GND
11
NC
12
DDCDAT
13
HSYNC
14
VSYNC
15
DDCCLK
