Front Panel Connector

A 30-pin connector attaches to the chassis front panel containing reset, NMI, sleep, and power
control switches, LED indicators, and IPMB connection.
29
30

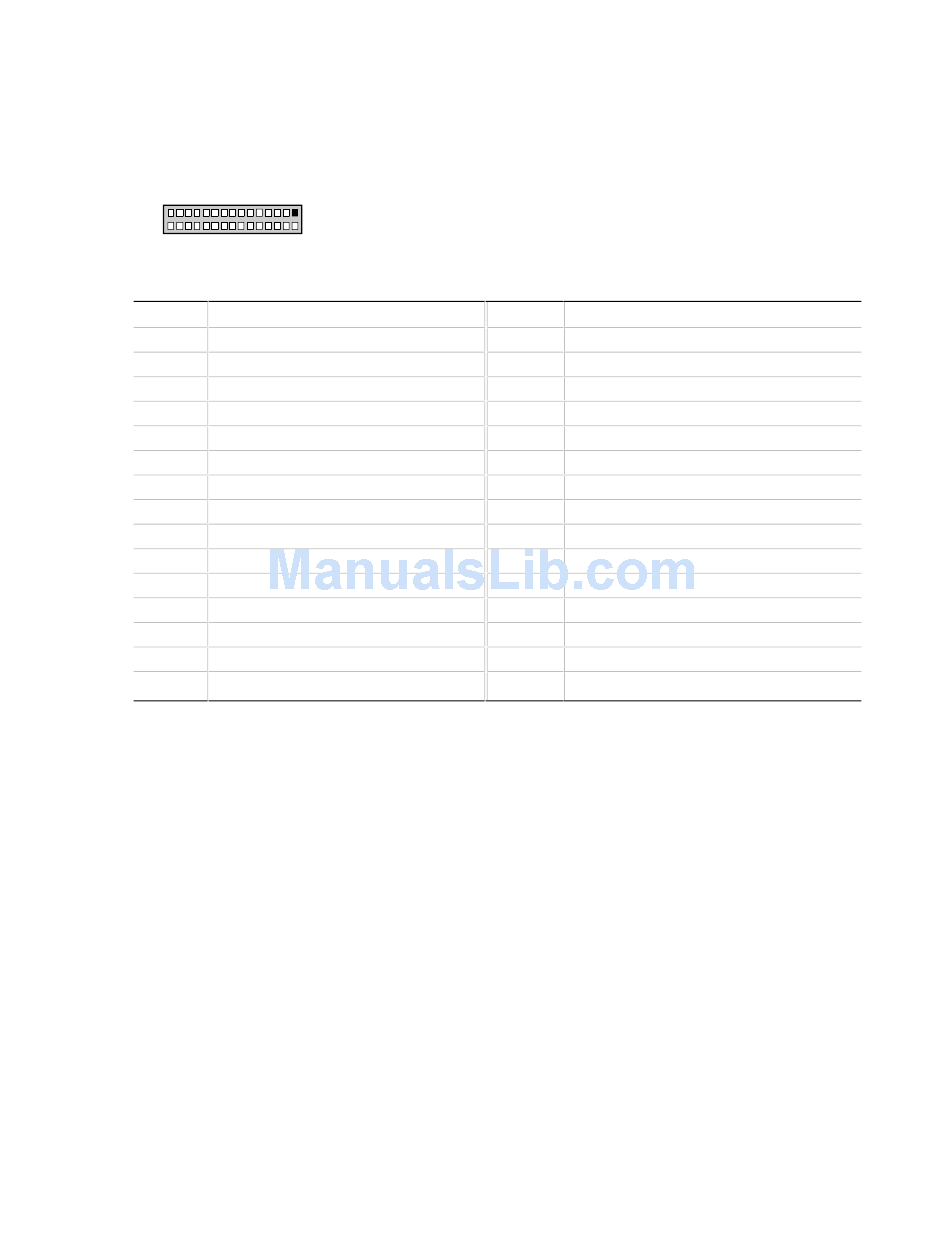

Table 37. Front Panel Connector Pinout
Pin Signal
1 SPEAKER_OUT
2 GND
3 CHASSIS_INTRUSION
4 FP_HD_ACT_L
5 +5V
6 SLEEP_CNTRL_l
7 FAN_FAILED_L
8 POWER_LED_L
9 POWER_FAULT_L
10 GND
11 I2C_SDA
12 NMI_FP_L
13 I2C_SCL
14 RST_FP_L
15 +5V standby
1
2
OM08031
Pin Signal
16 PWR_CNTRL_FP_L
17 FP_ISOL
18 GND
19 FAN_TACH(0)
20 FAN_TACH(1)
21 FAN_TACH(2)
22 FAN_TACH(3)
23 FAN_TACH(4)
24 FAN_TACH(5)
25 FAN_TACH(6)
26 FAN_TACH(7)
27 CLUSTER_LED
28 reserved
29 reserved
30 reserved
