Diskette Drive

Removing the Diskette Drive

1. Observe the safety and ESD precautions at the beginning of this chapter.
2. Remove the access cover (see page 83).
3. Disconnect the power and signal cables from the diskette drive. The connectors are keyed for
ease in reconnecting them to the drive.
4. Remove and save the screw that secures the diskette drive carrier to the 5.25-inch drive bay.
5. Slide the carrier toward the back of the chassis to disengage the tabs from the slots in the
bottom of the 5.25-inch drive bay.
6. Remove the carrier/drive from the chassis, and place it component-side up on an antistatic
surface.
7. Remove the three screws that hold the carrier to the drive, and set them and the carrier aside.
8. Place the drive in an antistatic protective wrapper if you are not reinstalling the same drive.
9. Reinstall the access cover using the original screws.
B
A

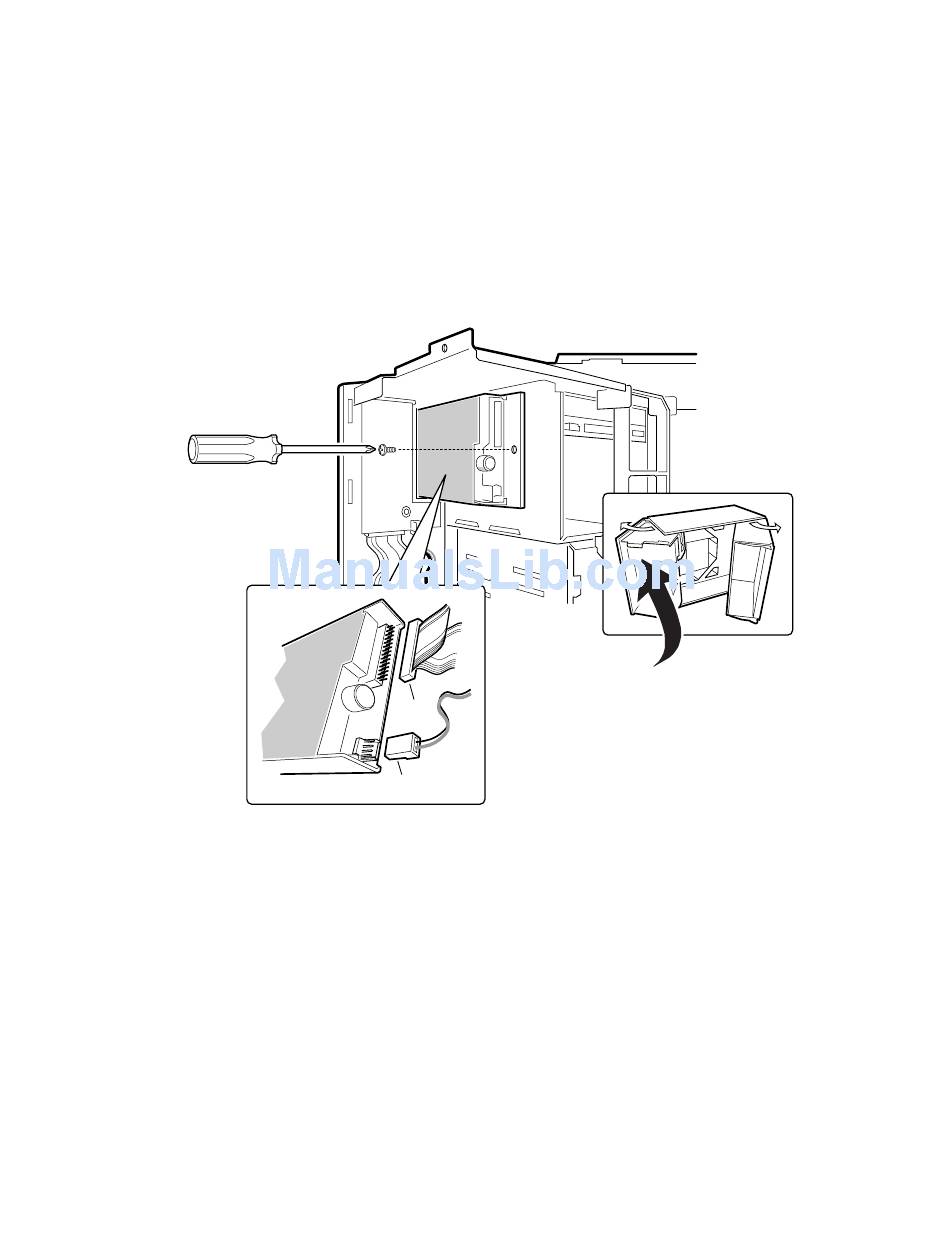

Figure 27. Removing the Diskette Drive from the Chassis
A
B
Power cable
Signal cable
OM08011a
89
