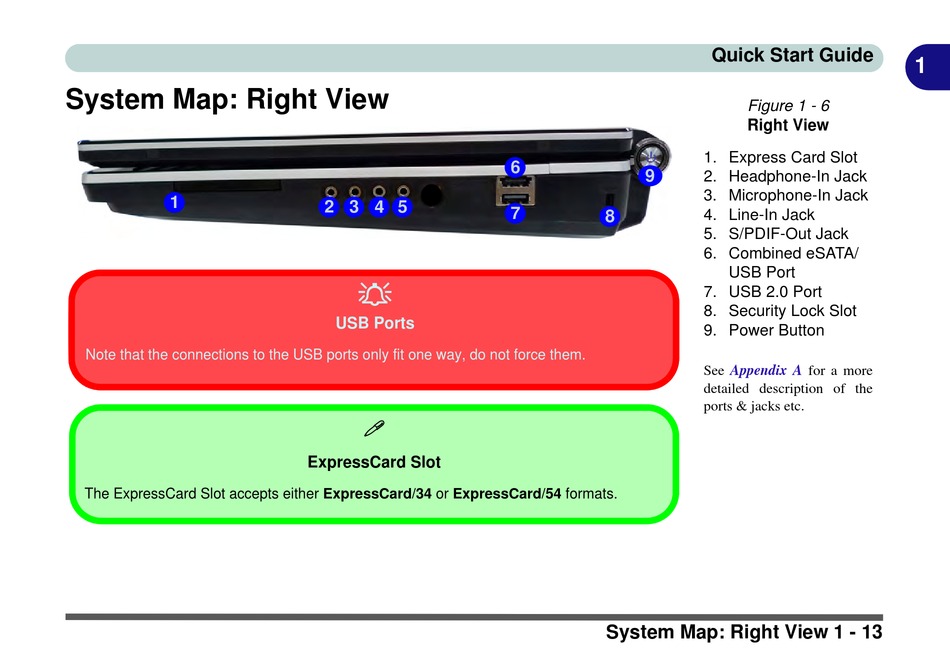

System Map: Right View

1
Note that the connections to the USB ports only fit one way, do not force them.
The ExpressCard Slot accepts either ExpressCard/34 or ExpressCard/54 formats.
2 3 4 5

USB Ports

ExpressCard Slot
6
9
7
8
System Map: Right View 1 - 13
Quick Start Guide
Figure 1 - 6
Right View
1. Express Card Slot
2. Headphone-In Jack
3. Microphone-In Jack
4. Line-In Jack
5. S/PDIF-Out Jack
6. Combined eSATA/
USB Port
7. USB 2.0 Port
8. Security Lock Slot
9. Power Button
See Appendix A for a more
detailed description of the
ports & jacks etc.
