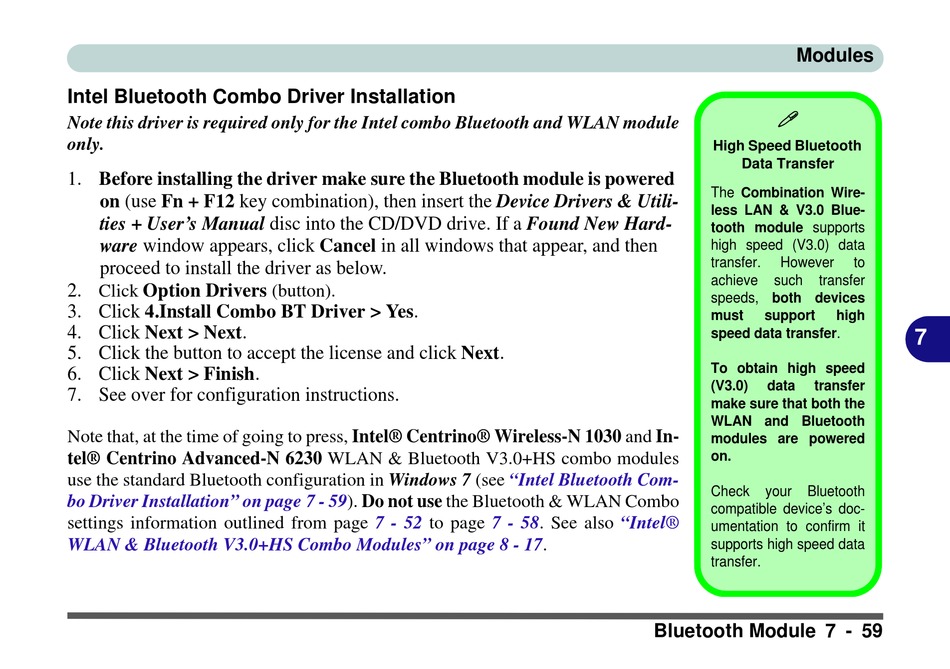

Intel Bluetooth Combo Driver Installation - EUROCOM Notebook User Manual

Intel Bluetooth Combo Driver Installation

Note this driver is required only for the Intel combo Bluetooth and WLAN module
only.
1. Before installing the driver make sure the Bluetooth module is powered
on (use Fn + F12 key combination), then insert the Device Drivers & Utili-
ties + User's Manual disc into the CD/DVD drive. If a Found New Hard-
ware window appears, click Cancel in all windows that appear, and then
proceed to install the driver as below.
2. Click Option Drivers (button).
3. Click 4.Install Combo BT Driver > Yes.
4. Click Next > Next.
5. Click the button to accept the license and click Next.
6. Click Next > Finish.
7. See over for configuration instructions.
Note that, at the time of going to press, Intel® Centrino® Wireless-N 1030 and In-
tel® Centrino Advanced-N 6230 WLAN & Bluetooth V3.0+HS combo modules
use the standard Bluetooth configuration in Windows 7 (see
bo Driver Installation" on page 7 -
settings information outlined from page
WLAN & Bluetooth V3.0+HS Combo Modules" on page 8 -
59). Do not use the Bluetooth & WLAN Combo
7 - 52 to page 7 -
"Intel Bluetooth Com-
58. See also "Intel®
17.
Bluetooth Module 7 - 59
Modules

High Speed Bluetooth
Data Transfer
The Combination Wire-
less LAN & V3.0 Blue-
tooth module supports
high speed (V3.0) data
transfer. However to
achieve such transfer
speeds, both devices
must support high
speed data transfer.
To obtain high speed
(V3.0) data transfer
make sure that both the
WLAN and Bluetooth
modules are powered
on.
Check your Bluetooth
compatible device's doc-
umentation to confirm it
supports high speed data
transfer.
7
