Upgrading The Computer

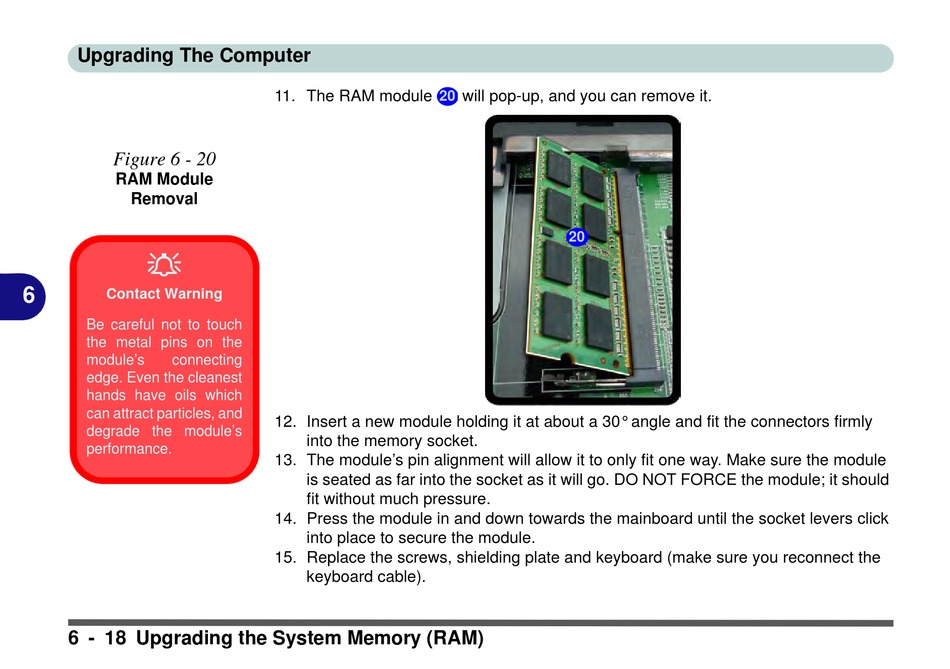

Figure 6 - 20
RAM Module
Removal

6
Contact Warning
Be careful not to touch
the metal pins on the
module's connecting
edge. Even the cleanest
hands have oils which
can attract particles, and
degrade the module's
performance.
6 - 18 Upgrading the System Memory (RAM)
11. The RAM module
20
12. Insert a new module holding it at about a 30° angle and fit the connectors firmly
into the memory socket.
13. The module's pin alignment will allow it to only fit one way. Make sure the module
is seated as far into the socket as it will go. DO NOT FORCE the module; it should
fit without much pressure.
14. Press the module in and down towards the mainboard until the socket levers click
into place to secure the module.
15. Replace the screws, shielding plate and keyboard (make sure you reconnect the
keyboard cable).
will pop-up, and you can remove it.
20
