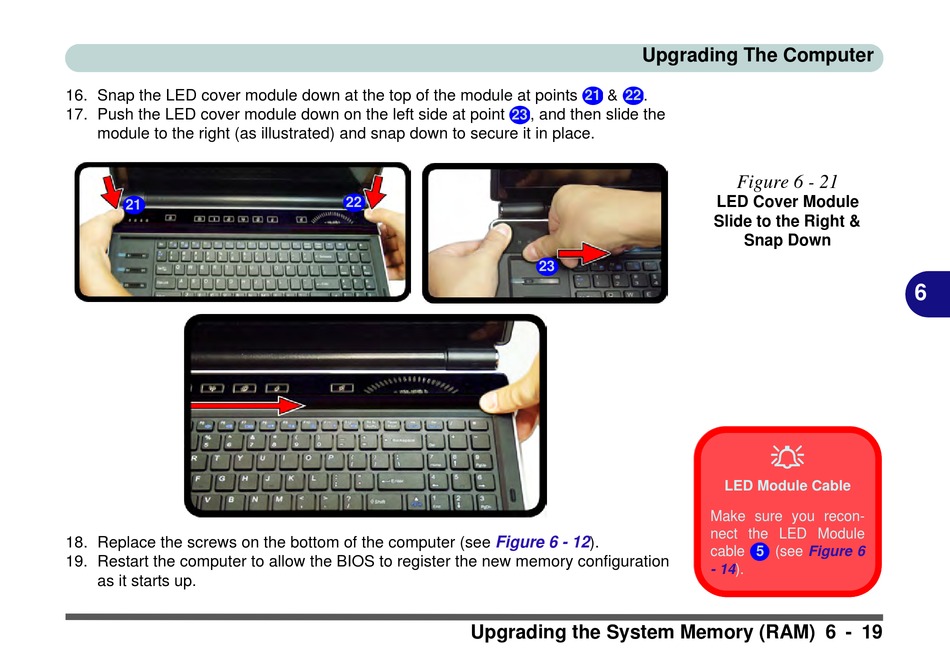

16. Snap the LED cover module down at the top of the module at points
17. Push the LED cover module down on the left side at point
module to the right (as illustrated) and snap down to secure it in place.
21
18. Replace the screws on the bottom of the computer (see
19. Restart the computer to allow the BIOS to register the new memory configuration
as it starts up.
23
22
Figure 6 -
Upgrading the System Memory (RAM) 6 - 19
Upgrading The Computer
& .
21 22
, and then slide the
23
Make sure you recon-
nect the LED Module
12).
cable
-
Figure 6 - 21
LED Cover Module
Slide to the Right &
Snap Down

LED Module Cable
5 (see Figure 6
14).
