Upgrading The Computer

Warranty Warning
Please check with your
service representative
before undertaking any
upgrade procedures to
find out if this will VOID
your warranty.
6

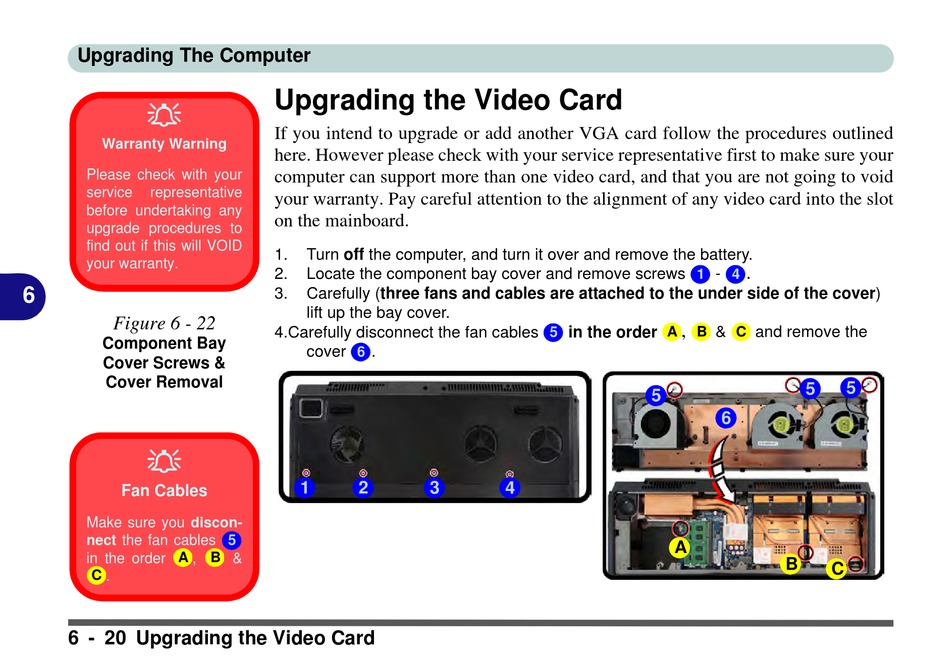

Figure 6 - 22
Component Bay
Cover Screws &
Cover Removal

Fan Cables
Make sure you discon-
nect the fan cables
in the order A ,
C
.

6 - 20 Upgrading the Video Card

Upgrading the Video Card
If you intend to upgrade or add another VGA card follow the procedures outlined
here. However please check with your service representative first to make sure your
computer can support more than one video card, and that you are not going to void
your warranty. Pay careful attention to the alignment of any video card into the slot
on the mainboard.
1. Turn off the computer, and turn it over and remove the battery.
2. Locate the component bay cover and remove screws
3. Carefully (three fans and cables are attached to the under side of the cover)
lift up the bay cover.
4.Carefully disconnect the fan cables
cover .
6
1 2
5
B &
in the order
5
3 4
.
-
1 4
,
A B & C and remove the
5
5
6
A
B
C
5
