EUROCOM Notebook User Manual page 130

Upgrading The Computer

Caution
The heat sink, and video
card area in general,
contains parts which are
subject to high tempera-
tures. Allow the area
time to cool before re-
moving these parts.
6

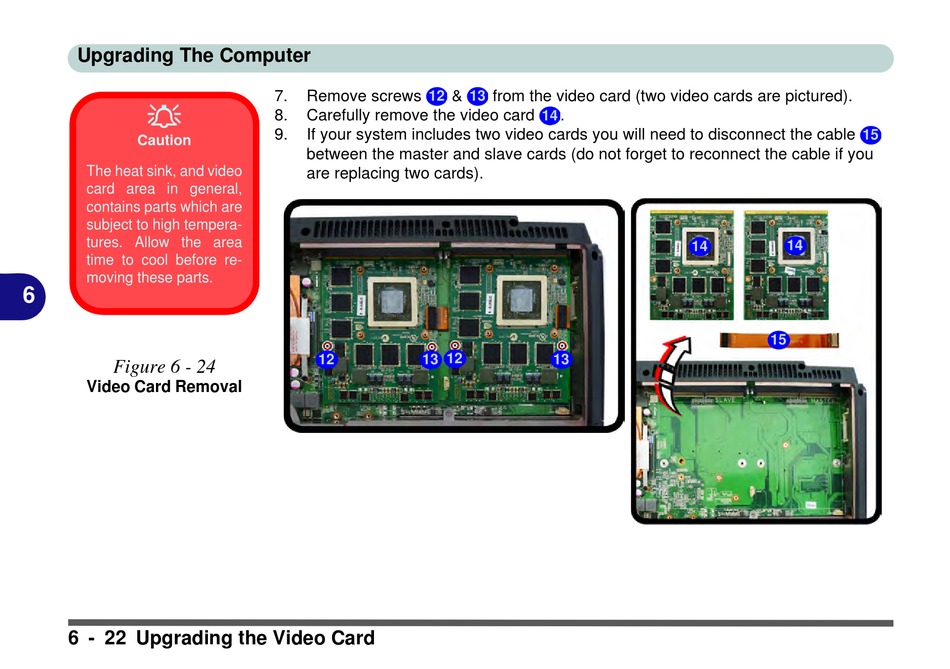

Figure 6 - 24
Video Card Removal
6 - 22 Upgrading the Video Card
7. Remove screws &
12
8. Carefully remove the video card
9. If your system includes two video cards you will need to disconnect the cable
between the master and slave cards (do not forget to reconnect the cable if you
are replacing two cards).
12
12 13
from the video card (two video cards are pictured).
13
.
14
13
15
14
14
15
