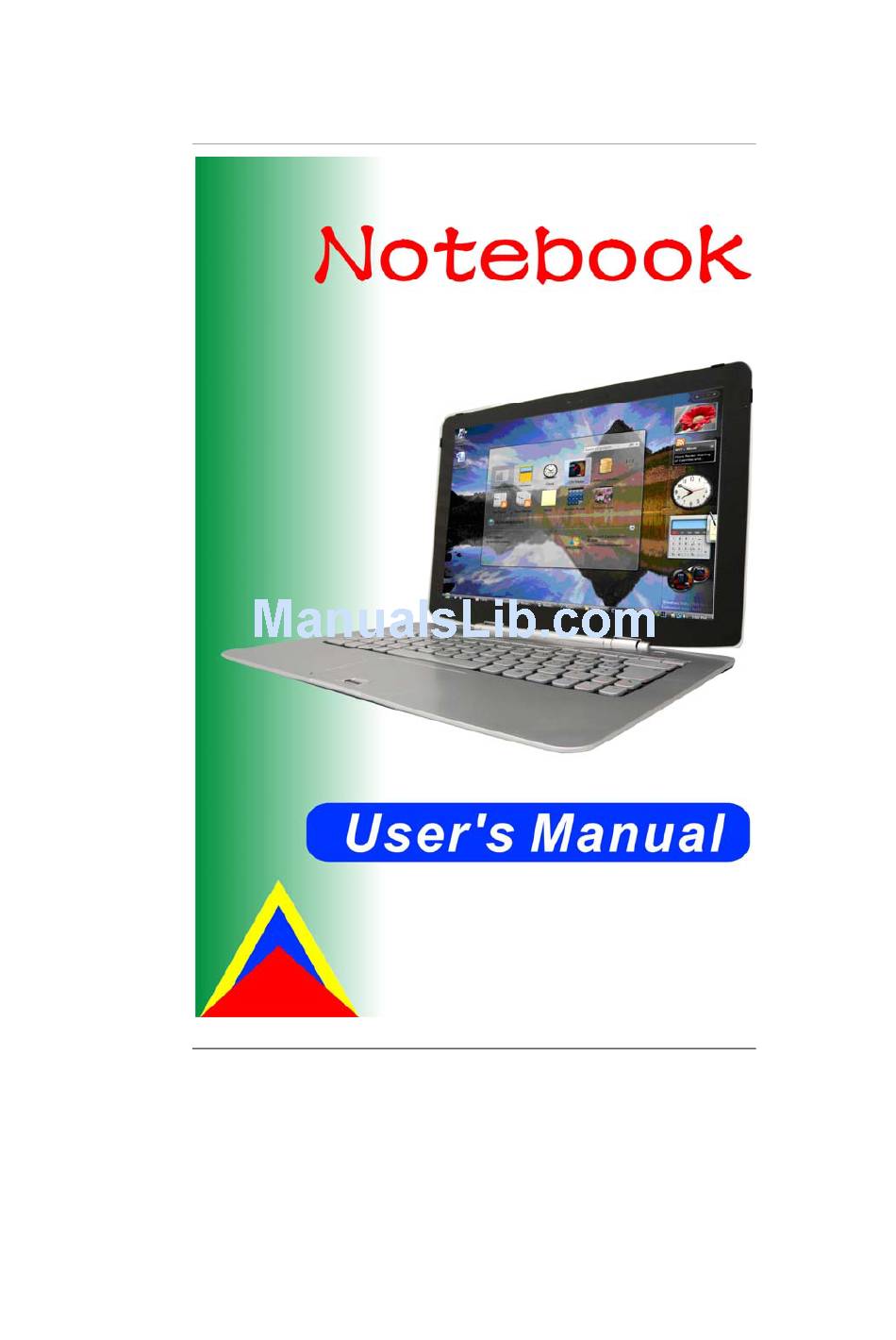

EUROCOM Notebook User Manual

Hide thumbs Also See for Notebook:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Manual
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Notebook and is the answer not in the manual?

Questions and answers

Related Manuals for EUROCOM Notebook

Summary of Contents for EUROCOM Notebook

  • Page 3 Preface © Copyright 2008 © All Rights Reserved. The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if...
  • Page 4 Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio TV technician for help This device complies with Part 15 of the FCC Rules.

  • Page 5: Table Of Contents

    Table of Content ................2 EFORE YOU TART ..........9 ET YOUR COMPUTER ACCLIMATE ITSELF ............9 UMIDITY LARE ..............9 UITABLE PLACE TO WORK ..................11 NTRODUCTION ..................12 RONT ..................14 ...................15 OTTOM ................19 ETTING TARTED AC A ............19 ONNECTING THE DAPTER :............21 NSTALL THE ATTERY : ............22 EMOVE THE...
  • Page 6 ..............66 INGER PRINTER PPLICATION ....................69 ENSOR ...........73 NABLE ISABLE OTATE CREEN ................75 ROUBLESHOOTING ................76 O SPEAKER OUTPUT ............76 OUND CANNOT BE RECORDED ..77 HE HARD DISK DRIVE DOES NOT WORK OR IS NOT RECOGNIZABLE .....77 HE HARD DRIVE IS MAKING ABNORMAL WHINING NOISES ......77 HE HARD DISK DRIVE HAS REACHED ITS CAPACITY ........78...

  • Page 8: Before You Start

    Use this manual will help you get the most from your notebook computer. If you are an experienced user of computers and/or Microsoft’s Windows operating systems, you might find it useful to read the Quick Start Guide that comes along with your accessories.
  • Page 9 Make sure to use the right voltage for the power source when connecting the equipment to the power outlet. Place the power cord in such a way that people can not step on it. Do not place anything on top of the power cord. All cautions and warnings on the equipment should be noted.
  • Page 10 The minimum specifications for the flexible cord are No. 18 AWG, (2) Type SPT-2, and (3) 2-conductor. For Japan: All components of the cord set must bear a “PSE” mark and in accordance with the Japanese Dentori Law. The minimum specifications for the flexible cord are .75m ㎡...
  • Page 11 Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special instructions. Do not use the AC adapter near open water or other liquids. Never spill liquid into the AC adapter.
  • Page 12 Bitte lesen Sie diese Hinweis sorgfältig durch. Heben Sie dirse Anleitung für den späteren Gebrauch auf. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Versenden Sie Keine Flüssig- oder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung. Die Netzanschluβsteckdose soll nahe dem Gerät angebracht und leicht zugänglich sein.
  • Page 13 einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers. Dieses Schaltnetzteil kann bis zu einer Außentemperatur von maximal 5ºC 35ºC. Die Ausgangswerte dürfen nicht die auf dem Label angegebenen Werte überschreiten. Anforderungen an das Stromkabel Das Kabel-Set, das an das Netzteil angeschlossen wird, muss den Anforderungen des Landes, in dem Sie das Netzteil einsetzen, genügen, je nachdem, ob die Netzspannung 100- 240V Wechselspannung beträgt.
  • Page 14 Das Kabel muss vom HAR (harmonisierten) Typ H03VVH2-F sein. Das Kabel-Set muss eine Stromkapazität von mindestens 2,5 Ampere haben und Spannungen von 125 oder 250 V Wechselstrom gestatten. ACHTUNG: Mit dem T30II*/T30IL*(*=0~9) muss ein AC-Adapter folgenden Modells verwendet werden Hersteller: Delta Electronics, Inc Modell: ADP-65HB AD (65W) (Der Adapter kann nur mit dem Ausgangsvervielfältiger verbunden werden.) Bei der Benutzung Ihres Telefongerätes sollten Sie immer die...

  • Page 15: Let Your Computer Acclimate Itself

    Your notebook can easily stand temperature extremes but it doesn’t like rapid changes in temperature, like going from the cold outdoors to a warm office. Rapid changes in temperature can cause water droplets to condense inside your case, threatening to damage the electronic parts inside.

  • Page 17: Introduction

    Install the battery pack Connecting the AC adapter Opening the display panel Turning on your computer...

  • Page 18: Front View

    With the LCD screen open, you will see several features important for operating your notebook computer. To avoid damage to the display panel: 1. Try not to slam the display upon closing it. 2. Try not to place any object on top when it is closed or open. 3.
  • Page 19 LED Status Indicator LED Graphic Indication Symbol Solid white indicates the WLAN is active. Battery status Charging – Orange light flashing Full – Green Low – Red light flashing Solid white indicates the hard drive and/or optical drive is being accessed. Light Sensor The system provides a Light-to-voltage converter module which is a sensor directly proportional to...

  • Page 20: Rear View

    Press and hold for at least 4 seconds to turn off the system. Press the power / suspend button again to return from the suspend mode. Touchpad Touchpad Buttons Fingerprint DC In HDMI Port Stereo Headphone Jack USB 2.0 Port...

  • Page 21: Bottom View

    Battery latch Second Battery Connector (Optional) After using, be sure to close the 2 Battery connector door. When not using the 2 battery, please make sure the door is always close. Battery Compartment Battery Lock...
  • Page 22 This system provides you with a port replicator that gives you a convenient way to attach external devices such as a monitor, a full- size keyboard, or an AC power adapter. The port replicator lets you make all of those connections in one step.
  • Page 23 DC In (65W adapter) (Optional) USB 2.0 Port USB 2.0 Port Main DC In...

  • Page 25: Started

    A universal AC adapter is provided to supply your computer with power and also charge the computer’s battery pack. The adapter’s AC input voltage can range anywhere from 100 to 240 volts, covering the standard voltages available in almost every country. To connect the computer to an external power source: Do not use inferior extension cords as this may result in damage to your notebook.
  • Page 26 Never turn off or reset your notebook while the hard disk is in use status icon is lit; doing so can result in loss or destruction of your data. Always wait at least 5 seconds after turning off your notebook before turning it back on;...

  • Page 28: T R B Pack

    The installed battery pack charges automatically any time the computer is connected to the AC adapter and an external power source. It is a good idea to occasionally discharge the battery pack fully to preserve its operating performance.

  • Page 30: Using The Notebook Computer

    The LCD screen display can be adjusted by the following key combinations. Fn + F2 Changes Display Mode: LCD only, CRT + LCD, CRT only, HDMI + LCD, HDMI only. Fn + F6 Increases the brightness level. Fn + F7 Decreases the brightness level.
  • Page 31 HDMI only You can switch between these display configurations by pressing the key combination [Fn] + [F2]. ’ ’ Action System Control Fn + F1 Enters Suspend Mode. Fn + F2 Changes Display Mode: LCD only, CRT + LCD, CRT only, HDMI + LCD, HDMI only.
  • Page 32 WLAN On/Off Fn + Bluetooth On/Off Fn + HSPA On/Off Fn + Brightness Fn + Mute On/Off Fn + Volume Fn + Auto Brightness On/Off This mode clearly defines the Light Sensor application as described in previous chapter to automatically adjust the backlight environment for your LCD brightness.
  • Page 33 your screen. Vertically - Right or Left Horizontally Top or Bottom Live Power is a saving scheme technique that provides saving your battery consumption by disabling some devices thus extending the battery life. Click on the Live Power icon from the lower right bar of your screen to open up the Live Power Display.

  • Page 34: Power Saving Mode

    LCD Brightness: Level 1 HDD Off: Idle after 3 minutes CPU Speed: Level 0 Sleep: Idle after 5 minutes LCD Off: Idle after 5 minutes Hibernate: Idle after 10 minutes LCD Brightness: Level 5 HDD Off: Idle after 30 minutes CPU Speed: Maximum level Sleep: Idle after 1 hour LCD Off: Idle after 15 minutes...

  • Page 35: High Performance Mode

    LCD Brightness: Level 5 HDD Off: Never CPU Speed: Maximum level Sleep: Never LCD Off: Never Hibernate: Never LCD Brightness: Level 5 HDD Off: Idle after 4 hours CPU Speed: Maximum level Sleep: Idle after 1 hour LCD Off: Idle 4 hours Hibernate: Idle after 1 hour...

  • Page 36: Mode

    CPU Loading Battery High Middle plus Middle life% 50% up 30% up 4%up <4% level High Performance High Performance High Performance Normal mode mode mode mode level High Performance High Performance Normal Normal mode mode mode mode level High Performance Power Normal mode Normal mode...

  • Page 37: Touch Pad Precautions

    The TouchPad is a pressure sensitive device. Please take note of the following precautions. Make sure the TouchPad does not come into contact with dirt, liquids or grease. Do not touch the TouchPad if your fingers are dirty. Do not rest heavy objects on the TouchPad or the TouchPad buttons.

  • Page 38: P B P U Bc

    See Battery Status later in this section for a description and explanation of the Windows Battery icon. Charging the battery takes about 2.5 hours to charge when the system is in off state. If possible, always charge the battery completely. If you use the battery so frequently that it exceed more than 20 times by fully discharging/charging in a single month alone, we recommend you to perform the...

  • Page 39: A B Pcf

    In general, using the battery until the low-low battery-warning indicator appears and fully recharges the battery each time (full discharge/charge cycle) will ensure the accurate reporting of the battery gauge status. To charge the battery, while the battery pack is in the notebook, plug the AC adapter into the notebook and an electrical outlet.
  • Page 40 Beeping Battery Low Low: Indicates that there is 1 to 2 accelerates minutes of battery charge remaining. Save your work and turn off the notebook, or connect the AC adapter. When there is only one minute of battery charge remaining, the notebook will suspend to the HDD and power off.

  • Page 41: Help Windows

    Windows Vista help, click Start Help and Support icon will open dialog box. Desktop may vary differently on the software installed in your notebook with different or additional shortcuts.
  • Page 42 Used for storing deleted files in case you want to recover and save it in your system. The files will only be deleted from the Recycle Bin permanently only if you empty it by right clicking your mouse and select the “Empty Recycle Bin”. Allows easy access to all Windows programs.
  • Page 43 The Start menu allows you to adapt and show the programs used most frequently. If you wish to keep an item, right click the item and click Pin to Start menu. Log Off will enable the current user to log off and allows a new user to log on.
  • Page 44 It is in this area that you can change how Windows looks and works. Click Start Control Panel dialog box. There are two interfaces – Classic View.

  • Page 46: Internet Connection

    For you connect to the Internet, a wired LAN environment normally uses the company’s LAN or a broadband modem.
  • Page 47 Bluetooth is a developing, world wide, open, short-range radio specification focused on communication between the Internet and Net devices, plus it defines communication protocols between devices and computers. It connect wirelessly to your world: In home, at work, in motion and at play.
  • Page 48 This will be the display that will appear on your screen. If the system detects any other devices, it will be shown as illustrated in the Bluetooth setting window:...

  • Page 50: Running Bios Setup

    The Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/Output System). It runs and maintains a variety of hardware functions. It is menu-driven software, which allows you to easily configure and change the settings. The BIOS contains manufacture’s default settings for the computer’s standard operations.

  • Page 51: Info Setup

    Saves changes and reboots the Save and Exit computer. <Tab> Select a field Selects the next field. ↑ Select an item Selects the next upper item. Select an item Selects the next lower item. ↓ Lower value Selects the next value within a field. Higher value Selects the next value within a field.

  • Page 52: Main Setup

    Under this menu, you may change time/date and view basic processor and system memory information.

  • Page 59: Vga Utilities

    VGA Utilities You can click the touchpad or mouse right button and select the “Properties” item. Select the “Display Settings” option to enter its window display. Click on the “Advanced Settings” tab to enter “Generic PnP Monitor on Mobile Intel ® 4 Series Express Chipset Family” window display.

  • Page 68: Connection

    3G is the third generation of mobile phone standards and technology. 3G enable users a wide range of more advanced service while achieving greater network capacity through improved spectral efficiency.
  • Page 69 Press the hot key combination of Fn + F12 or click the 3G application icon to start executing the application. To disconnect, click on the “Disconnect” icon will exit the 3G application.
  • Page 70 Another way for 3G connection is by clicking on the “Menu” button. Select the “Setting” and click on the “Internet Connections” to enter the connection window display. Click on the “Add new Connection” in case you want to connect to other telecom company.

  • Page 72: Finger Printer Application

    Click on the Fingerprint icon located at the lower right end of the screen. It is recommended that you need to setup windows password for security reason. Click on the “Yes” button to continue. After you had set the “Username” and “Password”, click on the “OK”...
  • Page 73 Position your finger flat over the center of the sensor to achieve the best contact. Start swiping your finger smoothly and slowly from top to bottom with the fingertip press firmly as it pass the sensor. This would make the sensor read your fingertip clearly. Do not lift your finger as you swipe over the sensor..

  • Page 75: G Sensor

    The Always-Aware applications add new capabilities to the notebook by sensing notebook motion. The applications use an accelerometer within the notebook to detect motion. The applications include: protection of the system hard drive from harmful shocks and some limited protection of the notebook from theft.
  • Page 77 The Hard-Disk Drive (HDD) Protection application protects the notebook HDD from damage caused by sudden harmful notebook shocks. It monitors system movements that exceed the defined shock threshold. Once a shock is detected, the application instructs the HDD to temporarily park it’s heads which protects against potential damage the drive.
  • Page 78 The shortcut keys to enable this application are: L, B, C, D, T, 1, 2, 3, 4, 5 The Auto Rotate Screen feature allows display of the desktop to match the orientation of the notebook position. As the notebook is rotated the desktop orientation changes automatically.

  • Page 79: Enable /Disable Autor

    Select the context menu item labeled Enable or Disable to enable/disable the Auto Rotate Screen feature. The menu item will toggle between the Enable and Disable options depending on the current state.

  • Page 81: Troubleshooting

    Your computer has been fully tested and complies with the system specifications before shipping. However, incorrect operations and/or mishandling may cause problems. This chapter provides a reference for identifying and correcting common hardware and software problems that you may encounter. When you encounter a problem, you should first try to go through the recommendations in this chapter.

  • Page 82: N O Speaker Output

    Be sure all the device drivers are installed properly. For example, without the audio driver properly installed, the speakers and microphone will not work. If external devices such as USB camera, scanner, printer do not function correctly when connected to the system, it is usually the device’s own problem.

  • Page 83: The Hard Drive Is Making Abnormal Whining Noises

    Click Options and select Properties. Select Recording and click the OK button. After Click OK button, the recording volume control panel will appear. Go to [Start > Settings > Control Panel] and double-click the Multimedia icon (or Sounds and Audio Devices icon). In the Volume or Audio page, make sure that the audio codec mentioned in the spec is the default recording device.

  • Page 84: The Hard Disk Takes Longer To Read A File

    Many browsers store files in the hard drive as a cache to speed up the performance. Check the program’s Online Help for instructions on decreasing the cache size or on removing temporary Internet files. Empty the Recycle Bin to create more disk space. When you delete files, Windows saves them to the Recycle Bin.

  • Page 85: The Built - In Touch Pad Performs Erratically

    Make sure there is no excess perspiration or humidity on your hand when using the touch pad. Keep the surface of the touch pad clean and dry. Do not rest your palm or wrist on the surface of the touchpad while typing or using the touch pad.

  • Page 86: The Post Does Not Show An Increased Memory Capacity When

    Certain brands of memory module may not be compatible with your system. You should ask your vendor for a list of compatible DIMM. The memory module may be defective. This is often a software or Windows-related problem. A program is draining the memory resources. Close the application programs you’re not using and restart the system.

  • Page 87: Windows Crashes Or Freezes When You Remove The The Computer Becomes Hot

    Make sure you have <Stop> the PC card before removing it. Double-click the Safely Remove Hardware icon at the lower right corner of the task bar and select the card you wish to stop. When you click <Close>, in few seconds Windows will prompt you to remove the card.

  • Page 88: The Usb Device Does Not Work

    Check the settings in the Windows Control Panel. Make sure you have installed the necessary device drivers. Contact the device vendor for additional support. Detach the external device; insert it into the Enhanced USB port. Separate the cable with the equipment; first insert the wire into the port, then connect the device with the cable that is inserted into the Enhanced USB port.
  • Page 90 Supports Windows Vista Starter, Home Basic, Home Premium, Ultimate Intel Cantiga GS45+ICH9M (SFF) Supports Penryn Core2 Duo LV/SFF processor, SL9600, SL9400, SL9300 (Up to 2.13GHz), 6MB L2 Cache, 1066MHz FSB, TDP: 17 W Supports Penryn Single Core ULV/SFF processor, SU2700, SU3500, SU3300 (Up to 1.4GHz), 3MB L2 Cache, 800MHz FSB, TDP: 5.5 W Intel Cantiga GS40+ICH9M (SFF) Supports Penryn CULV 723/SFF processor, 723...
  • Page 91 Intel GS40 Realtek ALC888 Supports 10/100/1000 Mb/Sec. MII interface Supported by Mini Port Replicator as an optional item Half Mini Card type PCI-E interface Intel Shirley Peak 5300 (802.11 abgn) 3x3 Intel Echo Peak (802.11 abgn/WiMax) 1x2 WiMax support depends on AP’s availability party WLAN card BGN mode supported Support 1.3M &...
  • Page 92 Li-polymer Battery - 3 cell 3150mAH (3S1P), 34.96W, YOKU BMSPow type of T30-3S3150-B1Y1 Automatics Voltage adjustment between 100 and 240VAC 50/60Hz, 65 Watts., 2 Pin Delta type of ADP-65HB AD On board 2GB Turbo Memory Technology 2.0 support NAND flash and the Flash Cache Logic PCI Express interface LCD back light brightness and darkness auto adjustment (0~7 Level )
  • Page 93 CE, R&TTE report/document, FCC CCC/ETL CE, FCC, CCC From your accessories, align suppression core on the cable of your Port Replicator as shown on the illustration. Snap it on the cable and close...
