PRESET/TUNING El>
Selects preset station number 1 to 8 when the colon (:) appears on
the left of the band indication ("FM" or "AM") on the front panel
display, and selects the tuning frequency when the colon (:) does not
appear.
_) BALANCE
Controls the balance of the sound levels coming from the left and
right main speaker(s). Setting this control to the center position is
appropriate for most situations.
_} PRESET/TUNING EDIT
Switches the function of PRESET/TUNING <_/> (the colon (:)
turns on or off) between selecting a preset station number and
tuning.
This button is also used to exchange the assignment of two preset
stations with each other.
MEMORY (MAN'L/AUTO FM)
Stores a station in the memory. Hold down this button for more than
3 seconds to start automatic presetting stations.
_) TUNING MODE (AUTO/MAN'L MONO)
Switches the tuning mode between automatic and manual. To select
the automatic tuning mode, press this button so that the "AUTO"
indicator lights up on the front panel display. To select the manual
tuning mode, press this button so that the "AUTO" indicator does
not light up.
_) VOLUME
Controls the output level of all audio channels.
This does not affect the REC OUT level.
I_) BASS
Adjusts the low frequency response for the left and right main
speaker channels.
Turn the control to the right to increase the low frequency response
and turn the control to the left to decrease the low frequency
response.
VIDEO AUX
Inputs audio and video signals from a portable external source such
as a video camera.
_) REC OUT/ZONE 2
Selects the source you want to direct to the audio/video recorder and
ZONE 2 outputs independent of the source you are listening to in
the main room. When set to the SOURCE/REMOTE position, the
input source is directed to all outputs.

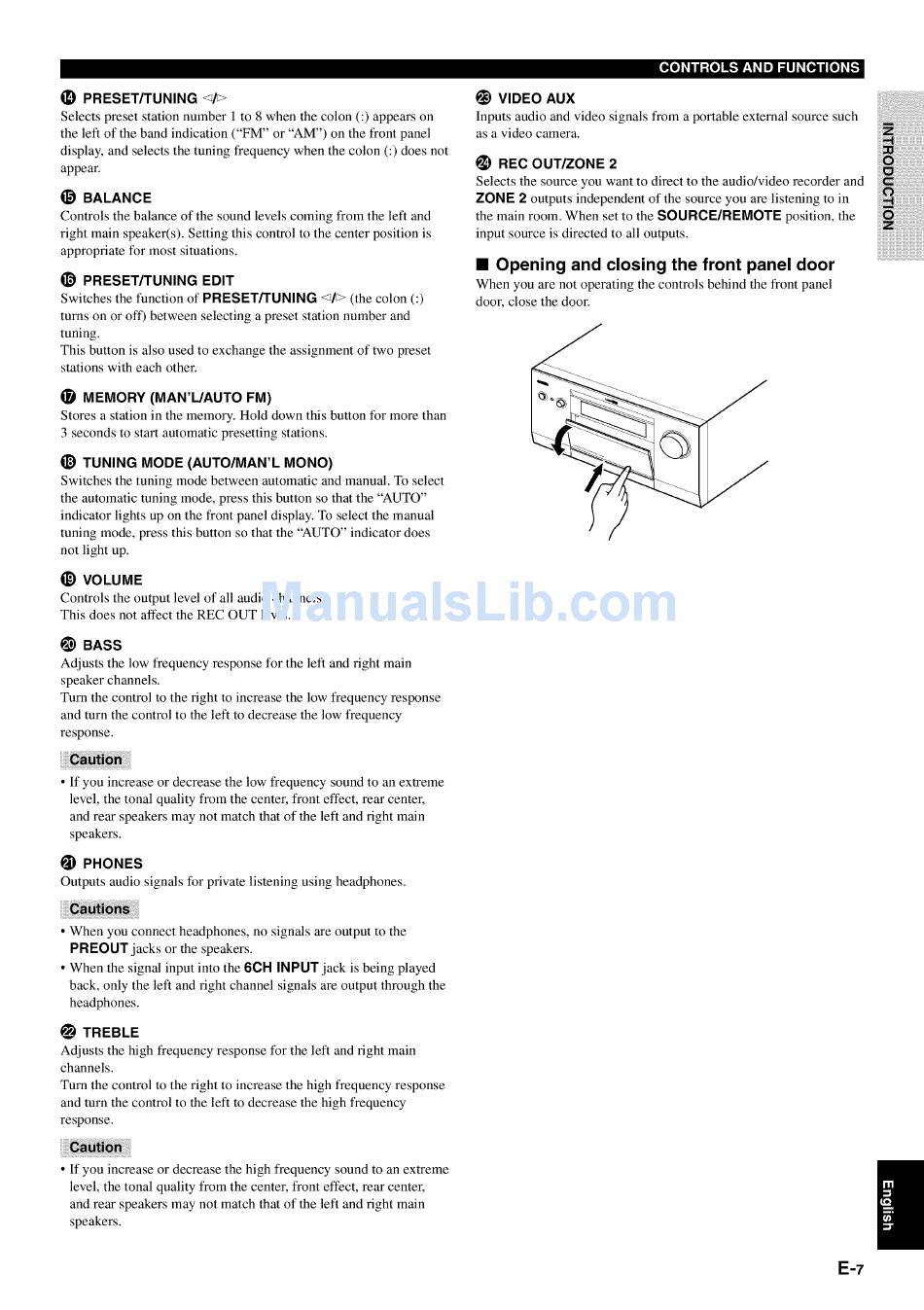

• Opening and closing the front panel door
When you are not operating the controls behind the front panel
door, close the door.
• If you increase
or decrease the low frequency sound to an extreme
level, the tonal quality from the center, front effect, rear center,
and rear speakers may not match that of the left and right main
speakers.
PHONES
Outputs audio signals for private listening using headphones.
• When you connect headphones, no signals are output to the
PREOUT
jacks or the speakers.
• When the signal input into the 6CH INPUT jack is being played
back, only the left and right channel signals are output through the
headphones.
TREBLE
Adjusts the high frequency response for the left and right main
channels.
Turn the control to the right to increase the high frequency response
and turn the control to the left to decrease the high frequency
response.
• If you increase or decrease the high frequency sound to an extreme
level, the tonal quality from the center, front effect, rear center,
and rear speakers may not match that of the left and right main
speakers.
E-7
