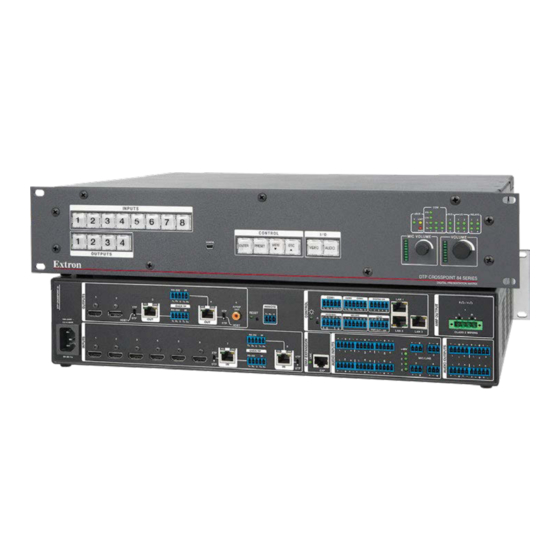

- Page 1 Setup Guide Matrix Switchers DTP CrossPoint 84 Scaling Presentation Matrix Switchers with DTP Extension IMPORTANT: IMPORTANT: Refer to www.extron.com for the complete user guide, installation instructions, and specifications before connecting the product to the power source. 68-2349-50 Rev. F 06 22...
- Page 2 Safety Instructions Safety Instructions • English WARNING: This symbol, , when used on the product, is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock. ATTENTION: This symbol, , when used on the product, is intended...
- Page 3 Copyright © 2014-2022 Extron. All rights reserved. www.extron.com Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks ( ® ), registered service marks ( ), and trademarks ( ) are the property of RGB Systems, Inc. or Extron (see the current list of trademarks on the Terms of Use page at www.extron.com):...
- Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 5 Conventions Used in this Guide Notifications The following notifications are used in this guide: ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. A tip provides a suggestion to make working with the application easier. TIP: Software Commands Commands are written in the fonts shown here:...
-
Page 7: Table Of Contents
Contents Introduction ..........1 Remote Control ........16 About this Guide ..........1 Selected SIS Commands........16 About the DTP CrossPoint Matrix Switchers ..1 Establishing a Network (Ethernet) Connection ........... 16 DTP Input and Output Signals ......3 Number of Connections ......... 17 Establishing a USB Port Connection .... - Page 8 Technical Publications Standards and Styles • Contents viii...
-
Page 9: Introduction
DTP CrossPoint 84 IPCP SA — Includes a stereo audio amplifier and a built-in Extron IPCP Pro 350 control processor DTP CrossPoint 84 IPCP MA 70 — Includes a 70 V mono audio amplifier and a built- • in Extron IPCP Pro 350 control processor... - Page 10 The matrix switcher can be remotely controlled via an Ethernet LAN port, a serial port, or a USB port connection using either the Extron Product Configuration Software, DSP Configurator software, or the Simple Instruction Set (SIS). DTP CrossPoint 84 • Introduction...
-
Page 11: Dtp Input And Output Signals
Depending on the technology of the transmitting or receiving device, DTP 330 or DTP 230, the TP inputs and outputs can travel up to 330 feet (100 meters) or 230 feet (70 meters) without a loss of signal integrity. DTP CrossPoint 84 • Introduction... -
Page 12: Installation
OVER TP MIC/LINE RS-232 Tx Rx Tx Rx 50-60 Hz Figure 2. DTP CrossPoint 84 Switcher Rear Panel ATTENTION: • Remove system power before making all connections. • Débranchez l’alimentation du système avant de faire n’importe quelle connexion. NOTES: *Actual models can have either Q or R , but not both. Models with R also have •... -
Page 13: Video Inputs And Outputs
DTP position — Select if the receiving device is an Extron DTP device. The TP output is compatible with a DTP receiving device and consists of HDMI with embedded audio, analog audio, RS-232 and IR, and remote power. DTP CrossPoint 84 • Installation... -
Page 14: Audio Inputs And Outputs
Expansion Port — Plug an STP cable between this port and the Expansion port on an optional Extron DMP 128 ProDSP Digital Matrix Processor. Link LED — Lights to indicate that the port is connected to a compatible device. DTP CrossPoint 84 • Installation... -
Page 15: Serial And Ir Insertion Connections
See the DTP CrossPoint 84 Series User Guide, available at www.extron.com. Power Power connector — Plug the switcher into a grounded AC source. -
Page 16: Additional Connector Information
LAN ports — Unshielded twisted pair (UTP) or STP for connection of the LAN port • to an Ethernet LAN. Crossover cable (see figure 7) — • • LAN ports — UTP or STP for direct connection between the DTP CrossPoint 84 matrix switcher and a connected computer. DTP CrossPoint 84 • Installation... - Page 17 LAN or Power over Ethernet port; equipment damage can occur. • Connectez ce port au port d’expansion sur un processeur DMP d’Extron compatible. Ne connectez ce port à un port LAN ou d’alimentation via Ethernet ; le matériel pourrait être endommagé. DTP CrossPoint 84 • Installation...
- Page 18 Do not comb the cable for the first 20 meters, where cables are straightened, aligned, and secured in tight bundles. • Loosely place cables and limit the use of tie wraps or hook and loop fasteners. • isted pair cables from AC power cables. Separate tw DTP CrossPoint 84 • Installation...
- Page 19 RS-232 Device RS-232 Device Rx Tx Tx/Rx Pins Tx Rx IR Device Figure 9. RS-232 and IR Connector Wiring length of exposed wires is important (see the audio connectors NOTES NOTE: page 13 for more information). DTP CrossPoint 84 • Installation...
-
Page 20: Front Panel
NOTE: A front panel Configuration port connection and a rear panel Remote port connection can both be active at the same time. If commands are sent simultaneously to both, the command that reaches the processor first is handled first. DTP CrossPoint 84 • Installation... -
Page 21: Front Panel Operations
Amber indicates video and audio tie. Green indicates video only tie. Red indicates audio only tie. Green indicates the need ENTER to confirm the change. Press and release the Enter button. All button indicators turn off. DTP CrossPoint 84 • Front Panel Operations... -
Page 22: Recalling A Preset
Lock mode 1 — All functions are locked from the front panel (except for setting Lock • mode 2). Some functions can be viewed. • Lock mode 2 — Basic functions are unlocked. Advanced functions are locked and can be viewed only. DTP CrossPoint 84 • Front Panel Operations... -
Page 23: Selecting Lock Mode 2 Or Toggling Between Mode 2 And Mode 0
2 seconds. Lock mode 1 Lock mode 2 CONTROL VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO ENTER PRESET VIEW VIDEO AUDIO Press and hold Press and hold for 2 seconds. for 2 seconds. DTP CrossPoint 84 • Front Panel Operations... -
Page 24: Remote Control
If the switcher is password-protected, a password prompt appears. If necessary, enter the appropriate password. If the password is accepted, the switcher responds with Login User or Login • Administrator. If the password is not accepted, the Password prompt reappears. • DTP CrossPoint 84 • Remote Control... -
Page 25: Number Of Connections
A string is one or more characters. NOTE: The tables that begin on the next page are a partial list of SIS commands. For a complete listing, see the DTP CrossPoint 84 Series User Guide. Common SIS Command Symbols... -
Page 26: Sis Command And Response Table For Matrix Switcher Commands
2 = Monitor connected, supports HDCP, but the video signal is not encrypted 7 = Monitor connected, supports HDCP, and the video signal is encrypted X^ = HDCP-authorized device 0 = off 1 = on (default) DTP CrossPoint 84 • Remote Control... - Page 27 = HDMI (de-embedded digital audio) (default) Group master level (volume and mute) NOTES: • The DTP CrossPoint 84 has 16 configurable group masters. • By factory default, group 1 controls the program volume and group 2 controls the mic volume. •...
-
Page 28: Installing And Starting The Control Programs
It also provides some limited control of the non-DSP functions of the switcher. See the DTP Crosspoint 84 User Guide and the program Help file for more information. Run either program from a PC connected to an... -
Page 29: Starting The Product Configuration Software
) and click Connect ( The default IP address is 192.168.254.254 NOTE: The Product Configuration Software opens. Operate the program as described in the DTP CrossPoint 84 User Guide, available at www.extron.com, and the built-in Help file. DTP CrossPoint 84 • Remote Control... -
Page 30: Starting The Dsp Configurator Program
NOTE: Configurator program. Start the DSP Configurator program, as follows: Click Start > Programs > Extron Electronics > DSP Configurator > DSP Configurator. The DSP Configurator startup screen displays (see figure 14). 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 Figure 15. - Page 31 PC and not sent to the switcher until you select Live mode and "push' the settings to the switcher. See the DTP CrossPoint 84 Switcher User Guide. * This output 1 amplifier block is not present on non-IPCP models.
-
Page 32: Accessing The Html Pages
OK. • For details on operating the switcher via HTML pages, see the "HTML Operation" section in the DTP CrossPoint 84 User Guide. Start the web browser program. NOTE: For best results, Extron recommends the following browsers and compatibility mode: •... - Page 33 Figure 18. HTML Startup Page DTP CrossPoint 84 • Remote Control...
- Page 34 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
